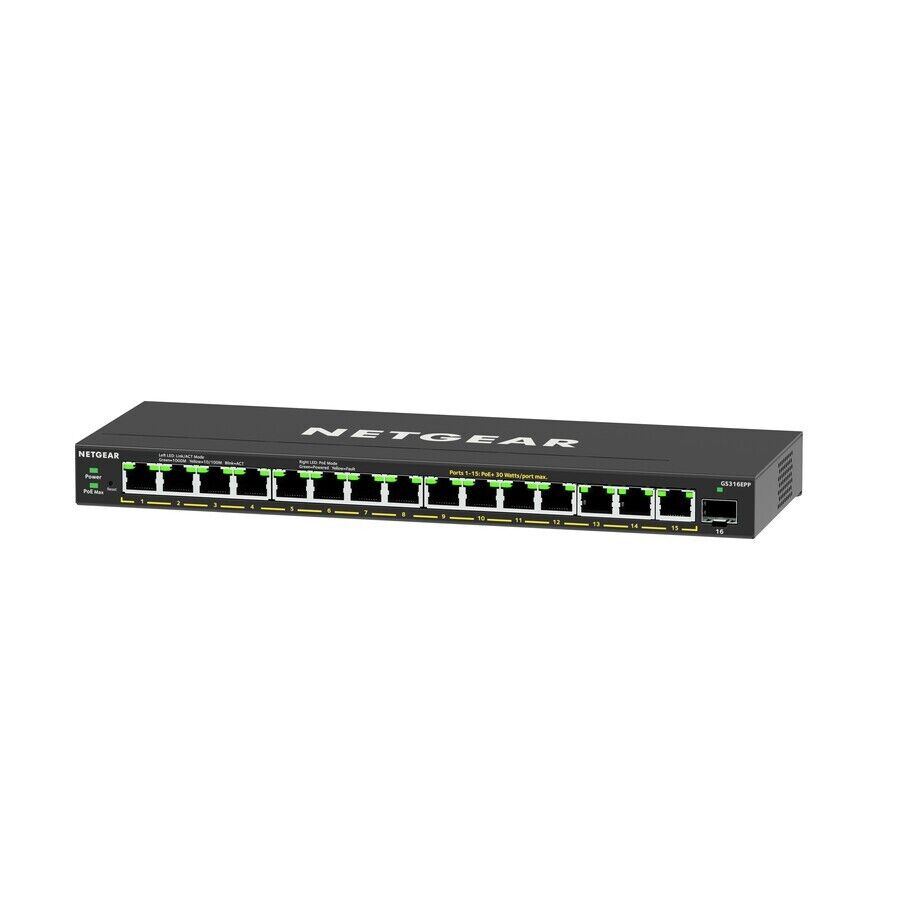

Netgear GS316EPP-100NAS 16-Port High-Power PoE+ Gigabit Ethernet Plus Switch

* (231W) with 1 SFP Port; 15 Ports - Manageable - 3 Layer Supported - Modular - 1 SFP Slots - 231 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Wall Mountable - 5 YearLifetime Limited Warranty

General Information

Manufacturer:   Netgear, Inc

Manufacturer Part Number:   GS316EPP-100NAS

Brand Name:   Netgear

Product Series:   300

Product Model:   GS316EPP

Product Name:   16-Port High-Power PoE+ Gigabit Ethernet Plus Switch (231W) with 1 SFP Port

Marketing Information:

NETGEAR Plus Switches with PoE meets business networks growing need by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plugand-play unmanaged switch, delivering essential networking features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other applications. These new PoE+ Gigabit Ethernet Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-inone solution, providing management and power to these applications would be ideal.

Highlights

Enable network configuration and management at the price point of unmanaged switches

Simple, yet useful network set-up on top of plug-and-play connectivity

Business-friendly and easy-to-use web browser-based management GUI

VLAN support for traffic segmentation

Quality of Service (QoS) for traffic prioritization

Auto "denial-of-service" (DoS) prevention

Troubleshoot connection issues via cable test

Loop prevention, loop detection, and broadcast storm controls

Rate limiting for better bandwidth allocation

Port mirroring for network monitoring

Jumbo frame support

Advanced features such as per port PoE controls

Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot.

802.3at standard offering 30W/port

Fanless and versatile mounting option (desktop and wall-mountable)

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   15

Modular:   Yes

Port/Expansion Slot Details:   1 x Gigabit Ethernet Expansion Slot

Port/Expansion Slot Details:   15 x Gigabit Ethernet HPoE+

Media & Performance

Media Type Supported:   Twisted Pair

Ethernet Technology:   Gigabit Ethernet

Network Technology:   10/100/1000Base-T

Network Technology:   1000Base-X

I/O Expansions

Number of Total Expansion Slots:   1

Expansion Slot Type:   SFP (mini-GBIC)

Number of SFP Slots:   1

Network & Communication

Layer Supported:   3

Management & Protocols

Manageable:   Yes

Power Description

PoE (RJ-45) Port:   Yes

PoE Budget:   231 W

Power Source:   Power Adapter

Physical Characteristics

Form Factor:   Desktop

Form Factor:   Wall Mountable

Height:   1.1"

Width:   11.3"

Depth:   4"

Weight (Approximate):   1.95 lb

Miscellaneous

Package Contents:

16-Port High-Power PoE+ Gigabit Ethernet Plus Switch (231W) with 1 SFP Port

Power Adapter (Power Cable Varies by Region)

Wall Installation Kit

Rubber Feet

Installation Guide

Environmentally Friendly:   Yes

Environmental Certification:   ErP

Environmental Certification:   REACH

Environmental Certification:   RoHS

Environmental Certification:   WEEE

Country of Origin:   Thailand

Warranty

Limited Warranty:   5 Year Lifetime - Direct from the Manufacturer
