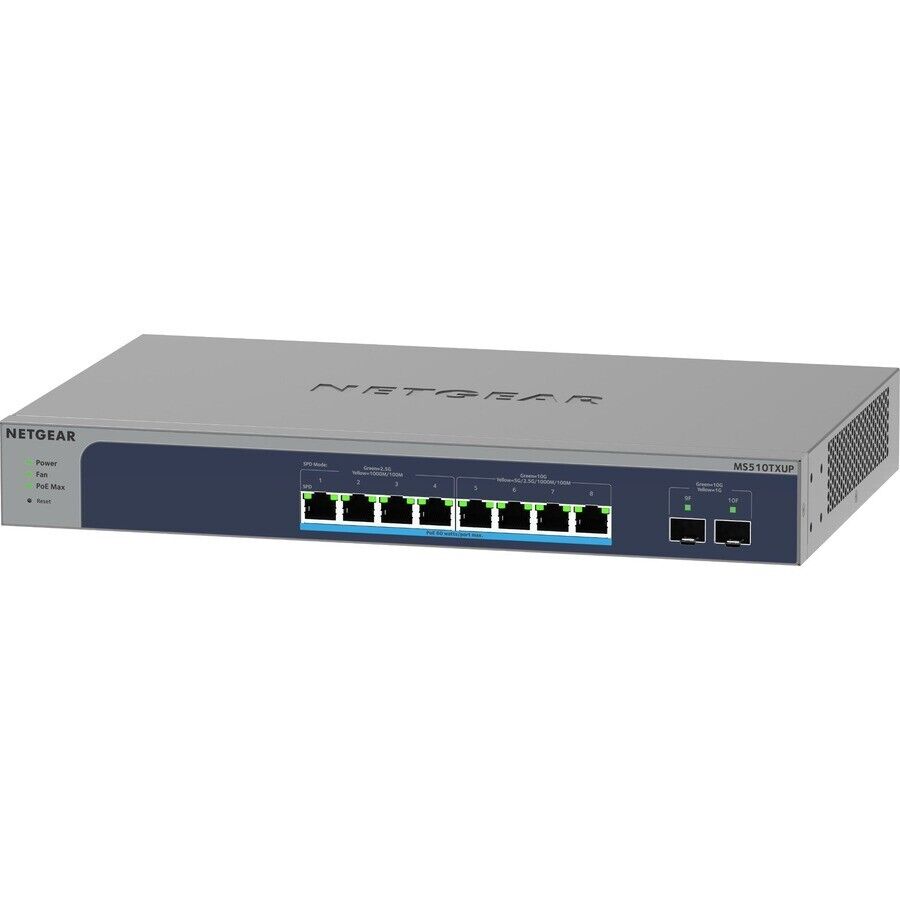

Netgear MS510TXUP-100NAS 8 Port Ultra60 4x2.5G 4x10G 2x PoE 10G SFP Smart Switch

General Information

• Manufacturer: Netgear, Inc
• Manufacturer Part Number: MS510TXUP-100NAS
• Brand Name: Netgear
• Product Model: MS510TXUP
• Product Name: MS510TXUP Ethernet Switch

Marketing Information:

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of speed and power that can support the business's needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for WiFi 6 Access Points now imply the need for faster speeds in the network.

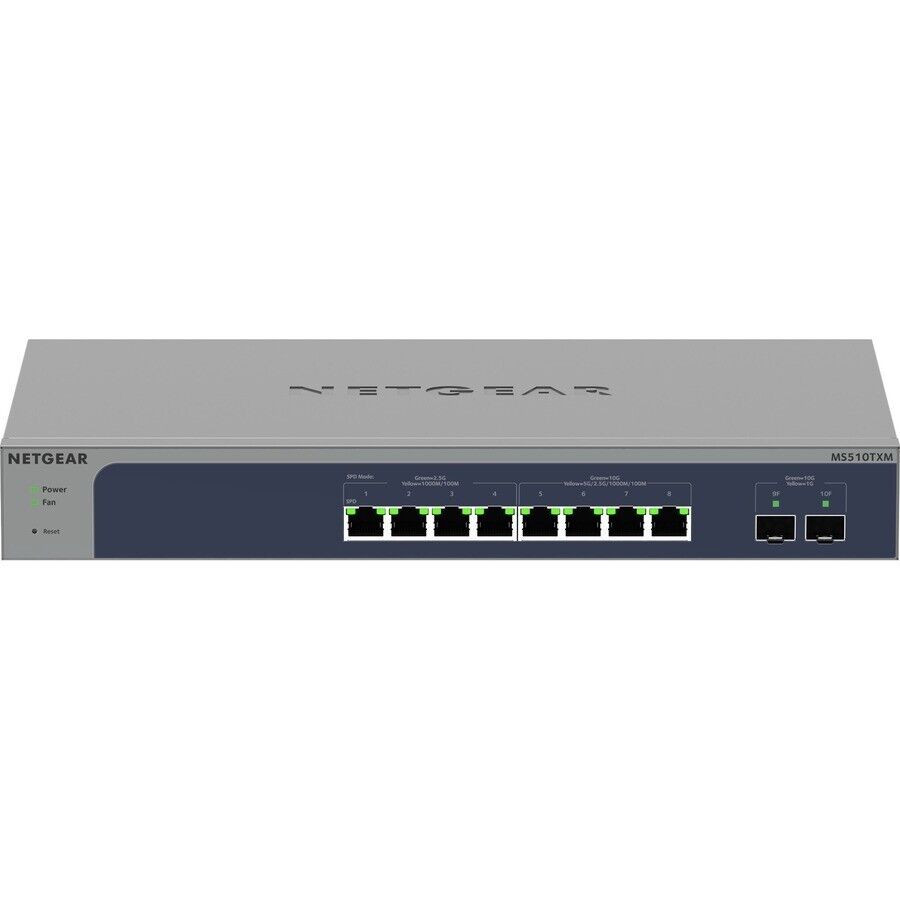

The MS510TXM and MS510TXUP 8-Port Multi-gig/10G switches with 2 SFP+ Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding multi-gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support (295W total PoE budget for MS510TXUP) for deploying devices with multi-gig capabilities and speed, such as WiFi 6 Access Points (eg. WAX610 from NETGEAR), multi-gig or 10G NAS.

NETGEAR Smart Managed Pro Switches offer powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion.Furthermore, in 2.5G or 5G speeds, there is no requirement to upgrade your cabling from Cat5E, allowing for savings in installation costs.

To empower the Wireless and PoE applications, NETGEAR Insight Remote/ Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.

Highlights

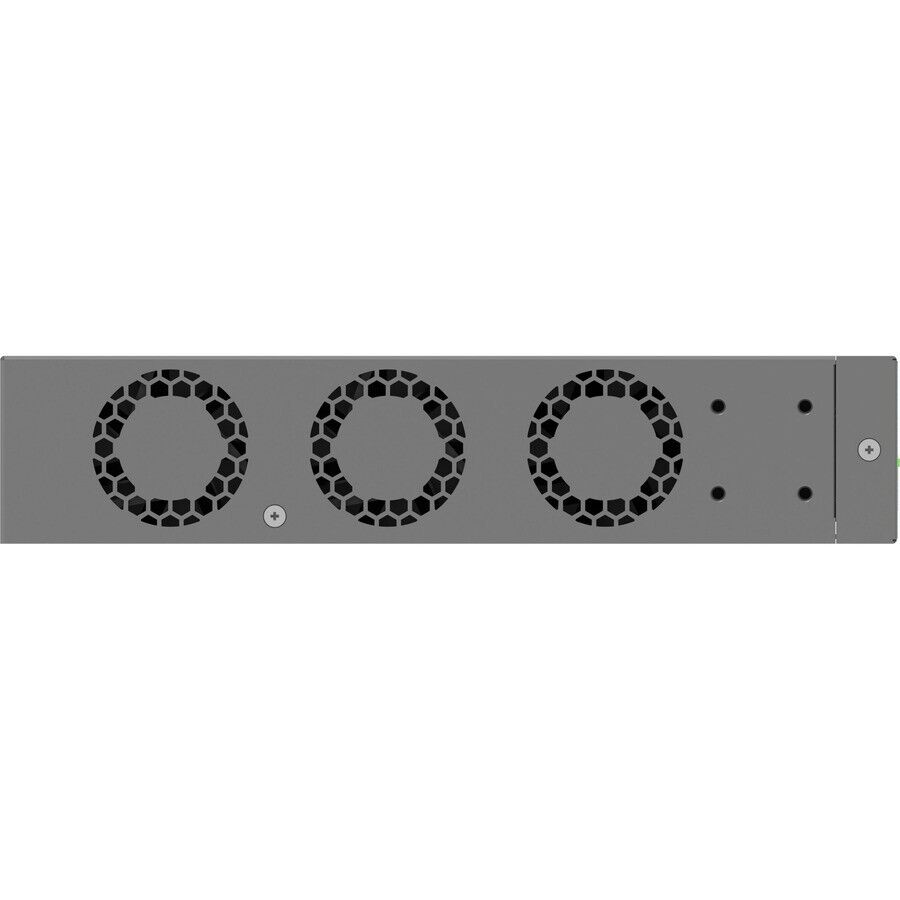

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise, ideal for office enviornment. The MS510TXM and MS510TXUP support quiet rack mounting operation with a maximum of 25dB (MS510TXM) and 33 dBA (MS510TXUP) even at full power and 25°C (77°F) ambient.

More Powerful Switch with Multi-gigabit/10G Speed

·         4 x 1G/2.5G ports and 4 x multigig/10G ports

·         8 x Ultra60 PoE++ ports with 295W PoE budget (MS510TXUP only)

·         2 dedicated 10G SFP+ fiber uplink ports

Fast and flexible solution for SMB data, voice and video converged network

·         Non-blocking switching with 140Gbps bandwidth

·         Flexible rack-mounting option

Ideal companion to your NETGEAR WAX610

·         Connect and power your WAX610 with MS510TXUP

·         Connect your WAX610PA with MS510TXM

·         Manage all devices from a single dashboard with NETGEAR Insight

Powerful Connectivity and Security

·         Advanced VLAN support for better network segmentation

·         L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication

·         Advanced per port PoE controls for remote power management of PoE powered devices including operation scheduling

·         Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCP based

·         Auto "denial-of-service" (DoS) prevention

·         IGMP Snooping and Querier for multicast optimization

·         Egress Rate limiting and priority queuing for better bandwidth allocation

·         Port mirroring for network monitoring

·         Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings

·         IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment

Product Type: Ethernet Switch

Interfaces/Ports

• Total Number of Network Ports: 8
• Uplink Port: Yes
• Modular: Yes

Port/Expansion Slot Details:

·         4 x 2.5 Gigabit Ethernet PoE++

·         4 x 10 Gigabit Ethernet PoE++

·         2 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

·         Twisted Pair

·         Optical Fiber

Ethernet Technology:

·         2.5 Gigabit Ethernet

·         10 Gigabit Ethernet

Network Technology:

·         1000Base-T

·         1000Base-X

I/O Expansions

• Number of Total Expansion Slots: 2
• Expansion Slot Type: SFP+
• Number of SFP+ Slots: 2

Network & Communication

• Layer Supported: 3

Management & Protocols

• Manageable: Yes

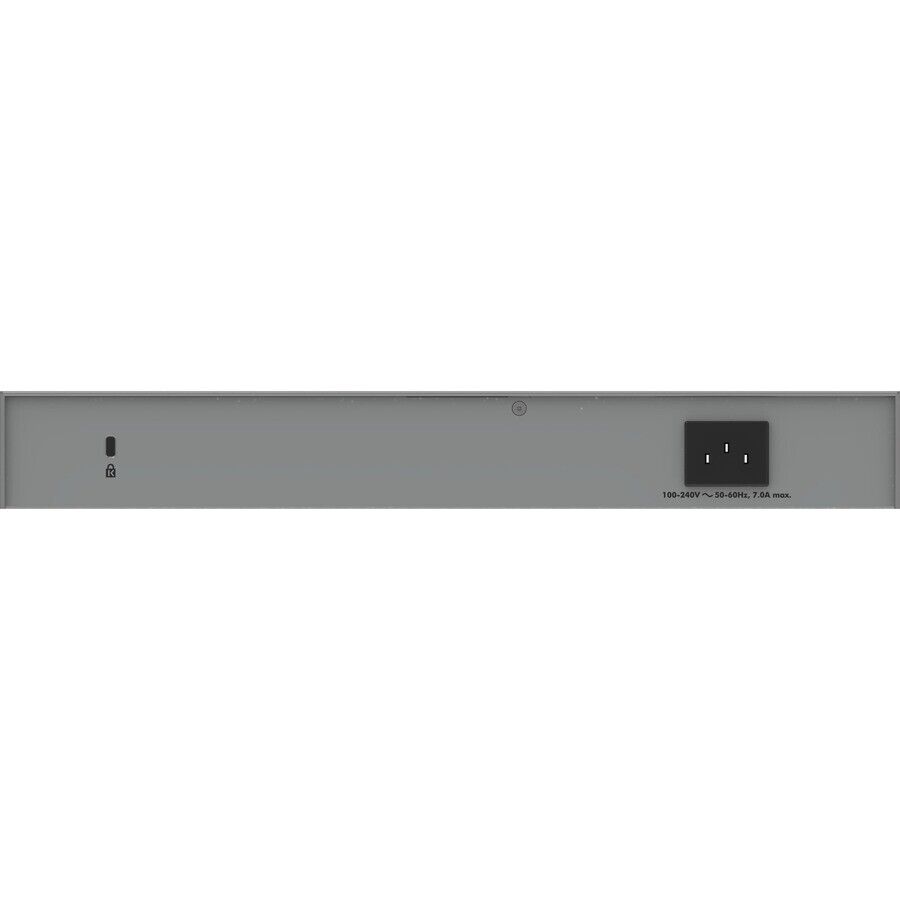

Power Description

• PoE (RJ-45) Port: Yes
• PoE Budget: 295 W
• Power Source: Power Supply
• Number of Power Supplies Installed: 1
• Power Consumption: 380 W

Physical Characteristics

Form Factor:

·         Rack-mountable

·         Desktop

• Height: 1.7"
• Width: 13"
• Depth: 8.1"
• Weight (Approximate): 5.53 lb

Miscellaneous

Package Contents:

·         MS510TXUP Ethernet Switch

·         Power Cord

·         Mounting Kit

·         Rubber Footpads For Tabletop Installation

·         Quick Installation Guide

• Country of Origin: Thailand
• Environmentally Friendly: Yes
• Environmental Certification:
• China Environmental United Certification Center (CEC)

Warranty

• Limited Warranty: Lifetime – Direct from the Manufacturer
