NZXT RF-P14SF-W2 Fan - F140P 140mm Static Pressure Fans Single Pack White Retail

Marketing Information

Overview

• NZXT Static Pressure Fans deliver strong airflow in tight spaces, like radiators and heatsinks. With optimized blades, chamfered frame, and fluid dynamic bearings, they offer high-performance, low-noise cooling.
• Seven thick blades are designed for high static pressure so air can be pushed through tight spaces, ideal for mounting on radiators and heatsinks.
• Minimal gap between blade edges and frame maximizes the spinning area for higher airflow volume and efficiency.
• Chamfered frame design directs air in a powerful concentrated flow pattern, traveling far into the case to cool vital components.
• Fluid dynamic bearings provide unwavering stability, low-noise operation, and a 60,000-hour lifespan.
• PWM control dynamically adjusts fan speed for higher output or lower noise based on system temperatures for efficient cooling.
• Sturdy frame with rubberized corners absorbs vibrations for low-noise operation, even at high speeds.
• High Static Pressure
• Pressure-optimized blades force air through tight spaces like radiators and heatsinks.
• Efficient Airflow
• Minimal blade-to-frame gap maximizes the spinning area for optimal performance.
• Powerful Cooling
• Chamfered frame directs air in a concentrated pattern that travels far into the case.
• Low Noise, Long Lasting
• Fluid dynamic bearings ensure quiet operation with a 60,000-hour lifespan.
• Speed Regulation
• PWM control adjusts speed based on system temperatures for efficient, quiet cooling.
• Silent & Stable
• Sturdy frame and rubberized corners absorb vibration noise.

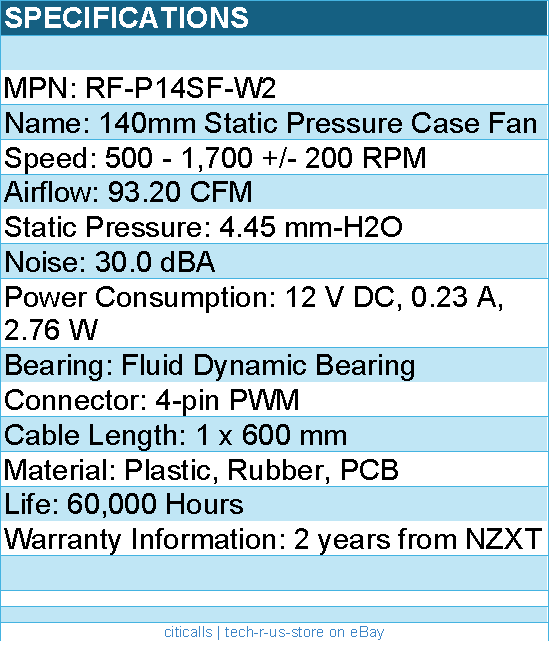

Detail Specifications

• Speed: 500 - 1,700 +/- 200 RPM
• Airflow: 93.20 CFM
• Static Pressure: 4.45 mm-H2O
• Noise: 30.0 dBA
• Power Consumption: 12 V DC, 0.23 A, 2.76 W
• Bearing: Fluid Dynamic Bearing
• Connector: 4-pin PWM
• Cable Length: 1 x 600 mm
• Material: Plastic, Rubber, PCB
• Life: 60,000 Hours

Warranty Information

• 2 years from NZXT
