Vendor: OpenVox

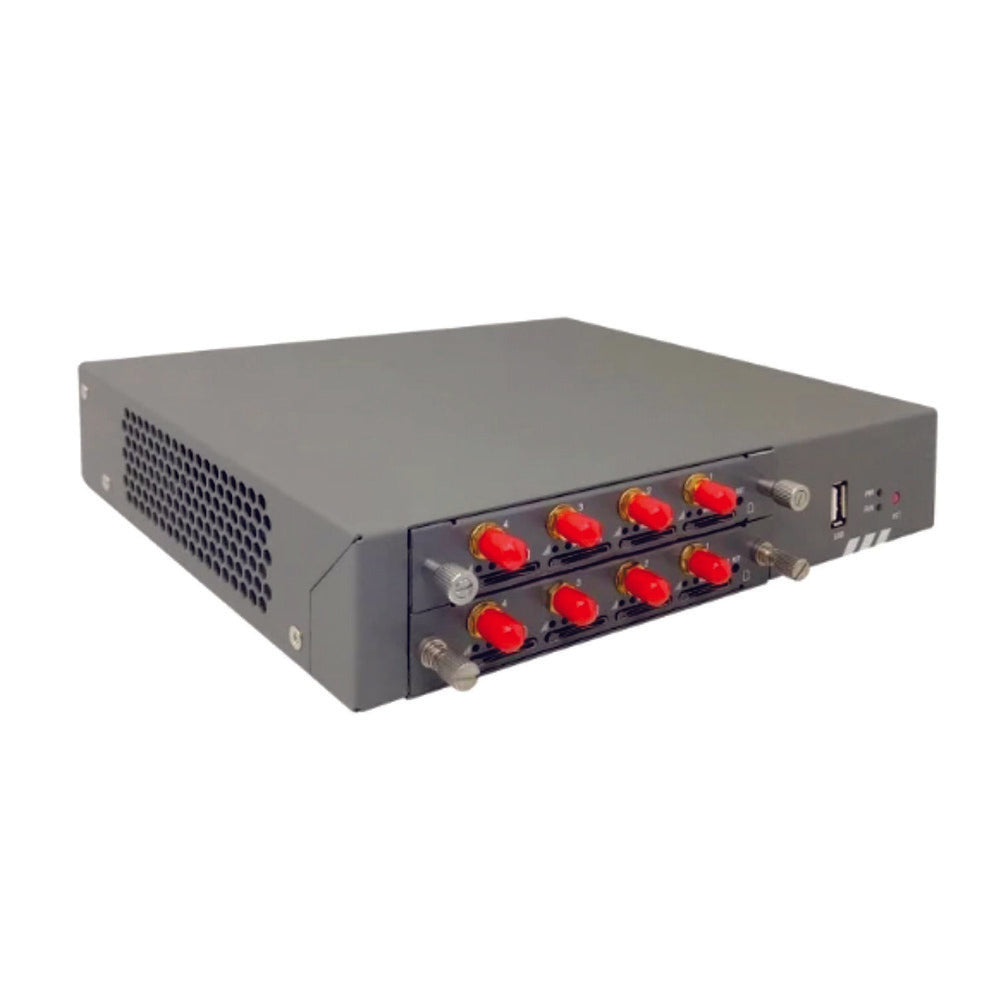

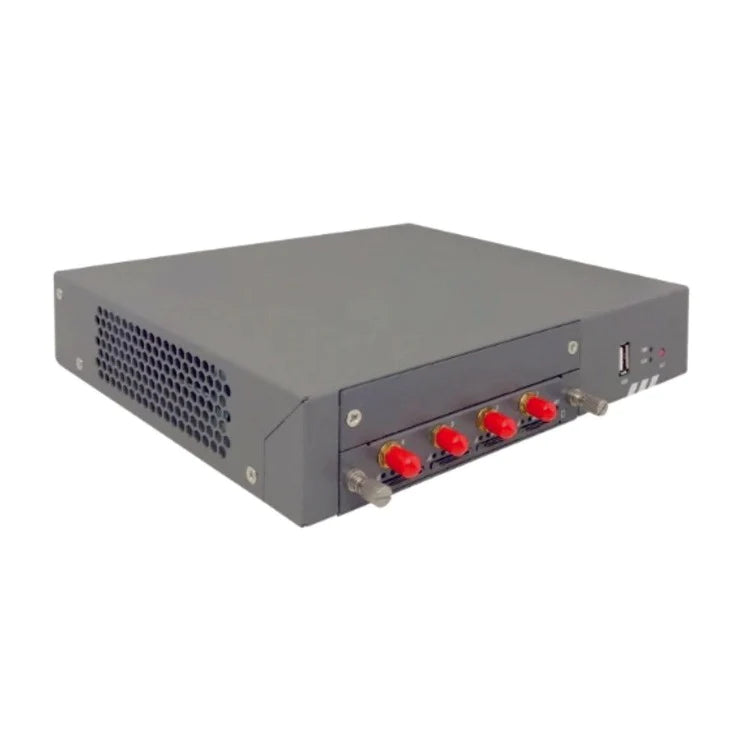

OpenVox GW1202 V2 Desktop Gateway for 2G 3G 4G LTE Band up to 8 Wireless Channels

SKU: GW1202V2-0
Regular price $116.16 Sale price $116.16 Regular price $132.00
Save $15.84 $15.84 ($15.84)
Shipping calculated at checkout.

Orders received by 10 am are shipped on the same business day. Mondays through Saturday.

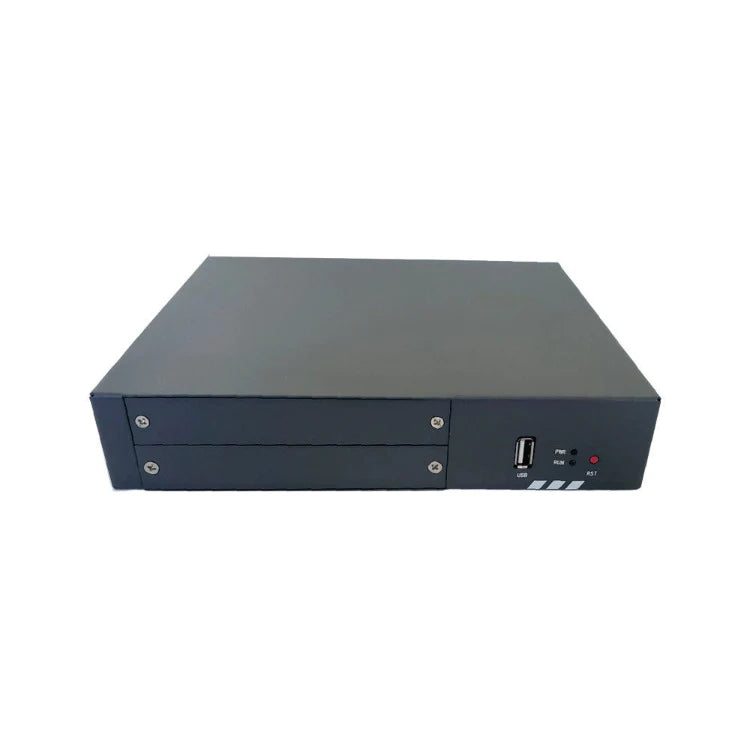

GW1202V2 Desktop Series Chassis Only - No Modules
In stock: 5
Description

GW1202 V2 Desktop Gateway for 2G 3G 4G LTE Band up to 8 Channels

📃

MORE PRODUCT INFORMATION

The OpenVox GW1202v2 Wireless Gateway Series comes with very user-friendly GUI for easy configuration. The hardware is designed with flexibility and expandability in mind. This allows users to easily set the gateway for use with any wireless or analog modules.

The GW1202 V2 is an upgraded V2 of the original GW1202 and SWG2008.  It features the same body metal case chassis and uses the same slot design to easily expand or move modules.

The variations for North America GWM420L-AF and the GWM420L-AU which covers most of Central and South America, Australia and New Zealand are available for shipping from our California warehouse. All other variations are shipped by our China head office.  Please note that the 4G LTE Frequency for each country is set differently.  For any questions call our USA line at 844-OPEN-VOX (844-673-6869) if you have any questions.

The OpenVox GW1202v2, GW1600v2, GW2120v2 Wireless Gateway series is developed for interconnecting a wide a selection of codecs, including G.711A, G.711U, G.729, G.722, G.723, G.726 & GSM, CDMA to the 4G LTE networks to easily reduce telecommunication expense and maximize cost-savings.

With the unique design of the OpenVox Wireless Gateway, comes easy hot swapping for the SIM cards in any of the installed modules. Users can also add or remove the modules for hardware expansion. Each 4G LTE module runs an independent asterisk system built into. The Wireless gateways comes with a LAN ethernet switch board that provides scalability for easy hardware upgrade.

The OpenVox Gateways support SMS messages sending and receiving individually or by grouping. This also fully support SMS to email. The Wireless Gateway use standard SIP protocol and compatible with the leading IMS/NGN platform, IPPBX and SIP servers, fully supports the VoIP operating platforms such as Asterisk, Elastix, FreePBX, 3CX BroadSoft and FreeSWITCH.

Features:
  • Simple and convenient configuration via Web GUI
  • Support http / https / SSH
  • Basic security strategy (white/blacklist, security rules)
  • Optional GSM Voice Codec
  • Codecs support:
  1. G.711A
  2. G.711U
  3. G.729
  4. G.723.1
  5. G.722
  6. G.726
  7. GSM
  • SIP (RFC3261) Compliance
  • Support diverse SIP, IAX2 protocols.
  • Multiple SIP/IAX2 Registration models: None, server, client
  • DTMF Signaling support: RFC2833, Inband, SIPINFO
  • Real Open API Protocol (based on Asterisk)
  • Support static IP and DHCP
  • Call Duration Limit
  • CLIR (Call Line Identification Restriction)
  • Call Waiting
  • Call Forwarding (unconditional, no reply, busy, not reachable)
  • SMSC/SMS/USSD
  • SMS bulk transceiver, SMS automatically resend, Sent to Email
  • Support HTTP SMS interface
  • SMS Forwarding
  • USSD transceiver
  • SMS remotely controlling gateway.
  • IMEI number automatic modification
  • PIN identification
  • Mobile number portability (MNP)
  • Flexible routing settings & unlimited routing rules
  • Support DISA
  • Extensible Automatic Callback and Speed Dial
  • Customizable IVR
  • CDR (More than 200,000 Lines CDRs Storage Locally)
  • Support configuration files backup and upload
  • Support for custom scripts, dial plans
  • Least Cost Routing (LCR), according to Time, Port, Calling Number
  • Independent System for Each Module
  • Affordable Price with Superior Performance
  • Hot-swap Design for both Sim cards and Modules
  • Compatible with sip server, such as: Asterisk, Elastix, 3CX,

Software & Platform:

  • Asterisk / Linux

Technical Specifications:
  • 4 to 44 GSM/WCDMA/LTE Channels Model Guide
  1. Model GW1202v2 Series, 4 to 8 Channels
  2. Model GW1600v2 Series, 4 to 20 Channels
  3. Model GW2120v2 Series, 4 to 44 Channels
  • 1 SIM card per GSM/WCDMA/LTE Channel Hot-Swappable
  • 10/100M LAN interfaces
  • Up to 8 Standard SMA-K interfaces
  • Storage temperature range: -20~70℃
  • Operation temperature range: 0~40℃
  • Operation humidity range: 10%~90% non-condensing
  • Power source: 12V DC/2A 120-240V
  • Dimension:
  1. GW1202v2: 6" x 7.5" x 1.7"
  2. GW1600v2: 17.3" x 11.8" x 1.8"
  3. GW2120v2: 19.1" x 13.1" x 3.5"
  • Weight (without the modules)
  1. GW1202v2: 4 Pounds
  2. GW1600v2: 12 Pounds
  3. GW2120v2: 18 Pounds

LTE Operating Frequency Range

  • GWM420L-AF North America- (Available in California)
    LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
    WCDMA: B2/B4/B5
  • GWM420-AU Australia/New Zealand/Taiwan/Brazil - (Available in California)
  1. LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
  2. LTE TDD: B40
  3. WCDMA: B1/B2/B5/B8
  4. GSM: B2/B3/B5/B8
  • GWM420L-CN China/India: - (Ships directly from Factory)
  1. LTE FDD: B1/B3/B5/B8
  2. LTE TDD: B38/B39/B40/B41
  3. WCDMA: B1/B8
  4. TD-SCDMA: B34/B39
  5. CDMA: BC0
  6. GSM: 900/1800MHz
  • GWM420L-EM EMEA/Korea/Thailand - (Ships directly from Factory)
  1. LTE FDD: B1/B3/B5/B7/B8/B20
  2. LTE TDD: B38/B40/B41
  3. WCDMA: B1/B5/B8
  4. GSM: B3/B8
