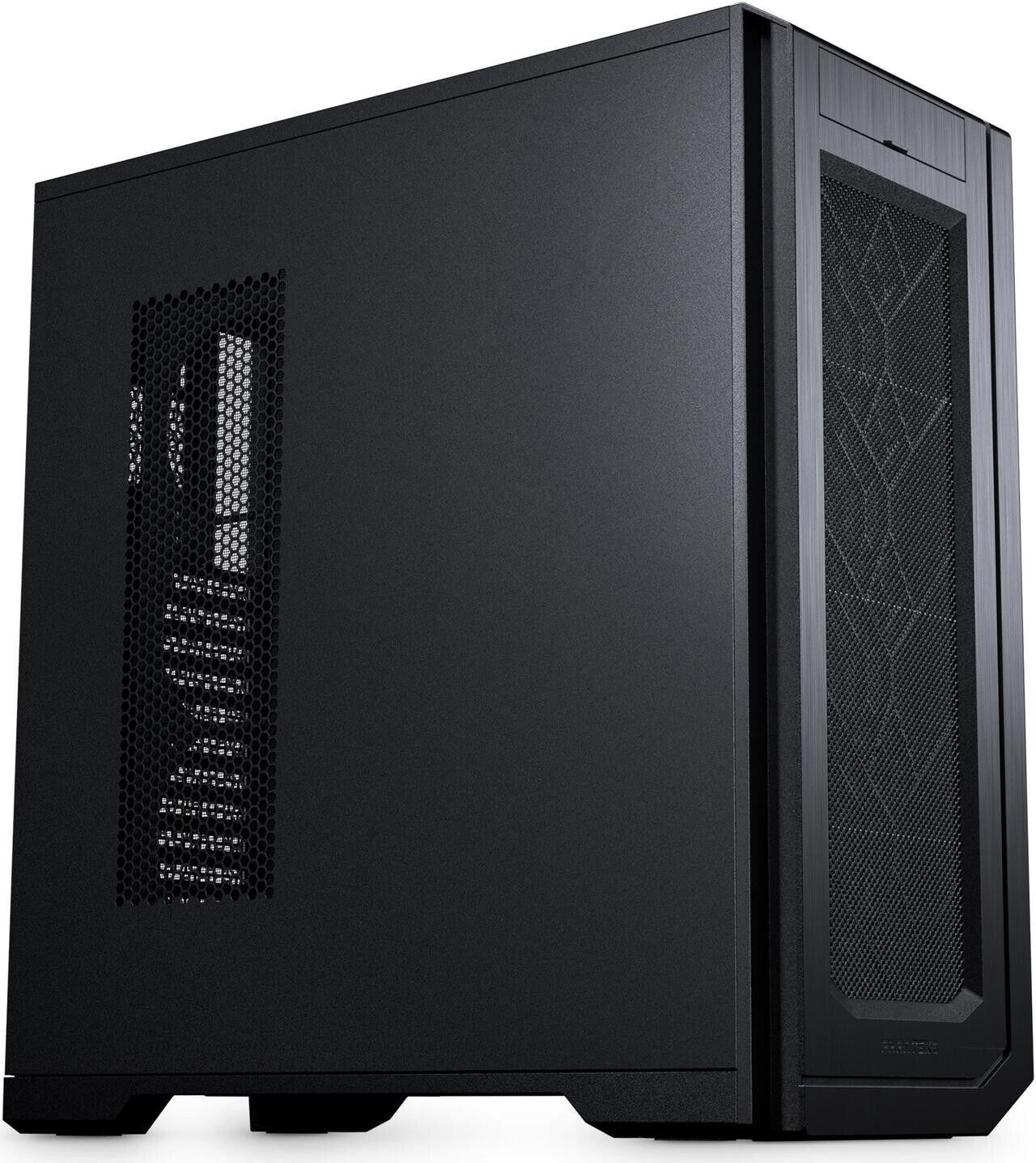

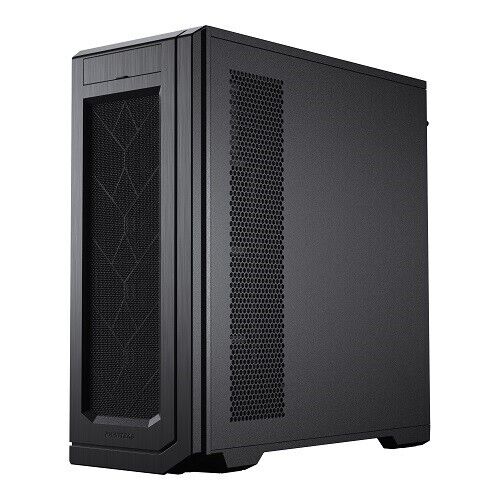

Phanteks PH-ES620PC_BK02 Enthoo Pro 2 Full Tower Closed Panel Mesh XL-ATI Black

The Enthoo Pro 2 Server Edition is designed with extreme performance in mind and features Phanteks’ innovative High-Performance Fabric, offering a new airflow performance standard. With an extremely spacious and versatile interior design and state-of-the-art features, the Pro 2 Server Edition is ready to house any high-end configuration.

The Pro 2 Server Edition features support for the largest server and workstation-grade motherboards with up to 11 PCI slots in the rear. Numerous storage and cooling options are available to meet any cooling demand.

Model

• Brand: Phanteks
• Series: Enthoo Pro 2 Server Edition
• Model: PH-ES620PC_BK02

Details

• Type : Full tower
• Color: Black
• Case Material: Steel Chassis
• Motherboard Compatibility : XL-ATX, SSI-EEB, E-ATX, ATX, micro-ATX, mini-ITX
• Side Panel Window : Closed panel with mesh

Expansion

• Internal 3.5" Drive Bays: 10 (4x included, also supports 2.5” drives)
• Internal 2.5" Drive Bays: 11 (11x included)
• Expansion Slots : 11; with optional Vertical GPU Bracket

Front Panel Ports

• Front Ports: 1 x USB 3.0 Type-A, 1 x USB 3.0 Type-C, 1 x Audio, 2 x Buttons,

Cooling System

• Fan Options (Not Included and Sold Separately)
  • Front - 4 x 120mm; 3 x 140mm
  • Top - 3 x 120mm; 3 x 140mm
  • Rear - 1 x 120mm; 0 x 140mm
  • Right side: 4 x 120mm
  • Left side: 3 x 120mm
• Radiator Options (Not Included and Sold Separately)
  • Front: up to 480mm (120mm radiator); up to 420mm (140mm radiator)
  • Top: up to 360mm (120mm radiator)
  • Rear: up to 120mm (120mm radiator); up to 140mm (140mm radiator)
  • Right side: up to 480mm (120mm radiator)

Dimensions & Weight

• Max GPU Length: 503 mm
• Max CPU Cooler Height: 195 mm
• Max PSU Length: 240 mm
• Dimensions (H x W x D): 13 x 25.6 x 26.2 in
• Weight: 25.68 lbs

Package Content:

• PRO 2 Chassis
• 3 x SSD bracket
• 4 x SSD Cover
• Accessory Box:
• 4 x Stackable HDD Bracket
• 1 x GPU Support Bracket
• 1x Left Side Fan Bracket
• 1x Server PSU Bracket
• 1 x Phanteks Case Badge
• 6 x Zip ties
• 18 x MB/SSD Screw
• 5 x PSU Screw
• 12 x Fan Screw
• 2 x HDD Cage Screw
• 1 x MB stand-off
