Sangoma A20202D 4 FXS 4 FXO analog card w/ EC HW - PCI

Regular price $1,006.50 USD Sale price $1,006.50 USD
Shipping calculated at checkout.
In stock: 1
Description
Title
Sangoma A20202D 4 FXS 4 FXO analog card w/ EC HW - PCI
Model: A20202D KIT
What's Included in this Kit
Base + Remora 1x PCI
Additional Remora 0
Backplane No

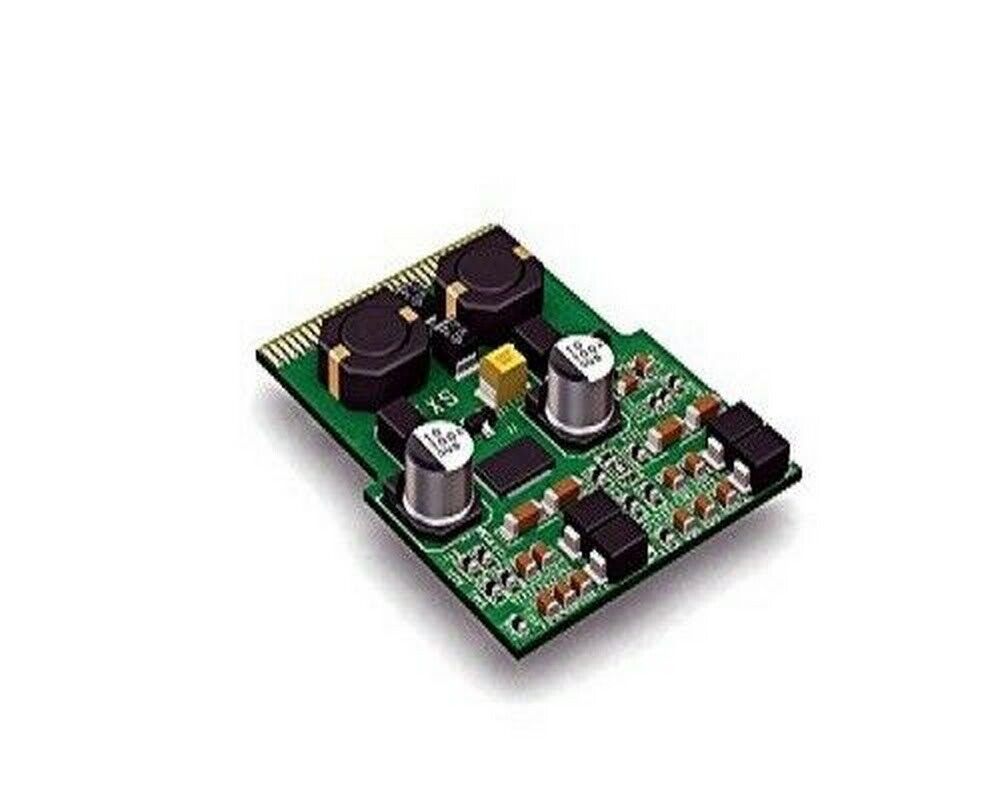

FXS (Dual) 02 4 FXS Lines

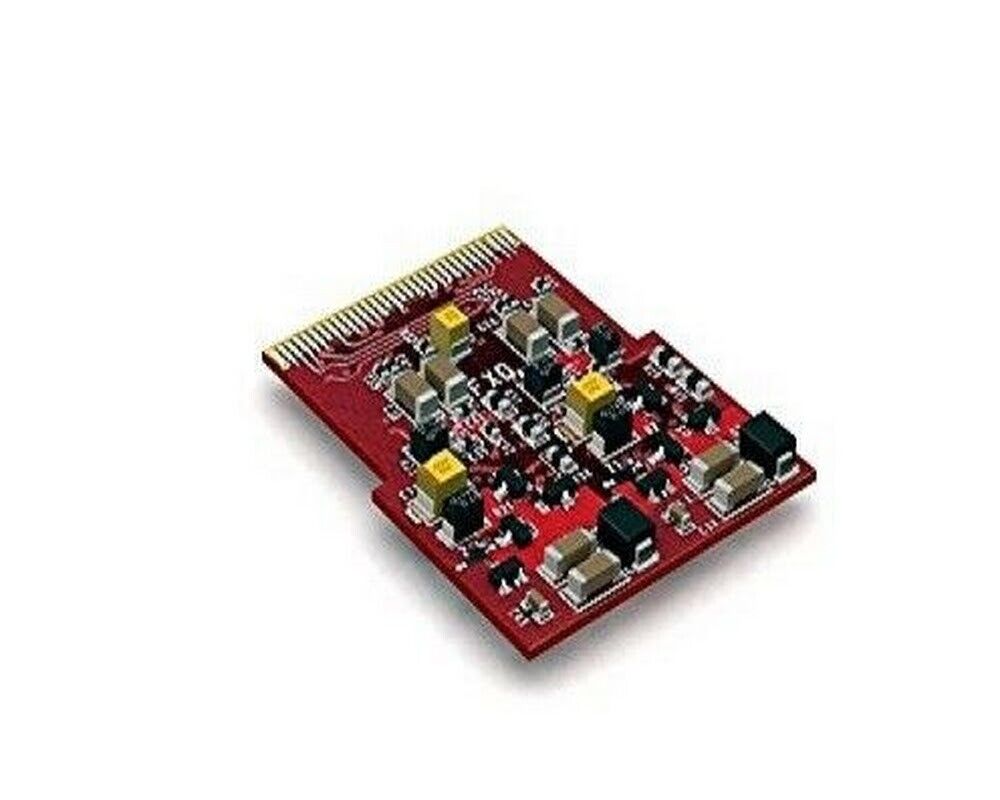

FXO (Dual) 2 4 FXO Lines
Echo Module Yes
RJ11 Cable 4
Low Profile Bracket Included
This is a KIT, depending on your order, items may come pre-assembled or may require some assembly (putting the A200/A400 parts together)
Sangoma A200 Series Overview

The A200 series of analog voice cards deliver superior audio quality in a compact 2U card that expands from two to twenty-four ports using a single interface slot.

For optimum echo-cancelled voice quality and enhancement choose the A200D model with DSP daughtercard Hardware Echo Canceller. One DSP echo canceller on the A200D base card will support Telco-grade hardwareecho cancellation on all channels up to the card?s maximum configuration in 24 ports with no additional CPU load.

To reach this configuration, simply add additional Remora? cards to any base card in the A200 series. A singlePCI or PCI Express slot hosts the connection and ensures common synchronous clocking for all channels.

Like all the cards in the award-winning Sangoma AFT Series Product Line, the A200 and Remora? system?s architecture is shared with Sangoma?s A101, A102, A104, and A108 cards, ensuring common 3.3 V or 5 V, high performance, universal PCI or PCI Express compatibility, and crash-proof field upgradable firmware to take advantage of enhancements, as soon they become available.

Sangoma cards guarantee error-free faxing and click-free audio on analog-digital links.

Technical Specifications
From 2 to 24 ports supported, mixing FXO and FXS interfaces, as required
Support for the Asterisk®, FreeSWITCH®, Yate?, CallWeaver?, PBX/IVR projects, as well as other Open Source and proprietary PBX/Switch/IVR/VoIP gateway applications
Single synchronous PCI and PCI Express interface for all 24 FXO/FXS ports
Four RJ11 ports per Remora? card
Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis
Short 2U compatible mounting clips available for installation in 2U rack-mount servers
32 bit bus master DMA data exchanges across PCI interface at 132Mbytes/sec for minimum host processor intervention
Autosense compatibility with 5 V and 3.3 V PCI busses
Fully PCI 2.2 and PCI Express compliant, compatible with all commercially available motherboards, proper sharing of PCI interrupts
Intelligent hardware: Downloadable Field Programmable Gate Array programming with multiple operating modes. Field upgradeable so that new features can be added when they become available
Maximum operational power for PCI: 3.75 W (0.75 A @ 5 V) + 4.2 W (0.35 A @ 12 V) per FXS module
For PCI Express: 2.64 W (0.8 A @ 3.3 V) + 4.2 W (0.35 A @ 12 V) per FXS module
Temperature range: 0 ? 50°C
Shipped with standard RJ11-terminated cables

Get the Fax on Sangoma Hardware
With Sangoma, there is no need for a separate analog line to run your fax machine
Using T1/E1 passthrough with Sangoma analog cards, there are no clock slips, buffer overruns, or transmit underruns that cause missed lines, blank sheets, and missed pages when faxing
Sangoma A200 and A400 cards synchronize perfectly with digital T1/E1 cards and the PSTN atomic clock for error-free fax and modem passthrough and superior voice quality over T1 and E1 lines

Optional DSP Echo Canceller Daughtercard on the A200D (Sold Separately)
G.168-2002 echo cancellation in hardware
1024 taps/128ms tail per channel on all channel densities
DTMF decoding and tone recognition
Voice quality enhancement: music protection, acoustic echo control and adaptive noise reduction
No CPU load as a result of echo cancellation
Does not increase the physical size of the card, and no additional slot is required

Wiring Connections
The A200 and Remora? cards incorporate 4-pin RJ11/4 narrow jacks, such as those used in telephone handsets
Each Sangoma A200 card is shipped with four 2 m cables terminating in a narrow RJ11/4 plug at one end and a telephone-standard RJ11/6 plug at the other
To hardwire the A200 system, you can purchase a kit of 12 RJ11/4 plugs and a crimping tool, sold separately

Operating Systems
Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
Linux (all versions, releases and distributions from 1.0 up)

Certifications
FCC Part 15 Class A, FCC Part 68, and EN 55022 Class A, JATE
Technical certifications in Russia and Malaysia

Diagnostic Tools
WANPIPEMON®, SNMP, system logs
Architecture

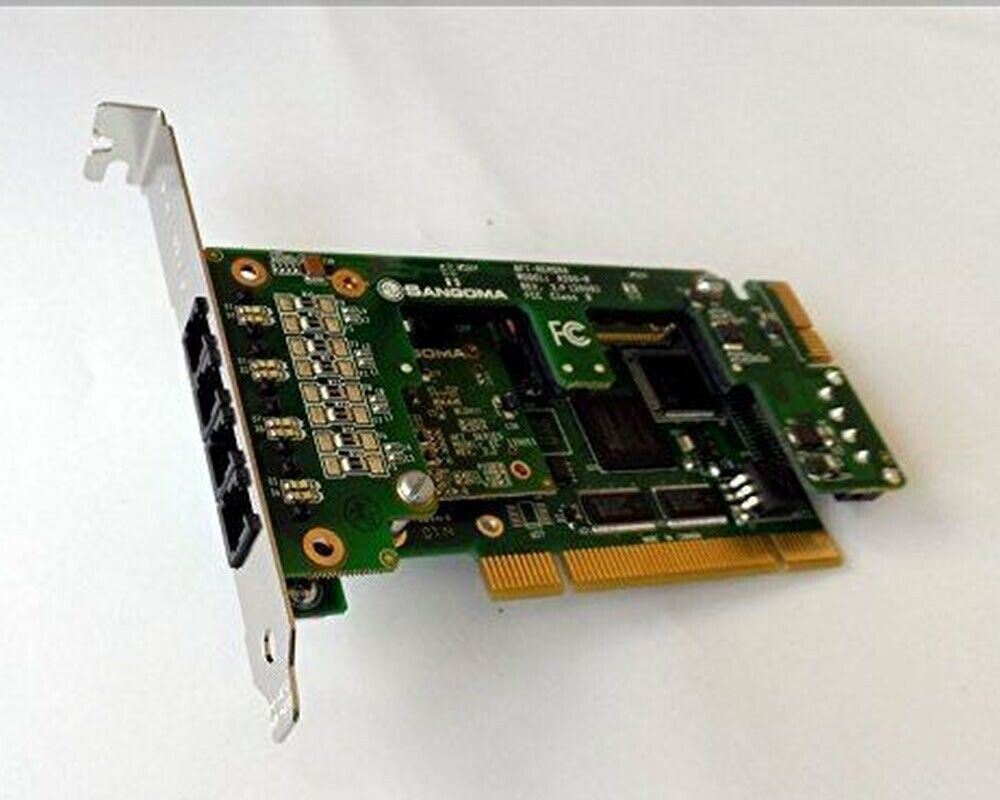

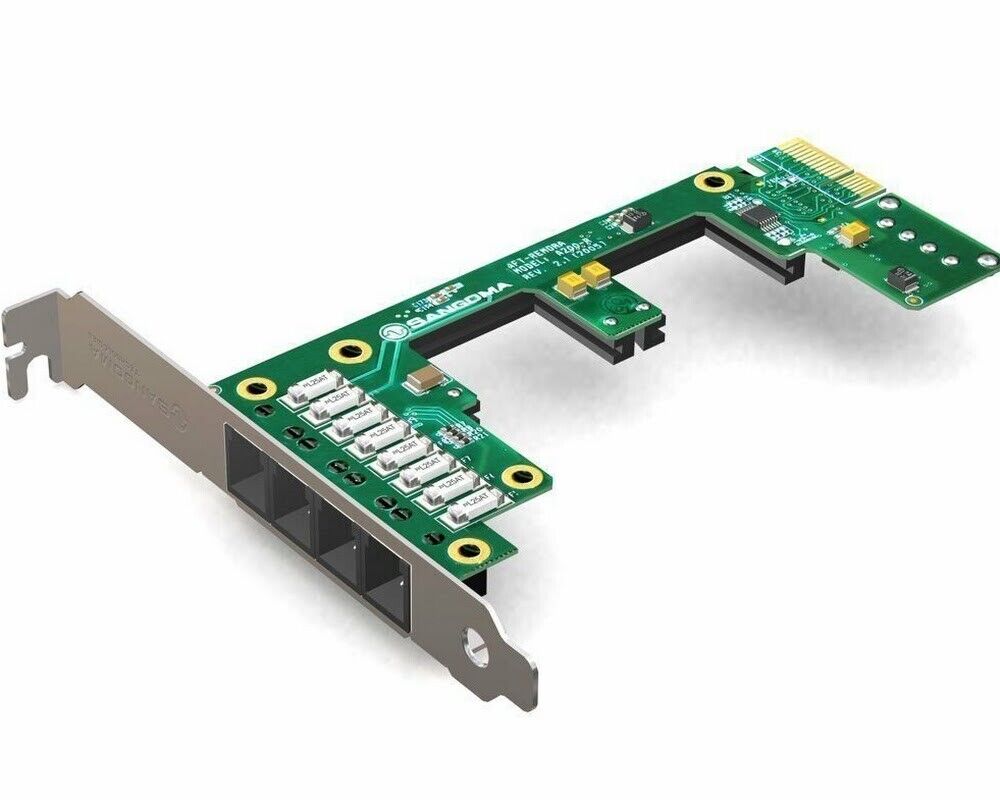

The A200 consists of a Remora? daughtercard mounted on the AFT PCI card. The Remora card has two sockets each of which can accept a FXO-2 or FXS-2 module. Each FXO-2 or FXS-2 module supports two FXO or FXS lines, respectively.

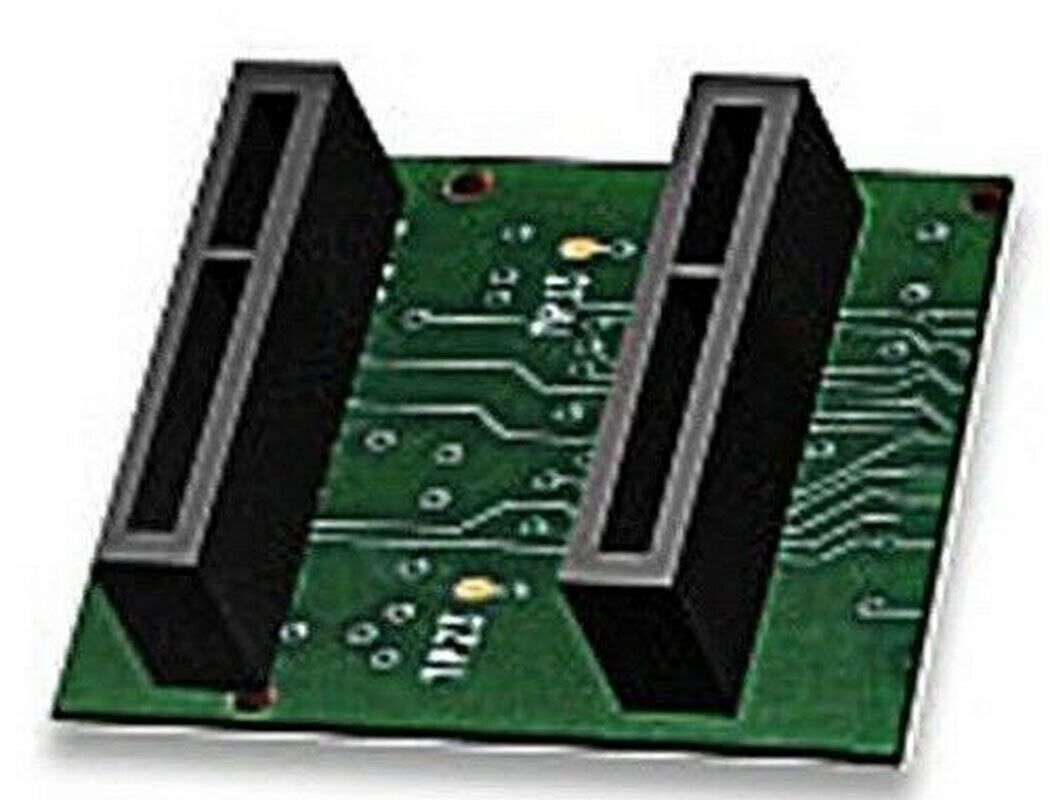

Up to five additional Remora? daughtercards can be mounted in empty slot positions beside the A200 assembly, connected to the A200 by a backplane bus connector.

Production Quality
ISO 9002

Warranty
Lifetime warranty on parts and labour when purchased through an authorized Sangoma Channel Partner.
