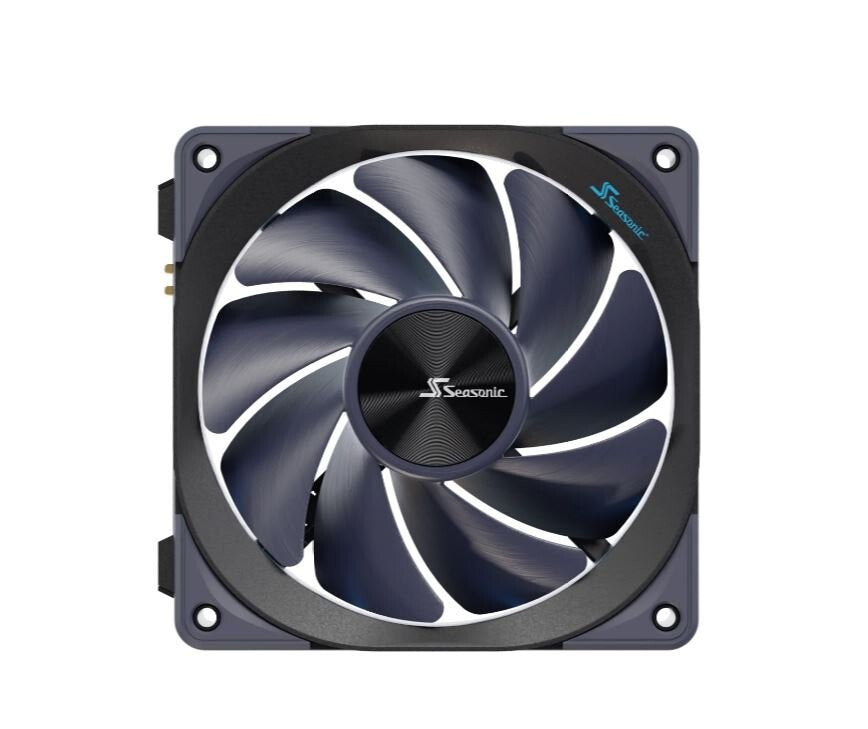

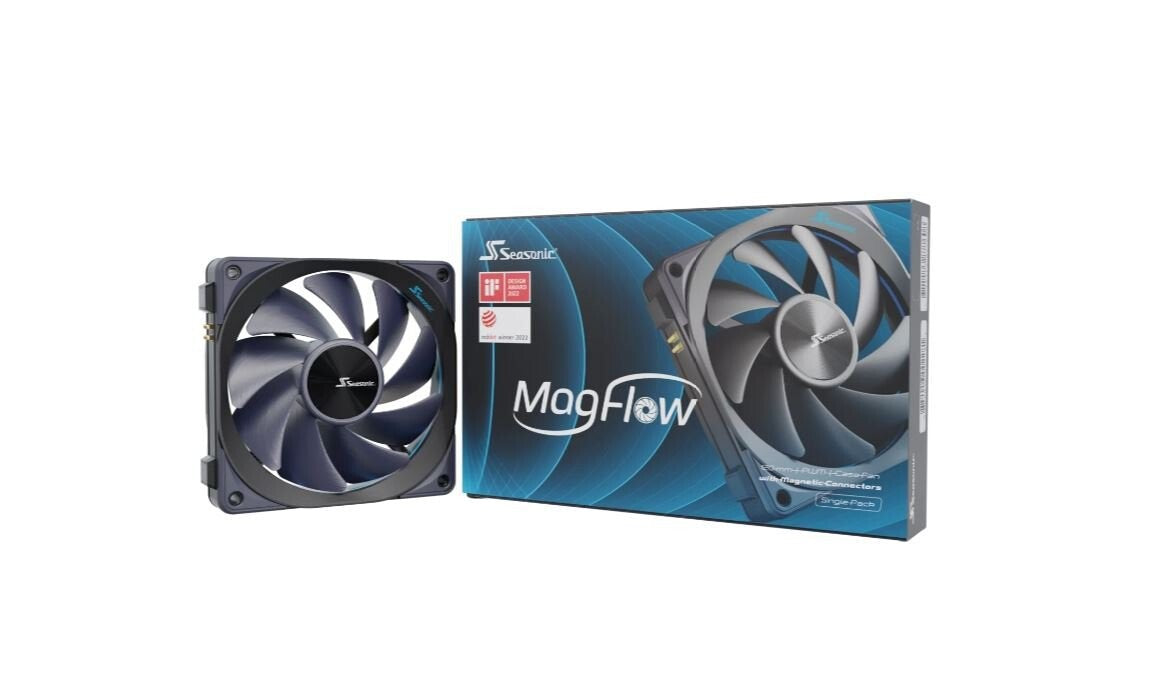

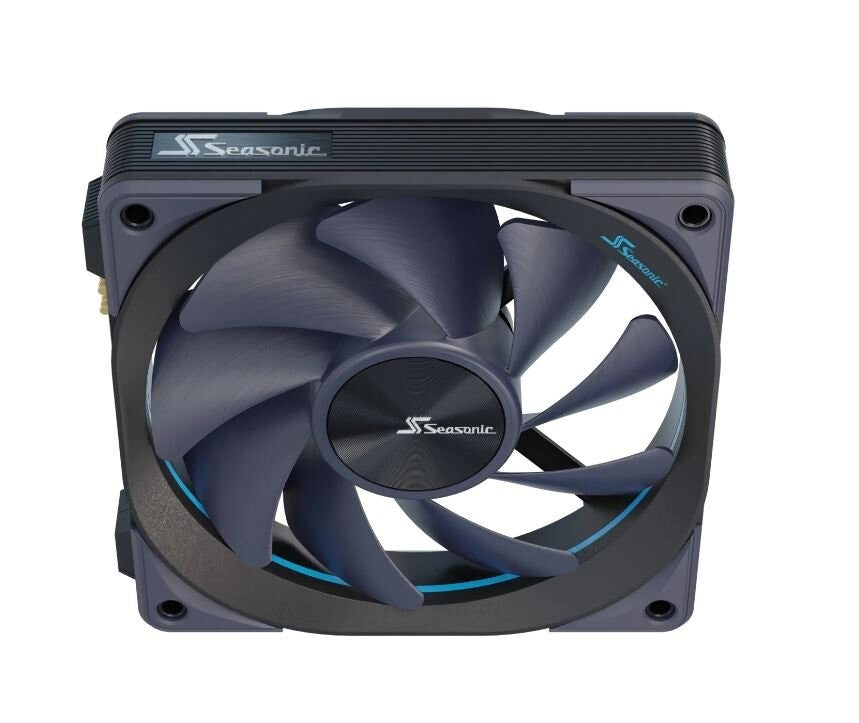

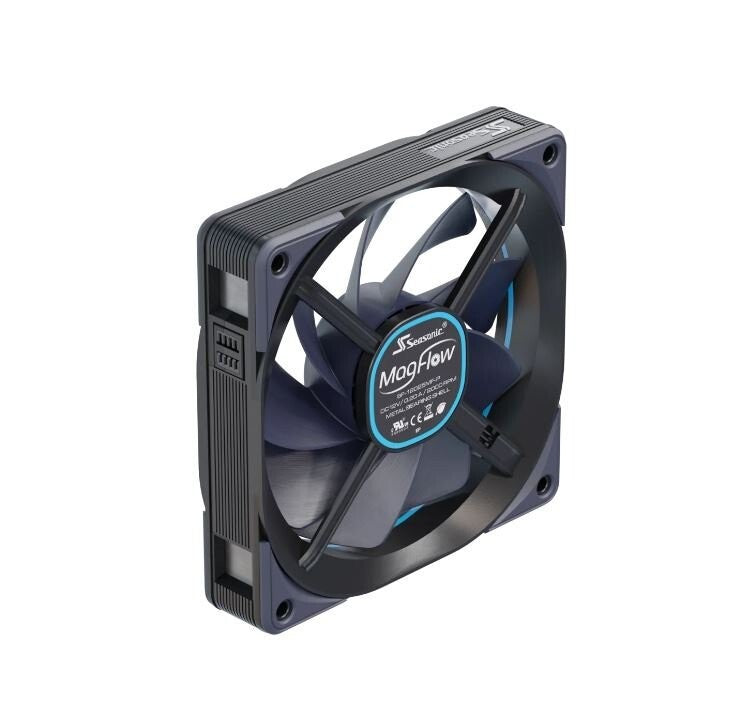

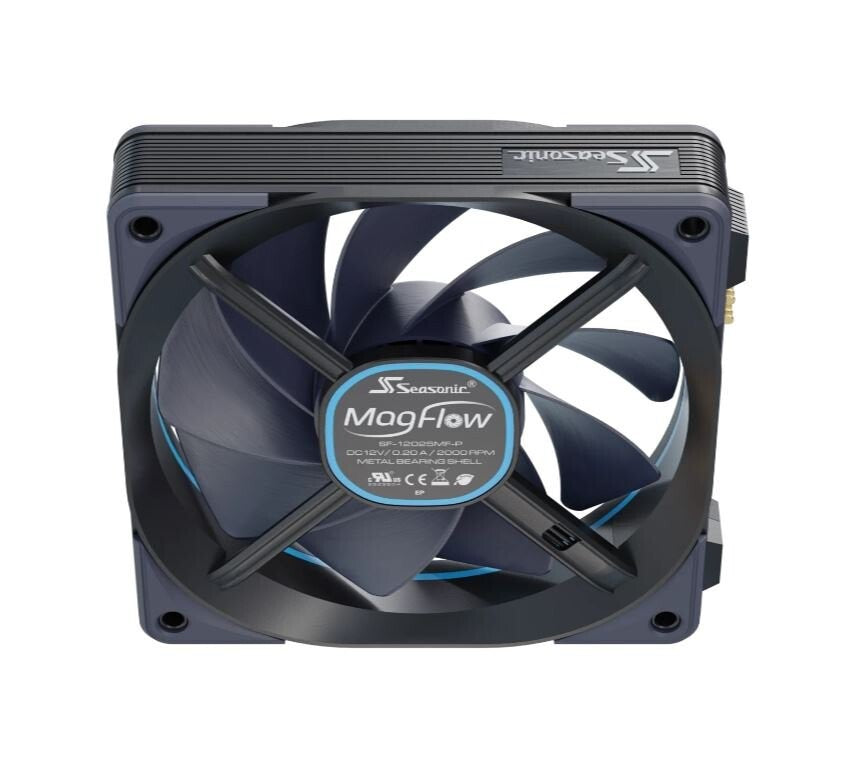

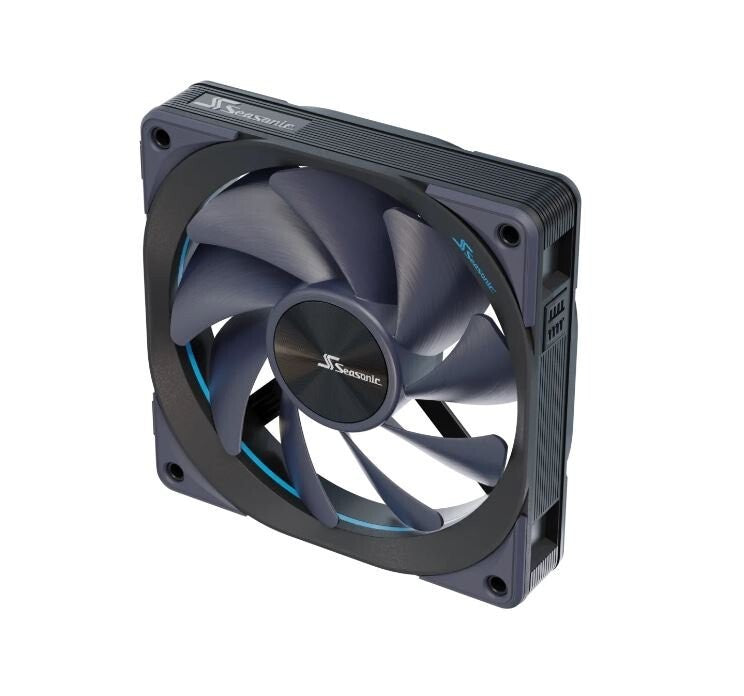

Seasonic MAGFLOW 1-FAN KIT MagFlow 120 mm High Quality Fan - Fluid Dynamic

MPN: MAGFLOW 1-FAN KIT

Main Features

• Features
• -Magnetic Fan- and Cable Connectors
• -Optimized for Daisy Chaining
• -Nine-blade Design
• -Liquid Crystal Polymer (LCP) Blades
• -Four-pole Motor
• -Metal-reinforced Motor Hub
• -Fluid Dynamic Bearing (FDB)
• -Sound-Optimized Airflow and Air Pressure
• -Shock-Absorbing Pads
• Model Number: SF-12025MF-P
• Dimensions: 120.4 mm x 124.2 mm x 26.6 mm (Fan including magnet and rubber pads)
• Nominal Input Voltage: 12 VDC
• Rated Input Current: 0.10 A
• Startup Current: 0.18 A (max.)
• Rotational Speed: 600~2000+/-10% RPM
• Acoustical Noise: 33.78 dBA
• Air Flow: 63.33 CFM (max.)
• Air Pressure: 2.61 mm-H20 (max.)
• MTBF: 100,000 hours
• Bearing Type: Fluid Dynamic Bearing
• Fan Weight: 212.7 g
