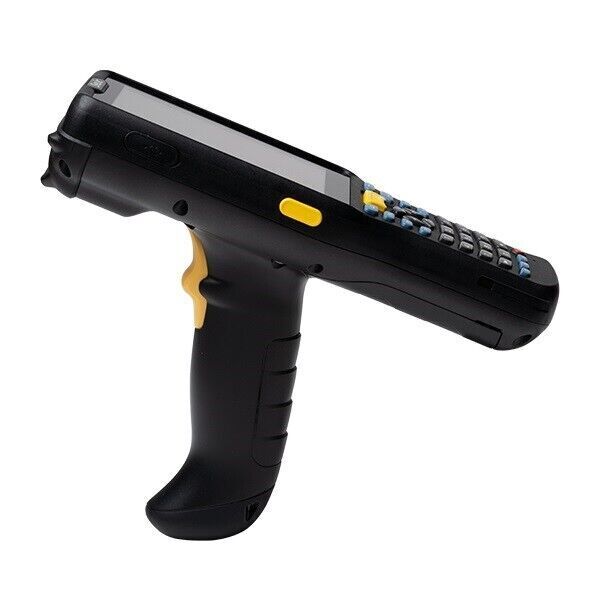

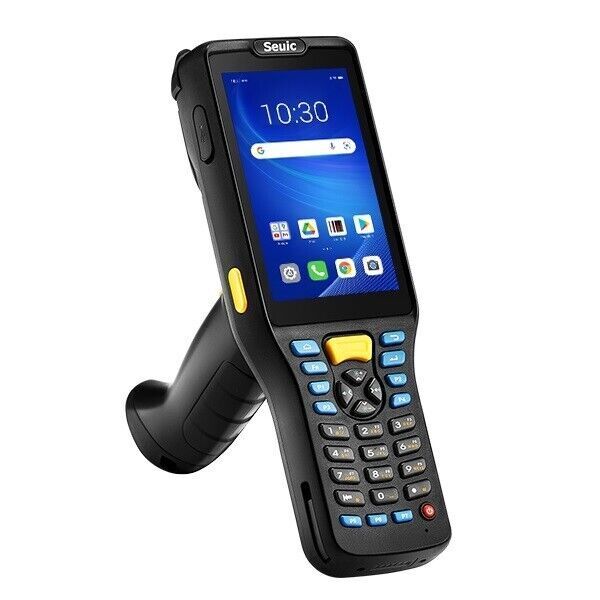

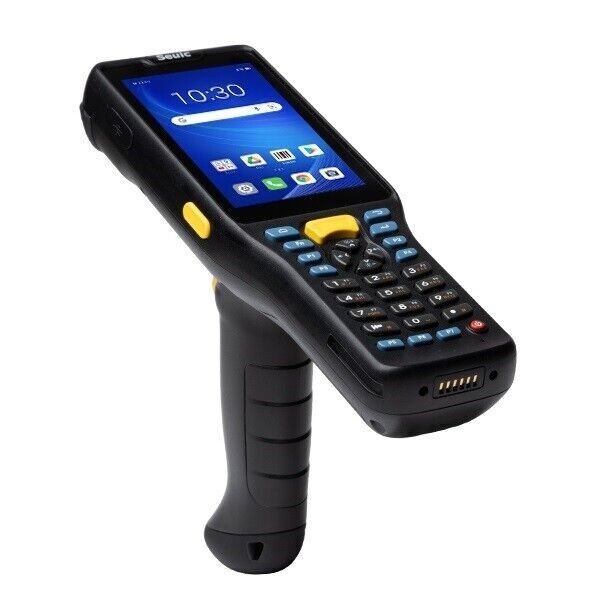

Seuic 8111019001 Scanner AUTOID Q7 Cortex A53 3GB 16GB Android11 standard range

Regular price $620.98 USD Sale price $620.98 USD
Shipping calculated at checkout.
In stock: 1
Description
Vendor: Seuic
SKU: 271746
MPN: 8111019001

Marketing Information

Seuic Scanner 8111019001 AUTOID Q7 Cortex A53 3GB 16GB Android11 standard range Retail

Detail Specifications

Physical Characteristics
Display
4.0 inch, 800(H)x480(W) (WVGA)
Touch Panel
Multi-touch panel, gloves and wet hands supported
Power
Detachable 3.7V removable Li-ion battery, Rated capactity: 5200mAh
Built in li-ion backup battery
Standard Micro USB, intelligent identification of PC and special charger, support Charging Dock
Expansion Slot
Micro SD Card, 32GB SDHC compatible
Notification
Sound, Vibrator, LED indicator
Keypad
31 keys, LED(buttons with backlight)
Voice and Audio
Built-in loudspeaker, built-in microphone
User Environment
Operating Temp
-20 oC to +50 oC
Storage Temp.
-40oC to + 60oC (Battery included)
-40oC to + 70oC (Battery excluded)
Humidity
5% to 95% RH non-condensing
Drop Specification
Multiple 1.8m drops to marble across the operating temperature range
Tumble Specification
1,000 1.64 ft./0.5 m tumbles (2,000 impacts)
Sealing
IP65 per IEC sealing specifications
ESD
+/-15kV Air discharge, +/-8kV direct discharge
Performance Characteristics
CPU
Cortex -A53 8-core 1.8GHz
Operating System
Android 11
Memory
3GB RAM+16GB ROM
Developing Environment
Operating System
Android 9.0
Language
Java
Tool
Eclipse / Android Studio
Data Capture
Scan Engine
SE965: 1D standard range laser scanner
X3/X3 MR: Standard/Middle range 1D/2D imaging engine
N6603/N6703: Standard range 1D/2D imaging engine
SE4850: Extended range 1D/2D imaging engine
Camera
Maximum Resolution: 2592x1944(taking photo), 1080P 30fps (taking movie)
Photo Function: Auto-focus
Pixel: 5mega
NFC
Support ISO15693, ISO14443A/B(without encryption protocol), ISO14443A tag with encryption protocol(Mifare one S50,S70 and its compatible cards), Support NFC protocol and ID certificates.
Connectivity
WLAN
IEEE 802.11a/b/g/n/ac(2.4G/5G dual-frequency WIFI)
WWAN
2G: 900/1800MHz
3G: B1/B8
4G: B1/B3/B7/B8/B38/B40
Bluetooth
Bluetooth 4.2 (Dual mode, Support BLE)
GNSS
GPS/AGPS, GLONASS, Beidou, internal antenna
Platforming
SEUIC MDM, Standard Android SDK, Wavelink/SOTI for Android
Scanner
resolution:844(H)x640(V) rotation angle:360o up-down angle:+/-45o left-right angle:+/-60o DOF:18.6cm(5mil Code39),76.3cm(20mil Code 39) fps:60

Warranty Information
2Y - Direct from the Manufacturer
