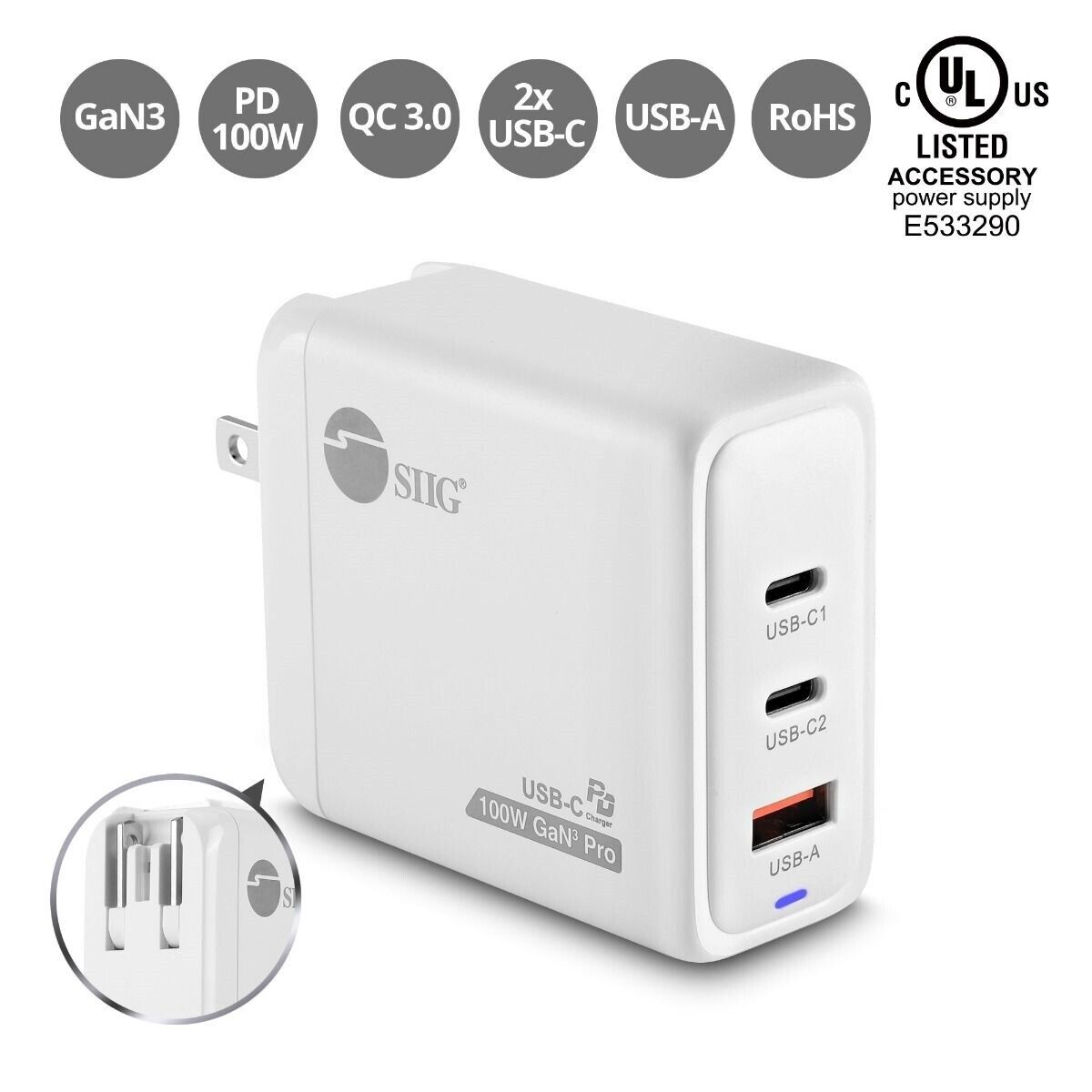

SIIG AC-PW1Z11-S1 100W GaN PD Combo Charger 2C1A 2x USB-C + 1x USB-A Retail

Regular price $59.40 USD Sale price $59.40 USD Regular price $0.00 USD
Shipping calculated at checkout.
Out of stock
Description
Vendor: SIIG
SKU: 276021
MPN: AC-PW1Z11-S1

Marketing Information
100W GaN PD Combo Charger - 2C1A - USB-C Charging Station - USB-C Power Adapter - Maximum 100W output totally - C1/C2 up to 100W - USB-A up to 30W

Detail Specifications
New Gallium Nitride (GaN) 3 Pro semiconductor material
USB A port: Quick Charger 3.0 protocol
USB-C1/2 ports: USB Power Delivery 3.0, Fast Charger 2.0 /PPS specification compatible
AC Input: AC 100-240V, 50/60Hz, 1.5A

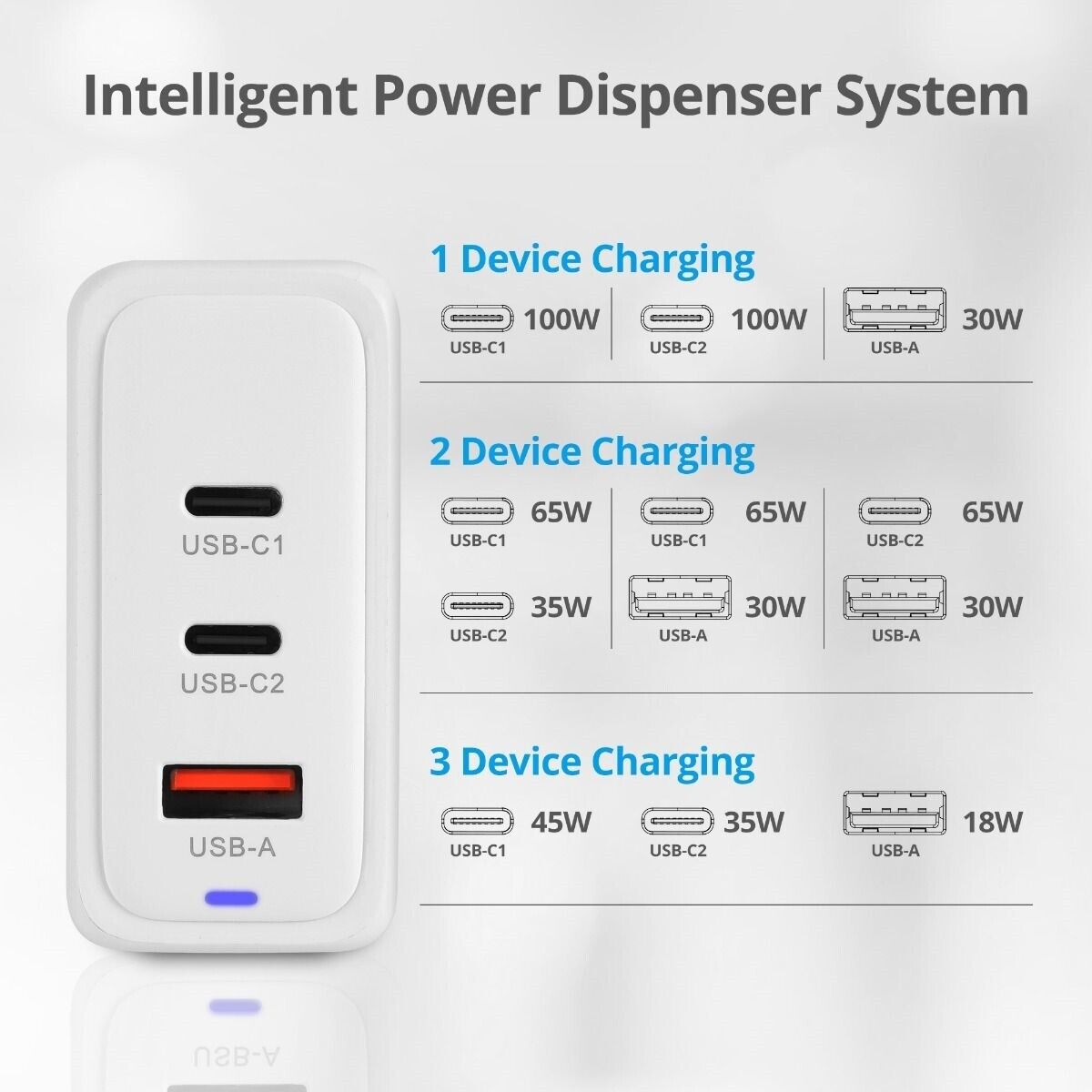

Power output:
Total power output: 100 watts shared among all the charging ports
Single port used:
USB-C1 Up to 100W, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
USB-C2 Up to 100W, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
USB-A Up to 30W, 5V/4.5A, 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A
Dual port used:
USB-C1 + USB-C2 equals 65W + 35W
USB-C1 + USB-A equals 65W + 30W
USB-C2 + USB-A equals 65W + 30W
Triple port used:
USB-C1 + USB-C2 + USB-A equals 45W + 35W + 18W
Protection: Over-load, Over-Voltage, Over-Current, Over Heating and Short-Circuit
Product:
Housing material: Plastic
Color: White
Connector:
1x AC power plug in AC 100-240V, 50/60Hz, 1.5A, input
2x 24-pin, USB-C, Female, output
1x 4-pin, USB-A, Female, output
Environmental conditions:
Operating temperature: 14 to 104 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS, ETL
UL Certification E533290
Country of origin: Engineered in USA, Manufactured in China

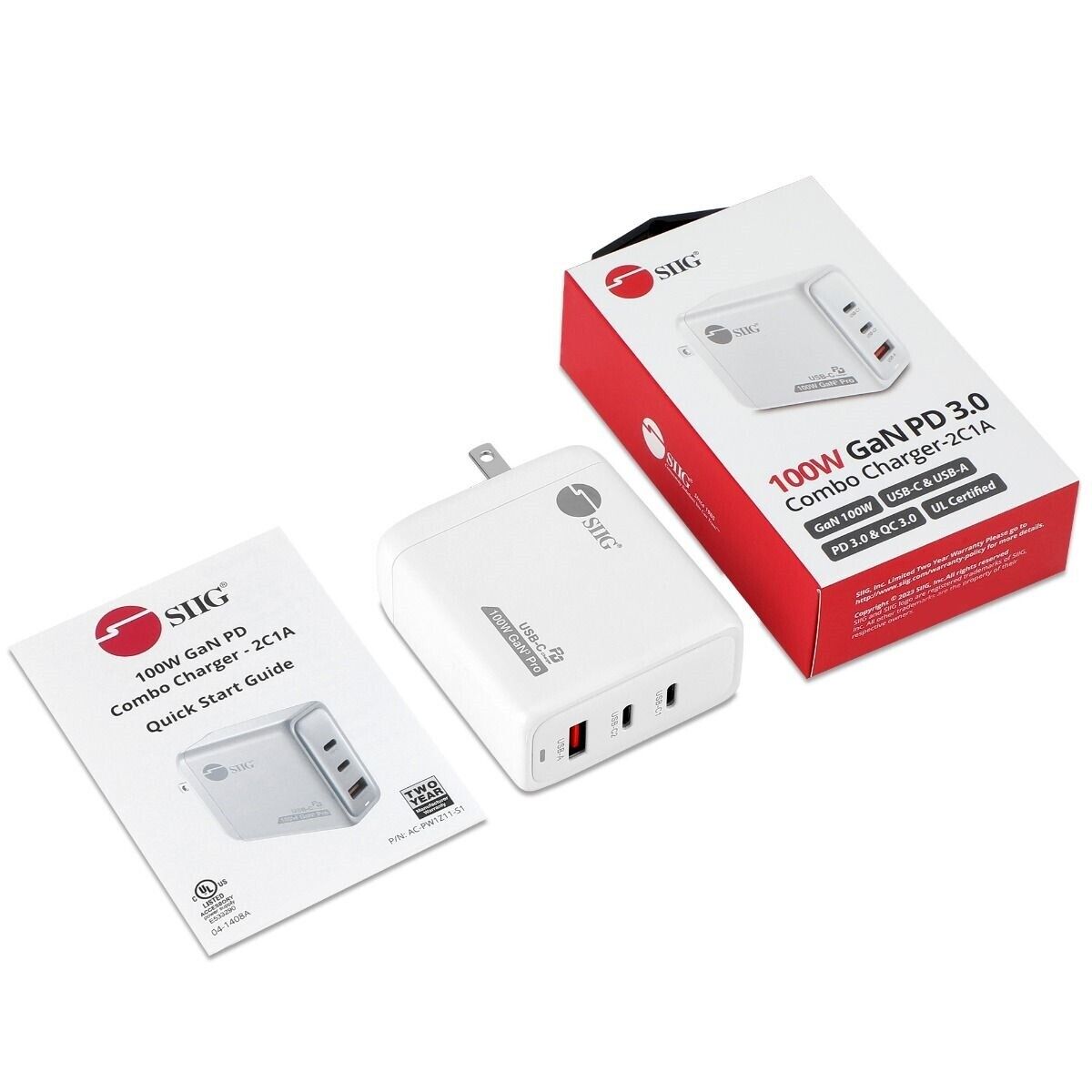

Package contents
100W GaN PD Combo Charger - 2C1A
Quick Start Guide

Warranty Information
2 Years Limited - Direct from the manufacturer
