SIIG CE-DP0H11-S1 1x2 DP 1.2 to DisplayPort MST Hub- Multi Monitor Splitter
Regular price
$81.13 USD
Sale price
$81.13 USD
Regular price
$0.00 USD
Description
SIIG CE-DP0H11-S1 1x2 DP 1.2 to DisplayPort MST Hub- Multi Monitor Splitter
Current product
Current
Vendor:
SIIG
SIIG CE-DP0H11-S1 1x2 DP 1.2 to DisplayPort MST Hub- Multi Monitor Splitter
Regular price
$81.13 USD
Sale price
$81.13 USD
Regular price
$0.00 USD
Options
Descriptions
Vendor: SIIG
SKU: 239556
MPN: CE-DP0H11-S1
Marketing Information
Features
• Boost your productivity by connecting two DisplayPort displays to single DisplayPort 1.2 output with Multi-Stream Transport (MST) technology
• Provides multiple display modes for various applications such as Mirror mode same content on each display, Extended mode* with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display. Note: Panoramic Video Wall mode requires either a AMD Eyefinity or NVIDIA Surround technology graphics adapter
• Supports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audio
• Compatible with DisplayPort 1.2 graphics cards with AMD Eyefinity or NVIDIA Surround technology**
• Plug-n-play, hassle-free set up without complicated hardware or driver installation***
Notes:
*Mac OS does not support MST function and will only mirror the displays.
**Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode.
***Requires USB power source of at least 5V/300mA
Detail Specifications
Chipset:
STDP4320
Maximum resolution up to 3840x2160 at 30Hz
Compliant with DisplayPort 1.2a specifications
Supports 7.1 Ch audio up to 192kHz sampling rate
Display Modes:
Mirror, Extend, Panoramic video wall
Note:
AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
Total Bandwidth 21.6Gbps (100%): 3840x2160 at 30Hz (40%), 2560x1600 at 60Hz (38%),2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%)
Note:
Make sure the total combined resolution bandwidth among all displays DOES NOT exceed 100%.
Product:
DisplayPort cable (embedded):
12.6 inches
Color:
Black

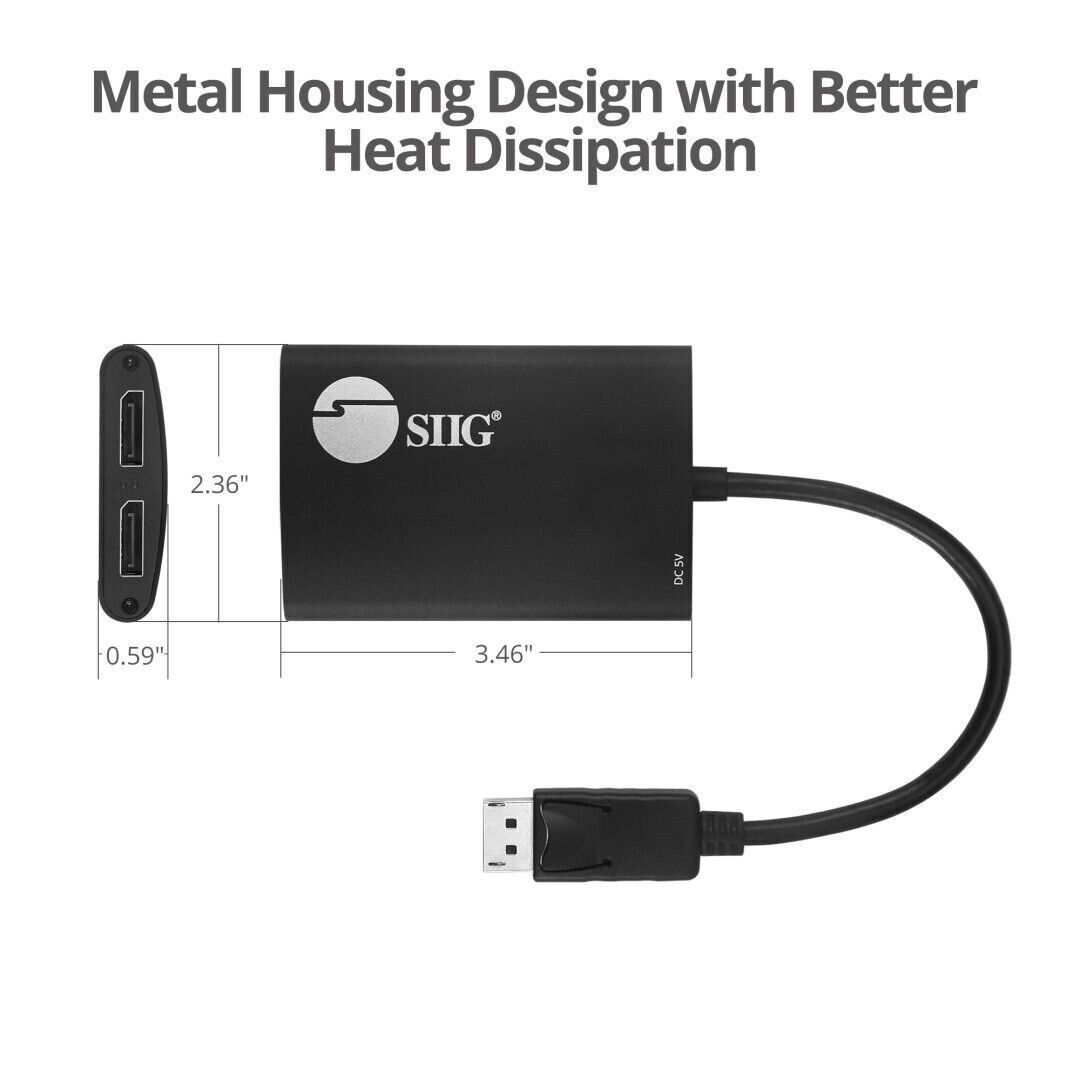

Housing:
Aluminum
Connector:
1x 20-pin, DisplayPort, Male, Input
2x 20-pin, DisplayPort, Female, Output
1x 5-pin, Micro USB, Female, power Input (at least 5V/300mA from USB port)
Micro USB power cable:
19 inches
Environmental conditions:
Operating temperature:
32 to 122 degrees F
Storage temperature:
14 to 158 degrees F
Relative humidity:
20% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
System Requirements
Desktop or laptop computer with an available DisplayPort 1.2 MST output
AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode
USB power source (at least 5V/300mA)
Note:
Mac OS does not support MST function and will only mirror the displays.
Package contents
1x2 DP 1.2 to DisplayPort MST Hub
Micro-USB power cable
User Reference Guide
Warranty Information
3 years - Direct from the Manufacturer
