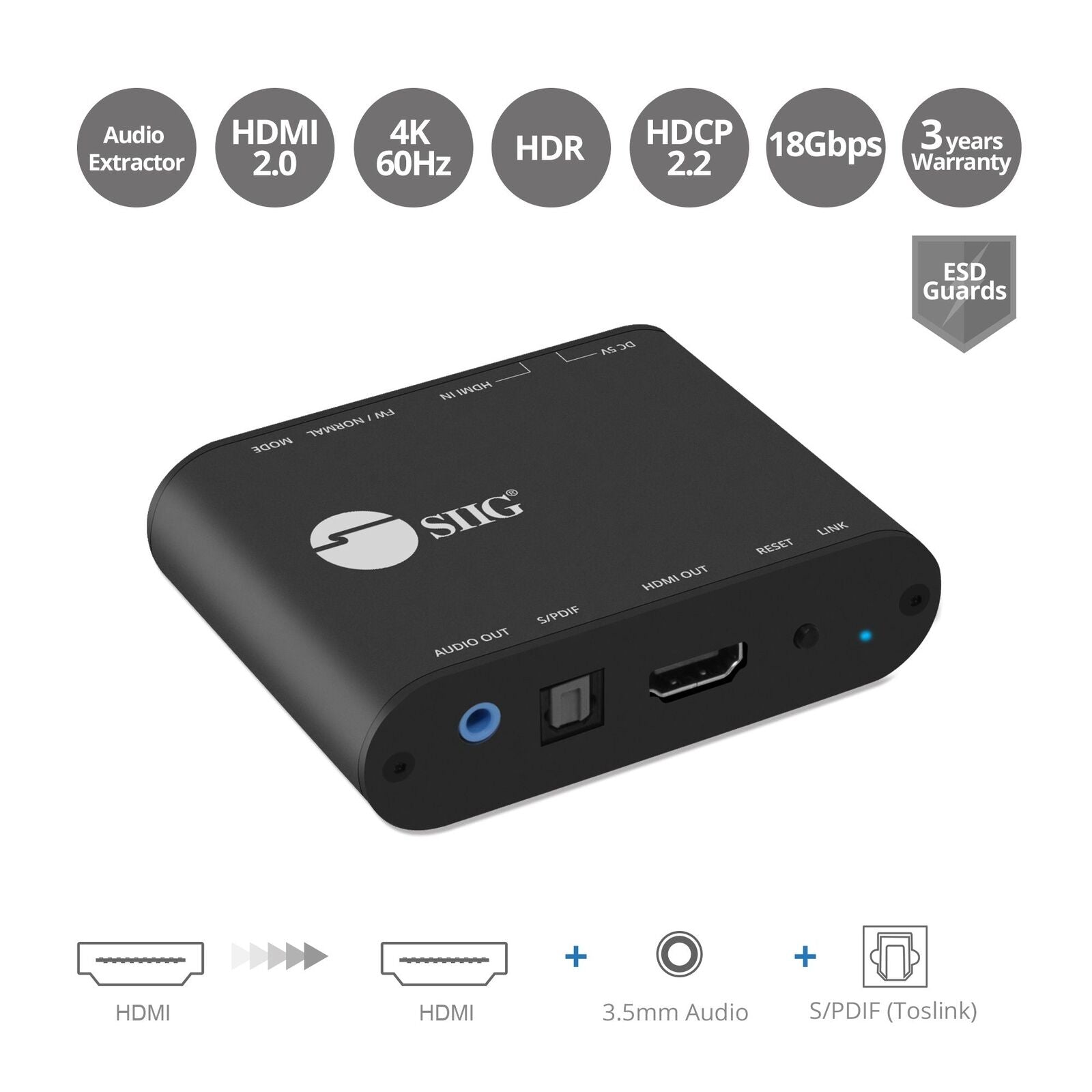

SIIG CE-H24F11-S1 HDMI 2.0 4K HDR with Audio Extractor & ARC - HDMI 18Gbps Video

General Information

Manufacturer SIIG, Inc
Brand Name SIIG
Manufacturer Part Number CE-H24F11-S1
Product Name HDMI 2.0 4K HDR with Audio Extractor & ARC

Product Type Signal Extractor

SIIG HDMI 2.0 4K HDR with Audio Extractor & ARC - HDMI 18Gbps Video bandwidth - 3.5mm & S/PDIF Audio Extraction - EDID management - 4K60Hz 4:4:4 8-bit / 4K60Hz 4:2:0 10-bit HDR - Micro USB Firmware update - CEC bypass / S/PDIF ARC output / 3.5mm Audio jack out - ESD protection - 3 years warranty - TAA Compliant

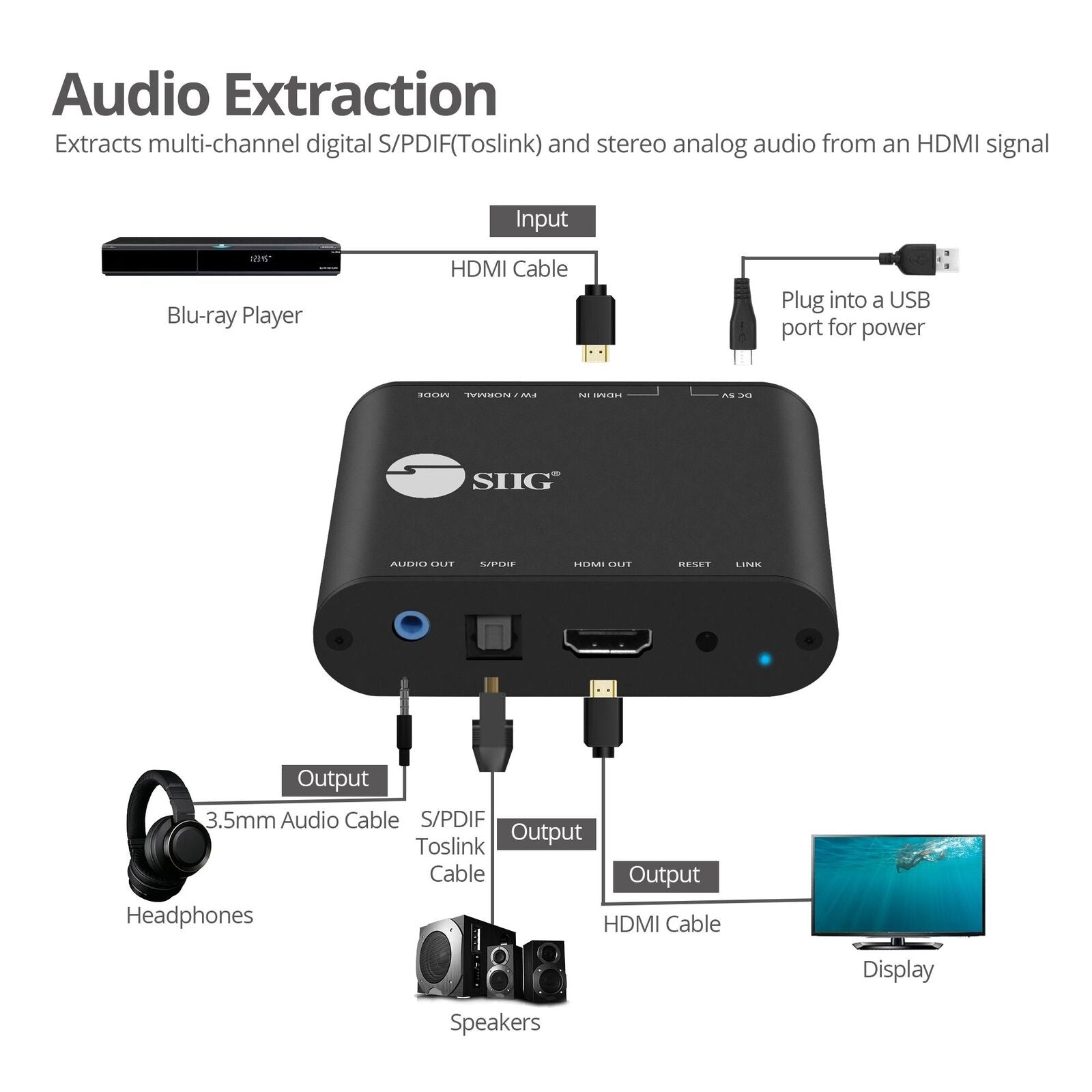

Splits incoming HDMI audio signal to stereo audio and Toslink outputs, allowing you to connect to speakers and entertainment systems that do not have an HDMI connection

•     Identifies and separates high quality audio track from an incoming HDMI signal and sends it to a 3.5mm stereo jack and Toslink S/PDIF port, allowing you to connect to speakers, AV receivers and entertainment systems that lack an HDMI connection
•     Works with multi-channel HDMI embedded audio

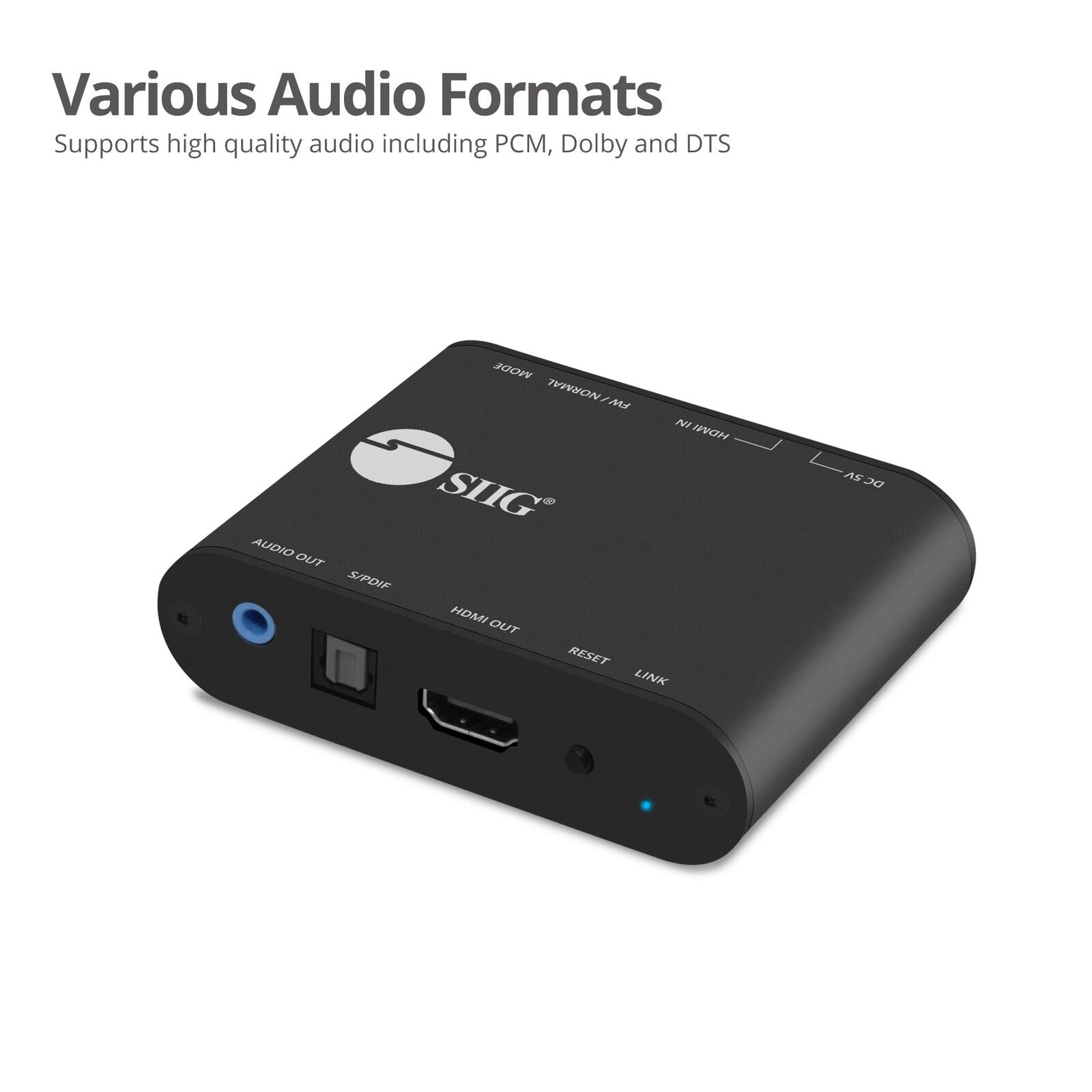

•     Supports PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1 audio
•     Supports audio extraction via stereo and Toslink
•     Supported Optical Audio Formats: PCM 2-CH and Dolby 5.1

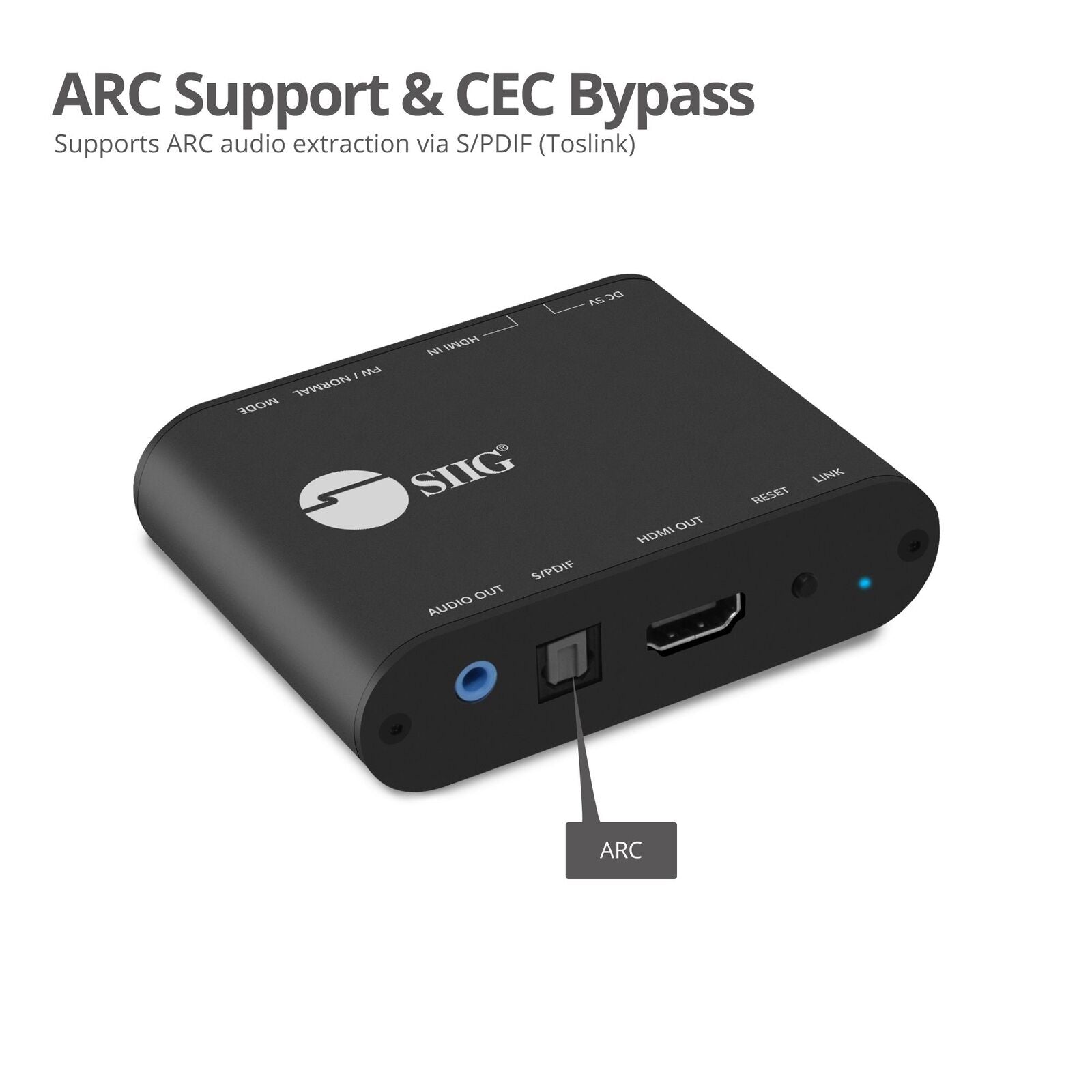

•     Supports ARC audio extraction via Toslink connection
•     Wall-mountable metal housing allows easy installation in any environment and provides better RF shielding and heat dissipation for dependable performance and long life
•     Plug and Play Installation - No driver or software installation required

Features

•     Mountable to a wall, saves you floor space and yet easy-to-reach
•     Signal extractor has HDMI booster that helps in long distance transmission
•     To fulfill your needs, this audio extraction function is a perfect choice

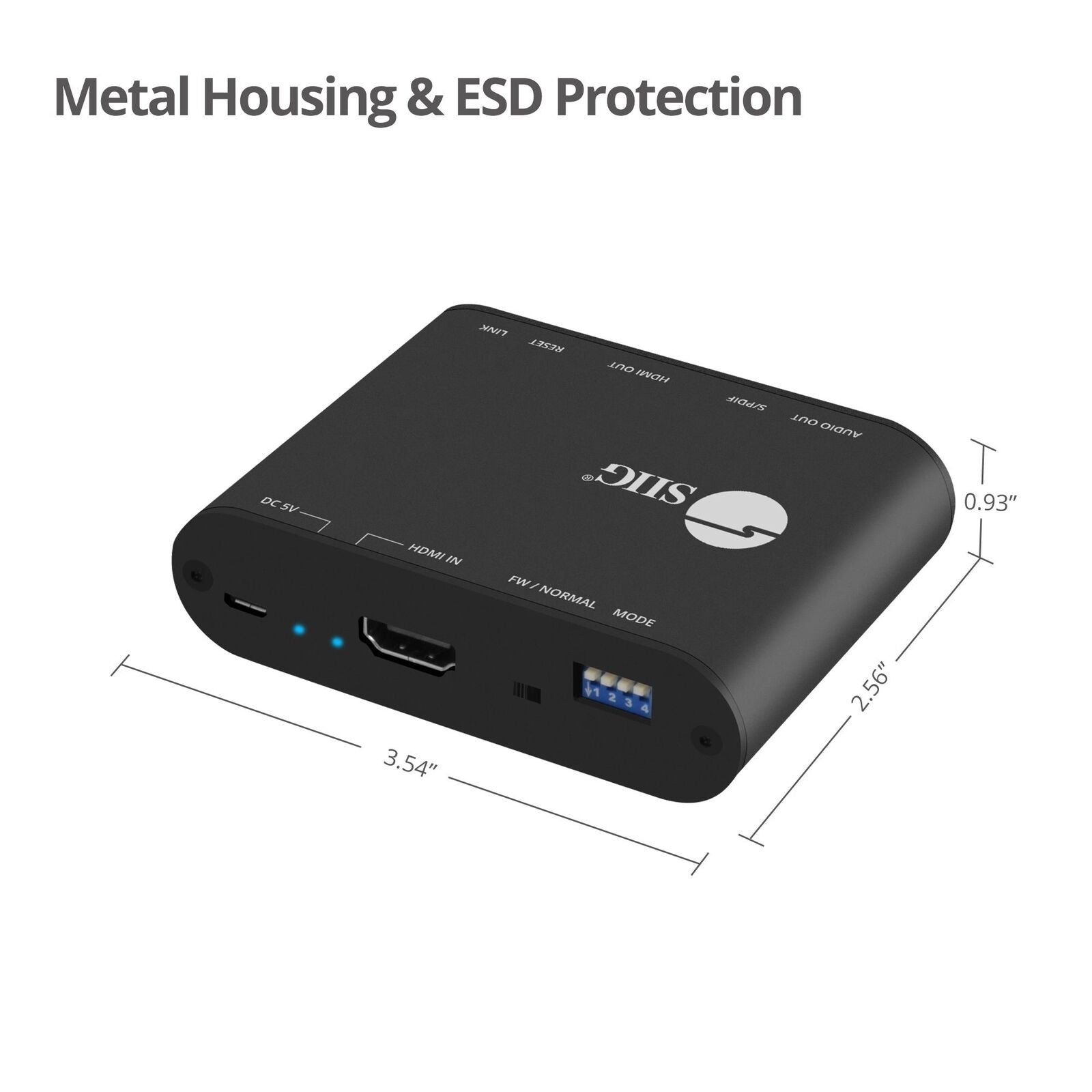

Physical Characteristics
Weight (Approximate) 0.49 lb
Form Factor Wall Mountable
Height 0.9"
Width 2.6"
Depth 3.5"

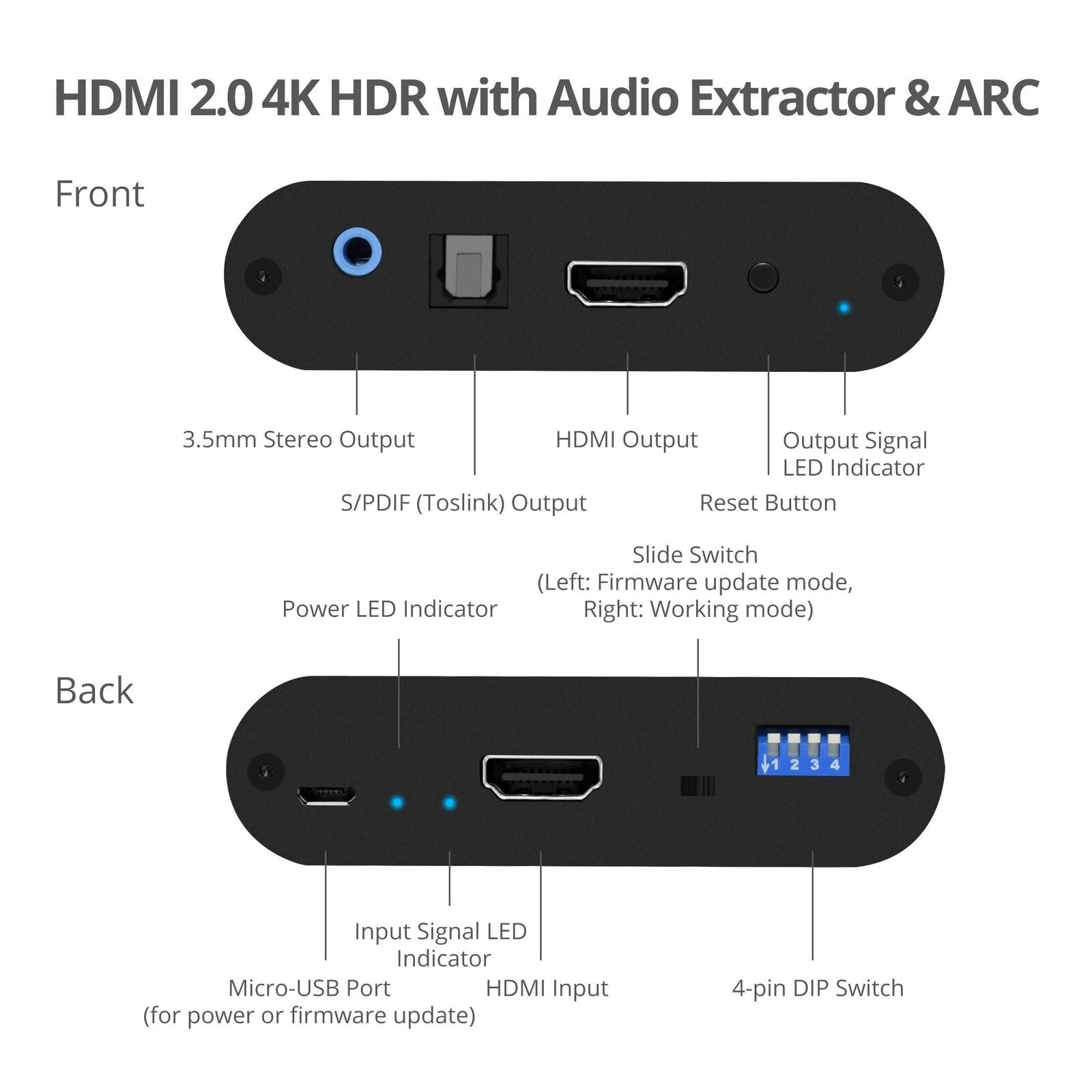

Interfaces/Ports
USB Yes
HDMI Yes
Audio Line In Yes

Technical Information
Functions Audio Embedding
Audio Extraction
Maximum Resolution 4096 x 2160

Miscellaneous
Package Contents

    HDMI 2.0 4K HDR with Audio Extractor & ARC
    USB Type-A to Micro B Cable
    Installation Guide

Country of Origin Taiwan
