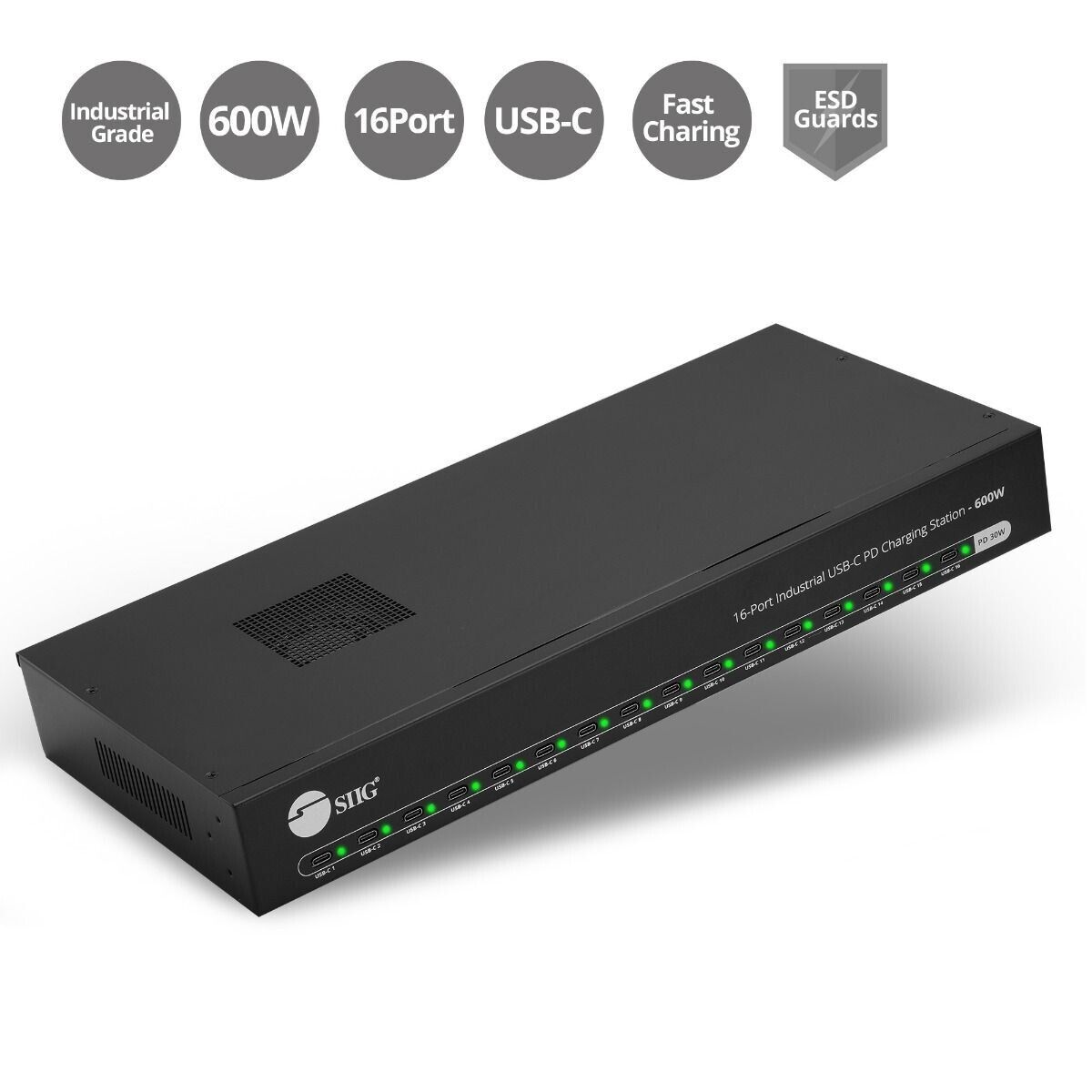

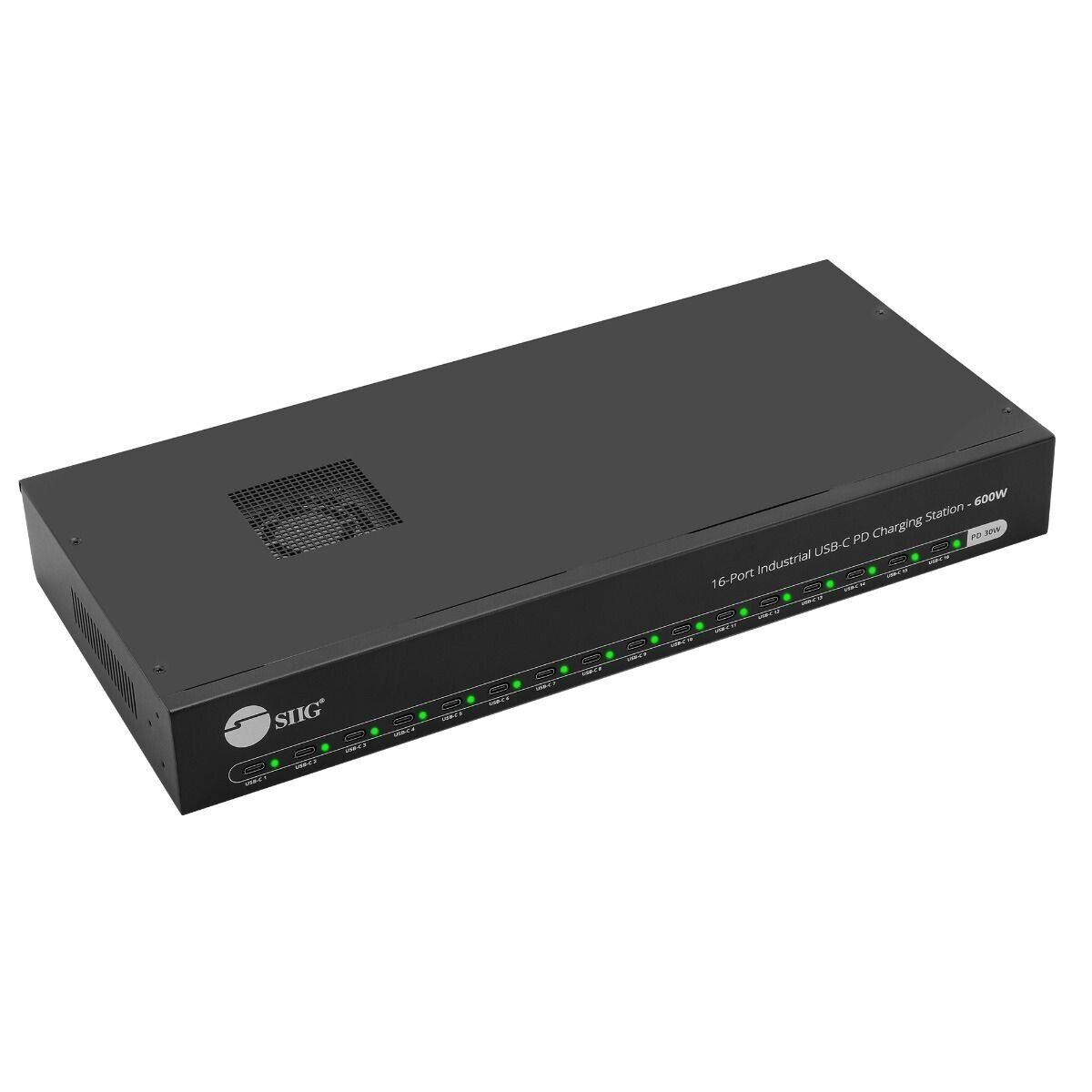

SIIG ID-US0A11-S1 16-Port Industrial USB-C PD Charging Station 600W 5V 9V 12V

Overview

Industrial grade power charging station adds 16 USB-C charging ports, 30W per port, PD 2.0 & 3.0 for 5V/3A, 9V/3A and 12V/2.5A, Over Current, Over Voltage, Over Heating, Short Circut, ESD Protection, Metal Housing, UL Certification

Features
Unrivaled Charging Capability

• 600W total power output ensures sufficient power for all connected devices

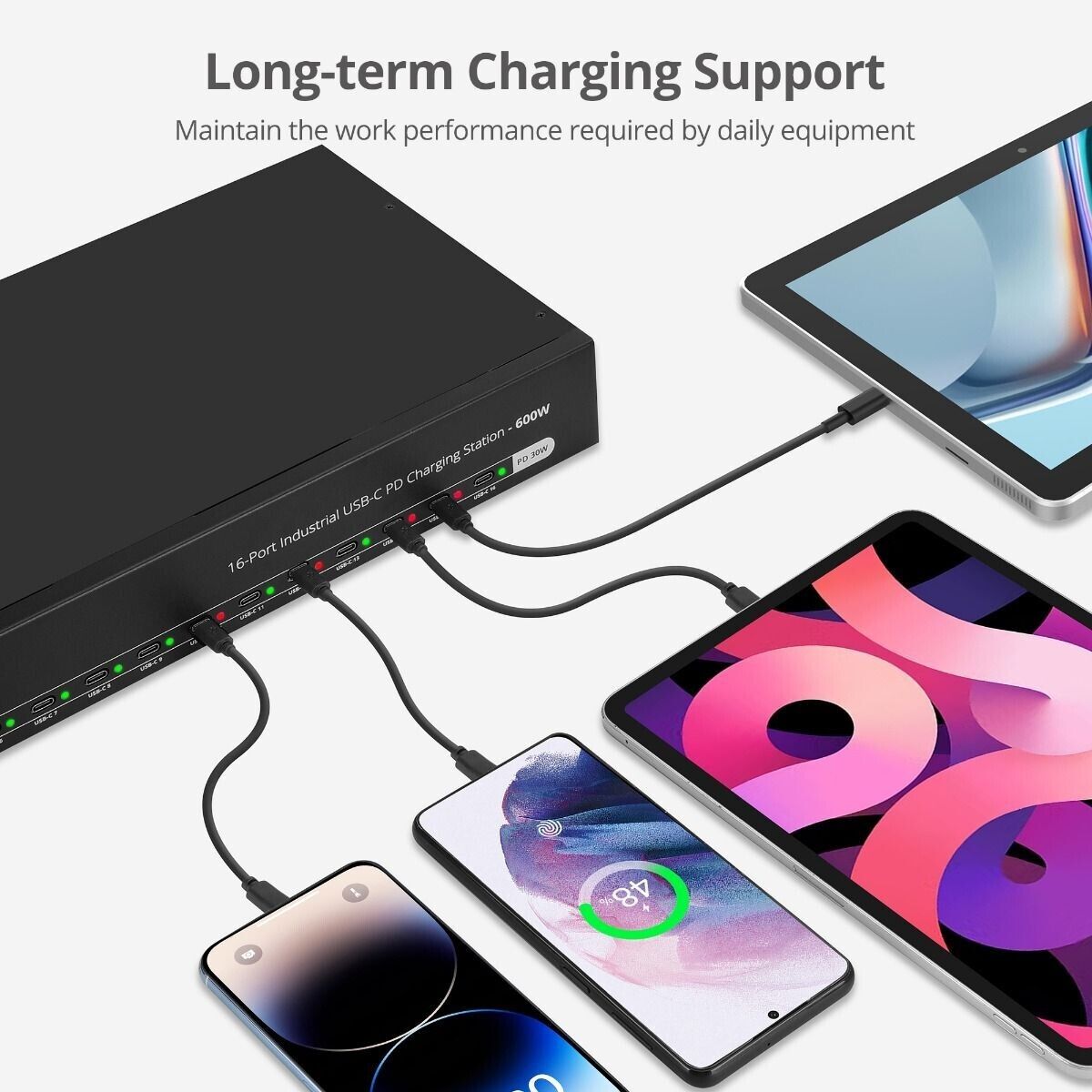

• 16 USB-C charging ports, per ports offer up to 30W for charging smartphones, wearables, and other devices
• Supports PD 2.0 & 3.0 ensuring compatibility with a wide range of devices
• Multiple voltage outputs: 5V/3A, 9V/3A, and 12V/2.5A for flexible charging options
• Built-in Meanwell brand power IC with UL certification

SPECIFICATIONS

• Chipset: IP6520T
• Internal Power Supply: 600W–24V Meanwell switching power supply
• Input:
  • Input Voltage: 110VAC
  • Frequency: 50Hz / 60Hz
  • Input Current: 12A/115VAC
• Output
  • USB Port: 16 x USB-C, Female
  • PD output power: 30W (5V/3A, 9V/3A, 12V/2.5A)
  • Efficiency: VIN=24V, VOUT=5V/3A, Conversion Efficiency is 92%
• USB-C Protocol
  • Support 5V / 9V / 12V Voltage output
  • Support PD 2.0 / PD 3.0
  • PPS support 3 to 11V, 20mV/step Voltage output
• Output specification
  • Support USB-C PD output
  • Support BC 1.2_DCP, Apple, Samsung protocol
  • Support Qualcomm QC2.0 / QC3.0
  • Support MTK PE+1.1 and MTK PE+2.0
  • Support Fast Charging protocol FCP and AFC (Max 12V)

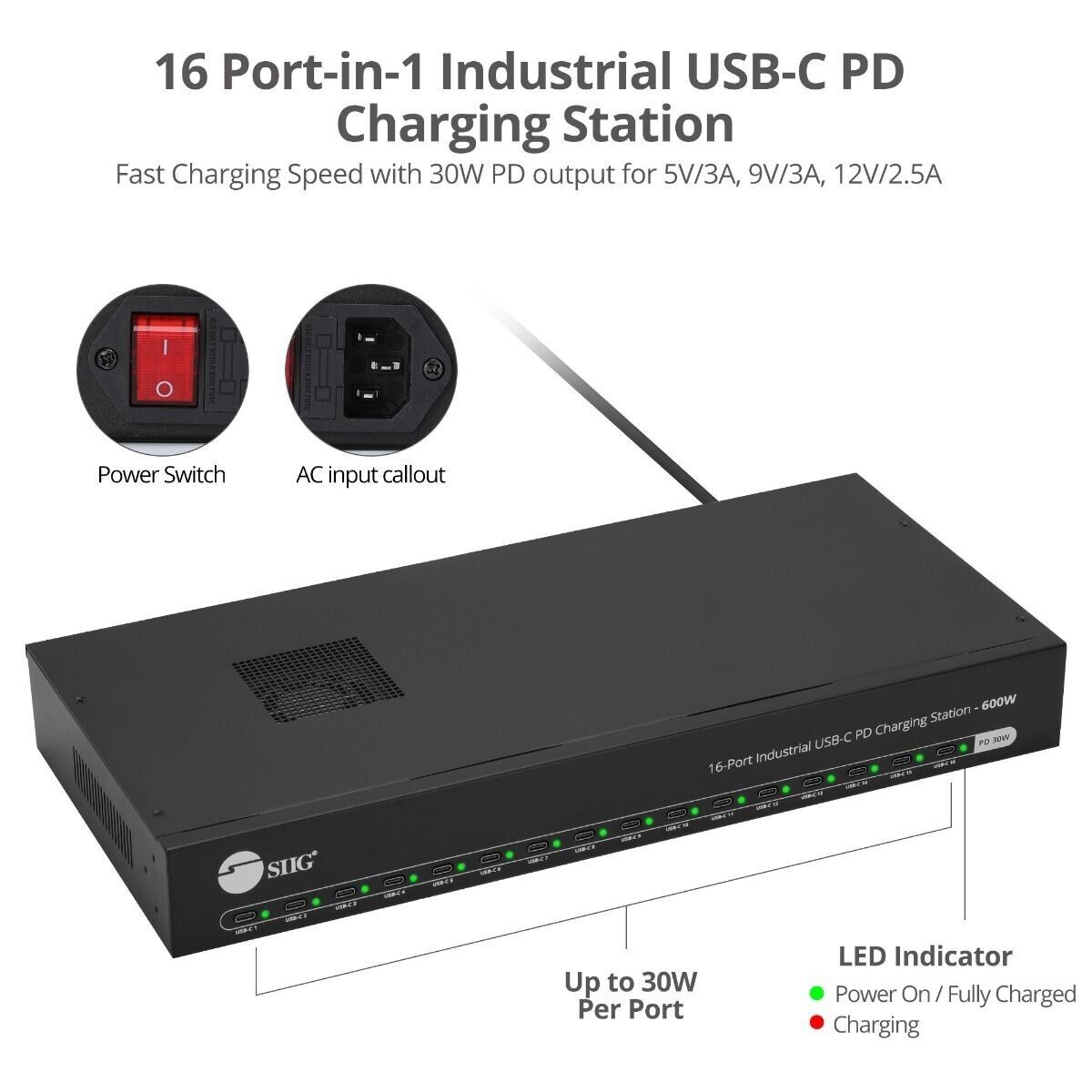

• LED indicators:
  • Charging in progress: RED color
  • Power On or Fully charged: GREEN color
• Output overcurrent protection: output >3.5 to 3.9A, USB port current output automatic disconnect
• Output overvoltage protection: When the output terminal voltage>16V or more due to an accidental cause, the TVS discharge on the terminal circuit causes the input circuit fuse to open, cutting off power to the circuit and thus protecting the equipment at this port
• Product:

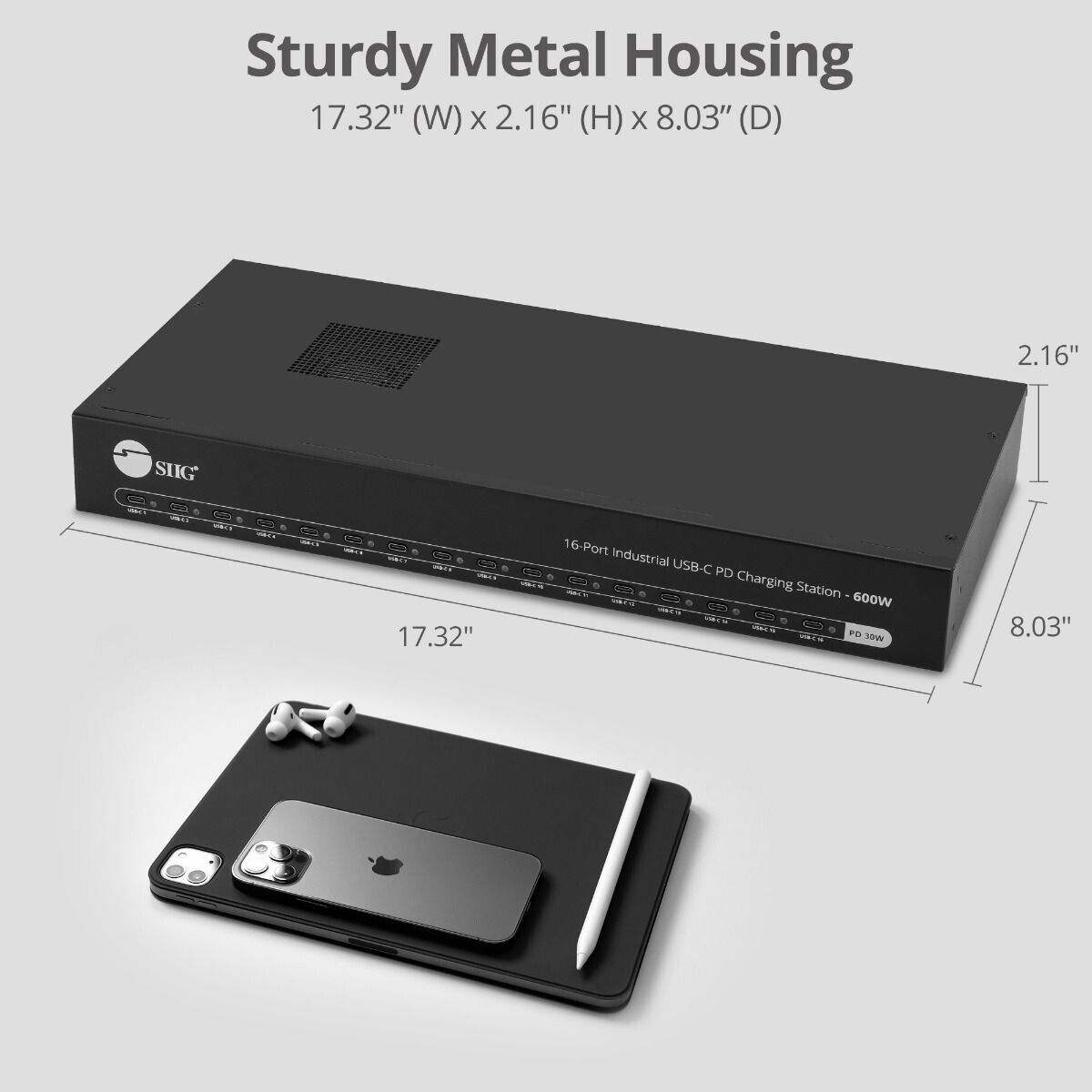

  • Dimensions: 17.32"(W) x 2.16"(H) x 8.03"(D)
  • Weight: 6.38 lbs
  • Color: Black

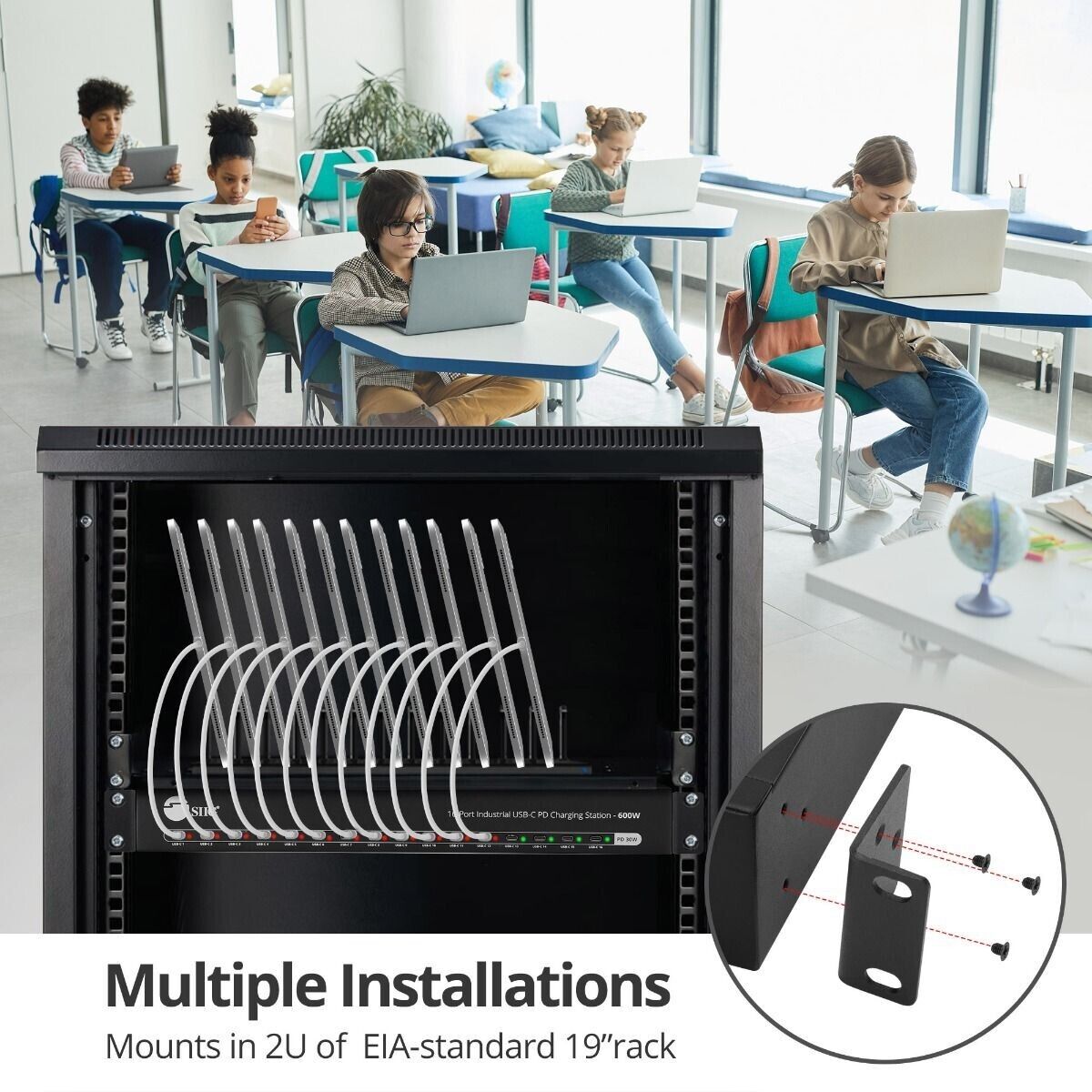

  • Housing: Metal housing with standard 19 inch rack mounting
• Connectors:
  • 1x AC Power Jack
  • 1x Power Switch
  • 16x USB Type-C, Female, USB device connection
• Unit Package:
  • Dimensions: 22.32" (W) x 3.27" (H) x 9.72" (D)
  • Weight: 7.44 lbs
• Environmental conditions:
  • Operating temperature: 14 to 131 degrees F
  • Storage temperature: -4 to 158 degrees F
  • Relative humidity: 20% to 90% RH (non-condensing)
  • Working Altitude: Less than 2km
• Certifications/Standards: FCC, CE, RoHS, UL
  • UL E183223
• Warranty: 2 year limited from SIIG
• Country of origin: Engineered in USA, Manufactured in China

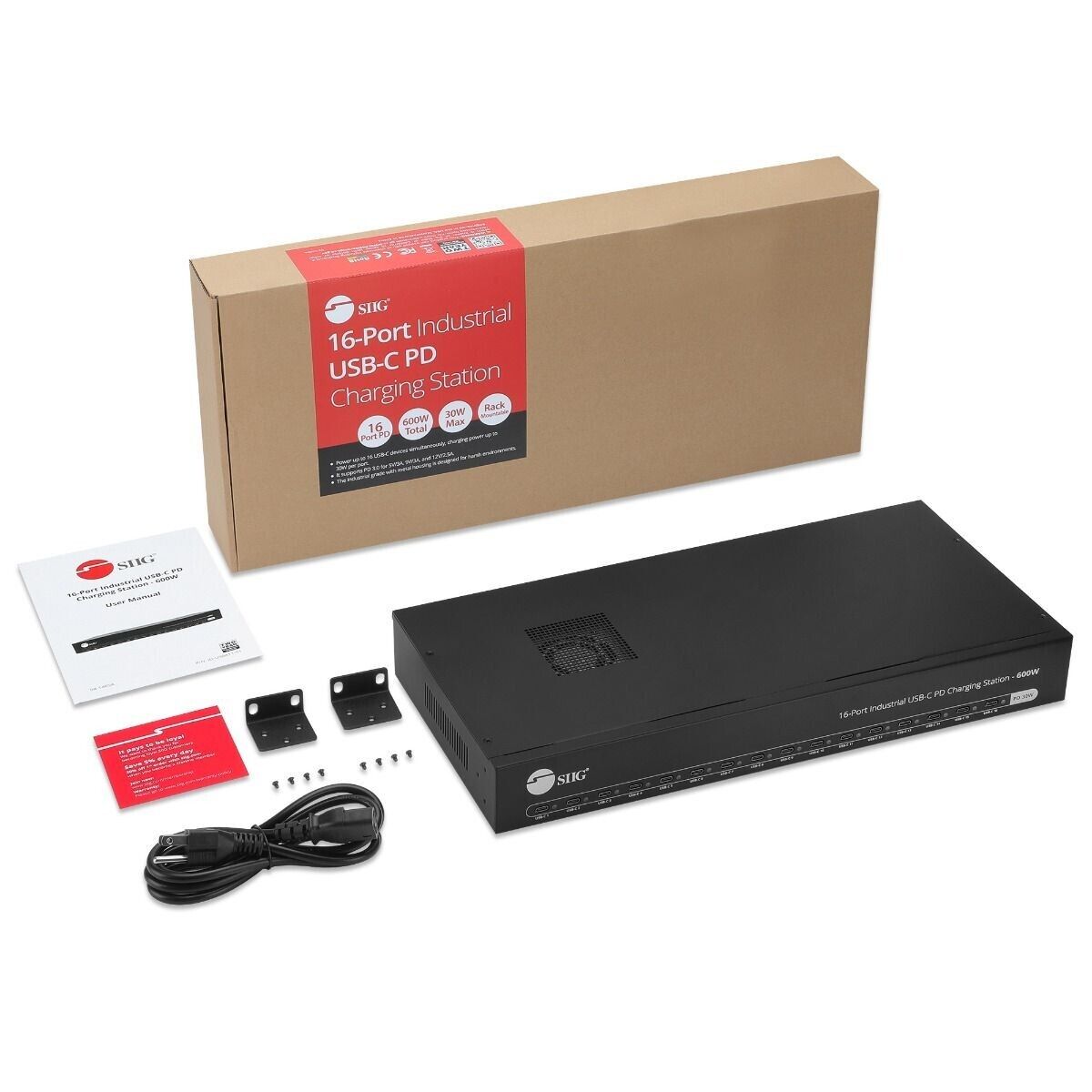

Package contents

• 16-Port Industrial USB-C PD Charging Station - 600W
• Power cord
• Mounting Bracket (2)
• User Manual
