SIIG JU-P40A11-S1 4 Port USB 3.0 Type A 5Gbps Low Profile PCIe Expansion Card

Features

• Industry-recognized chipset - This PCIe card is built with industry-recognized chipset uPD720201 from Renesas for prominent and steady performance.
• Controller Interface - Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Revision 1.0 specification.

Benefits

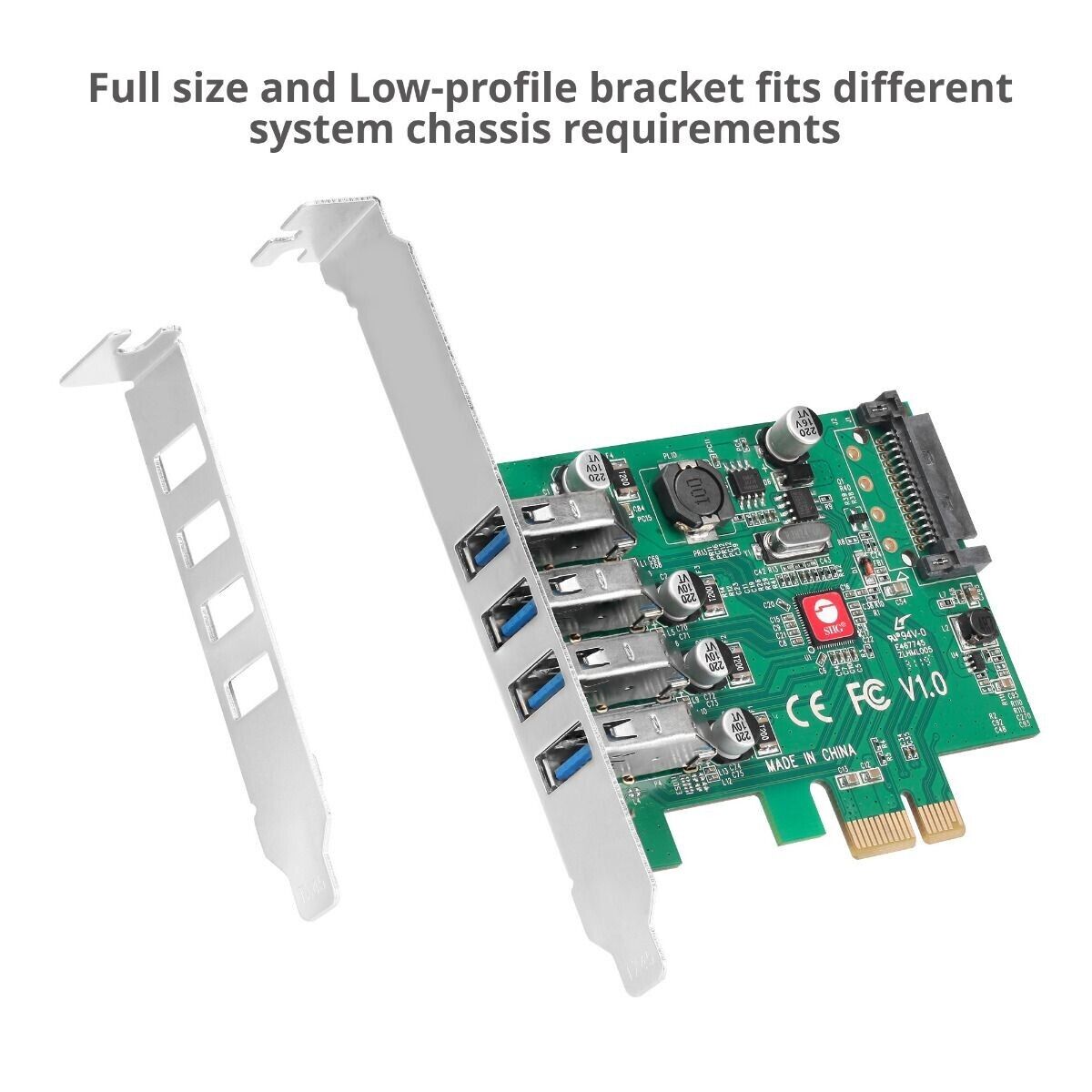

• Dual Profile Design - Full and low profile brackets are both provided for different form factor chassis.
• Over-Current Protection - Each USB port features over-current protection to protect your connected device from power surges.

Specifications

• Chipset: Renesas uPD720201
• Compliant with USB 3.0 Specification
• Bus connector: PCI Express 1x
• Version: PCI Express 2.0

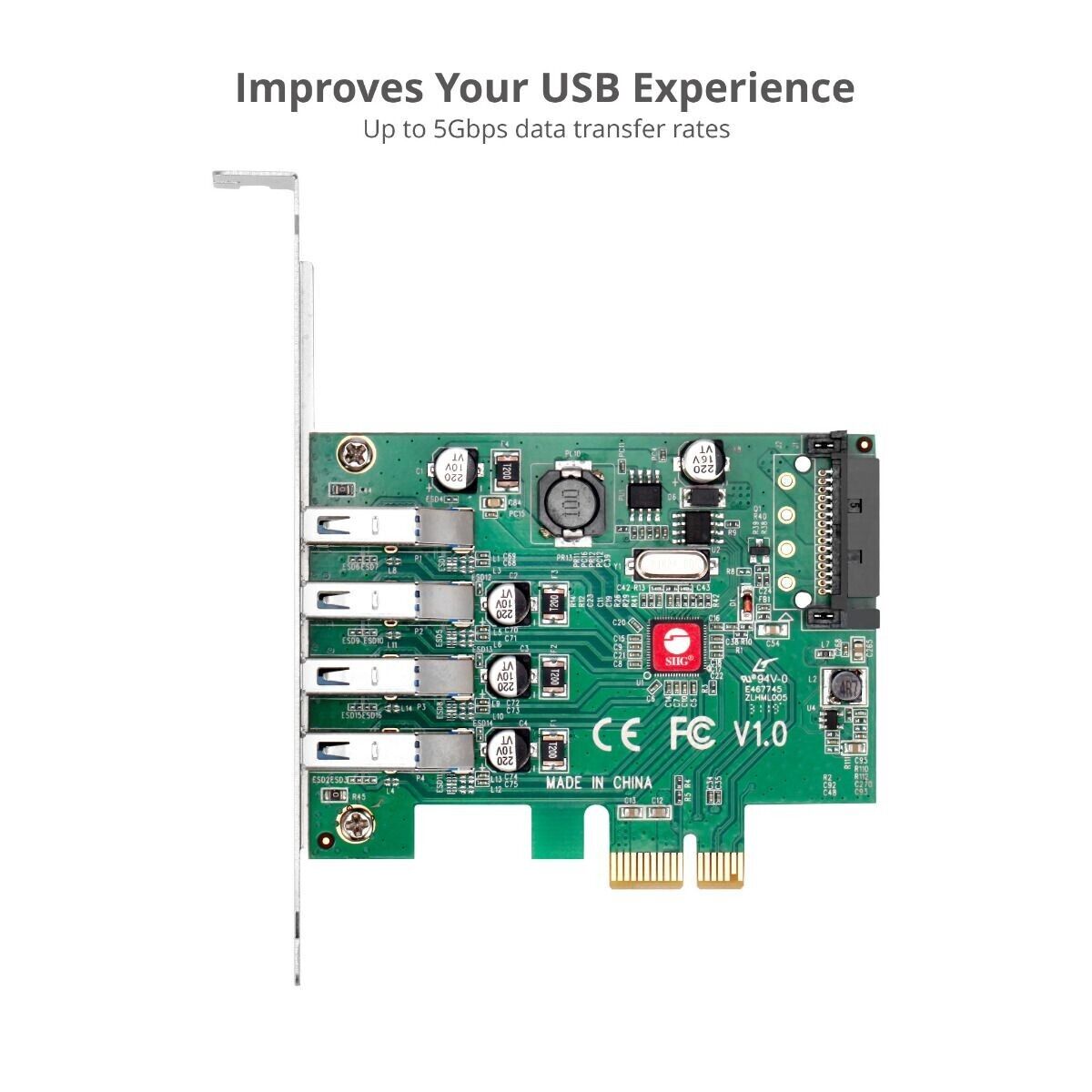

• USB data transfer rate: Up to 5Gbps
• Per port over-current protection
• USB power output: Up to 5V/900mA
• Product Dimensions
  • 3.35" (L) x 0.79" (H) x 2.68" (W)
  • Weight: 0.15 lbs
  • PCB Color: Green
• Connectors:
  • 4x 9-pin USB 3.0 Type A, Female

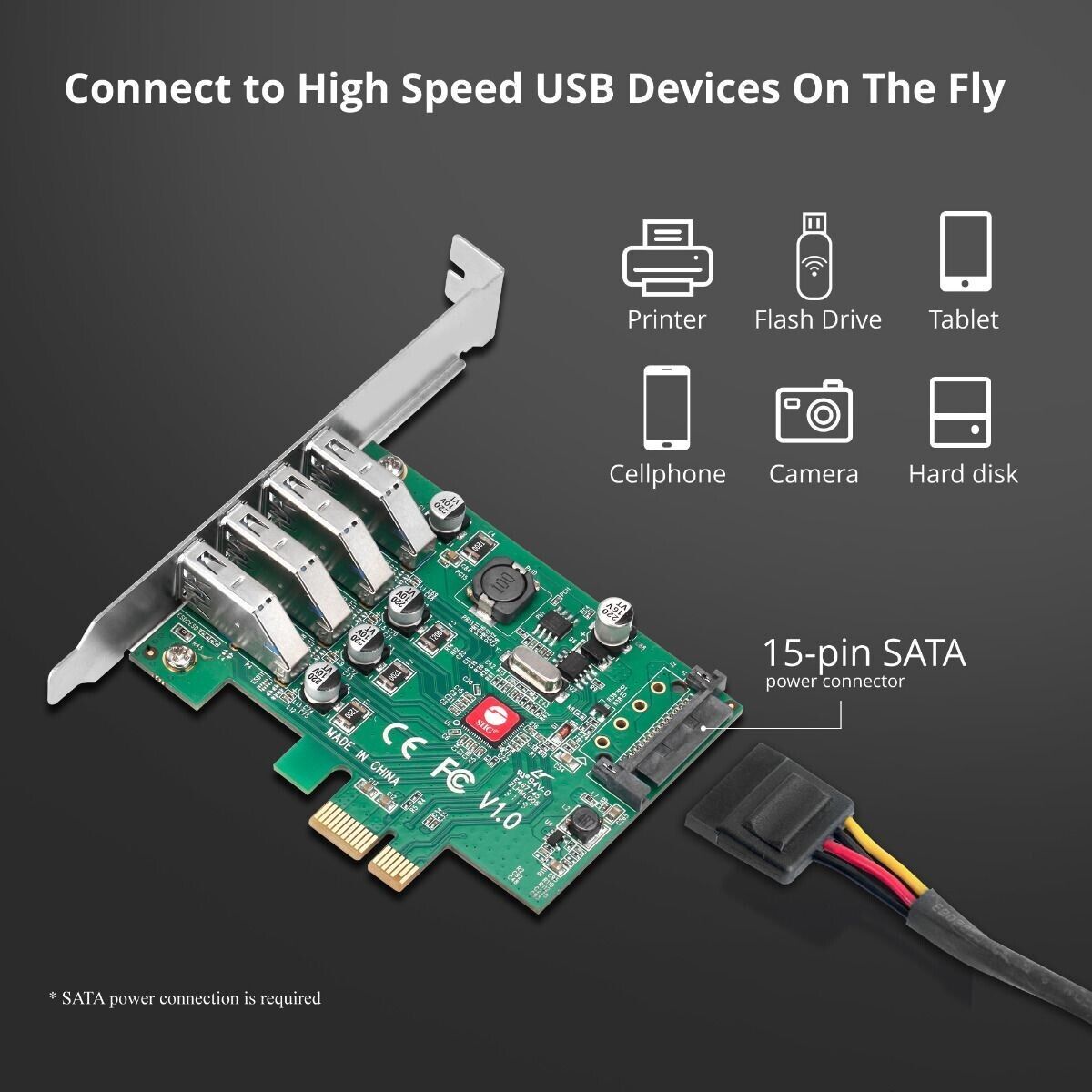

  • 1x 15-pin SATA power connector
  • SATA power connection is required
• Unit Package:
  • Dimensions: 7.40" (W) x 1.18" (H) x 5.48" (D)
  • Weight: 0.30 lbs
• Environmental conditions:
  • Operating temperature: 32 to 140 degrees F
  • Storage temperature: 14 to 158 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years from SIIG
• Country of origin: China

System Requirements

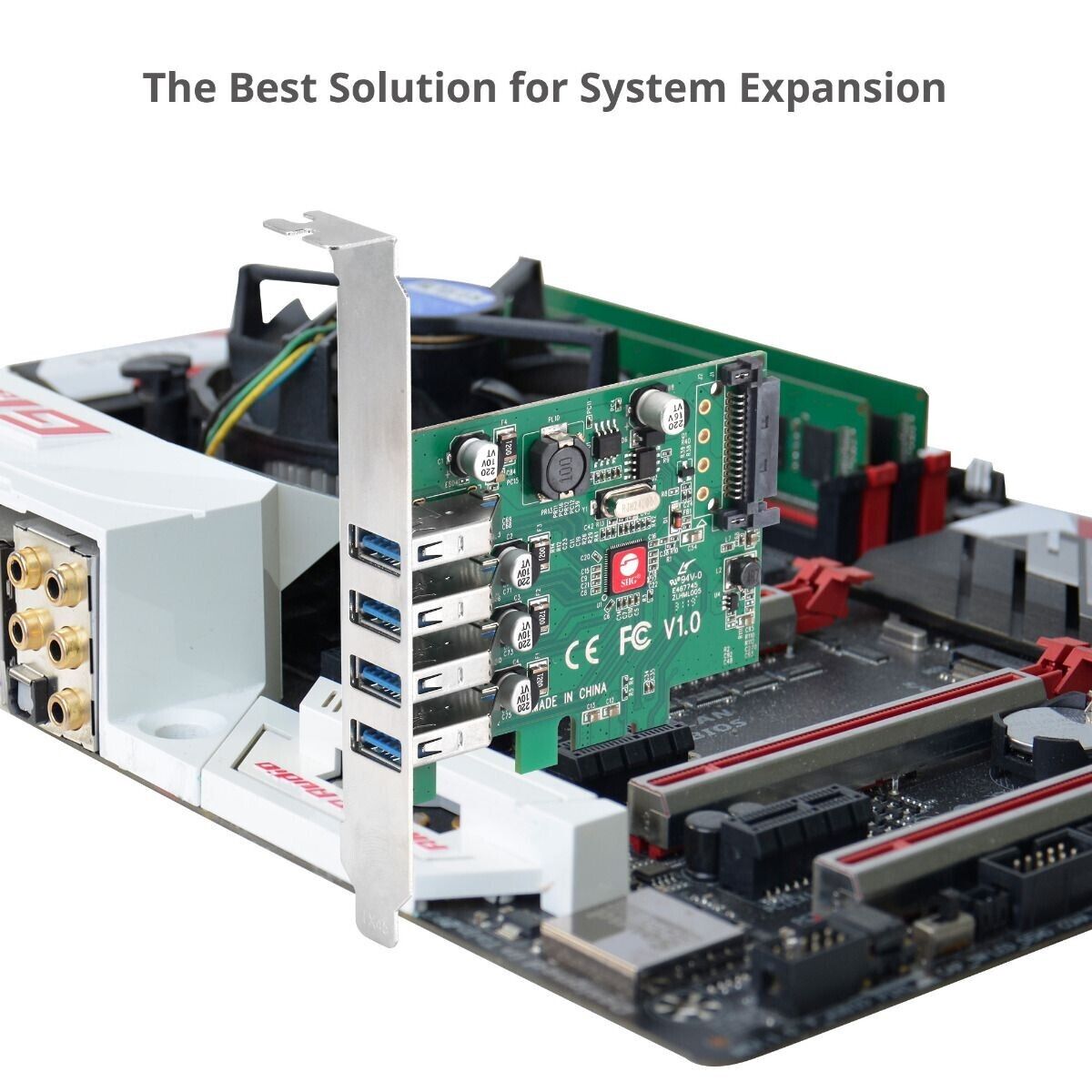

• Desktop PC with one available PCI Express (PCIe) slot
• SATA power connection is required

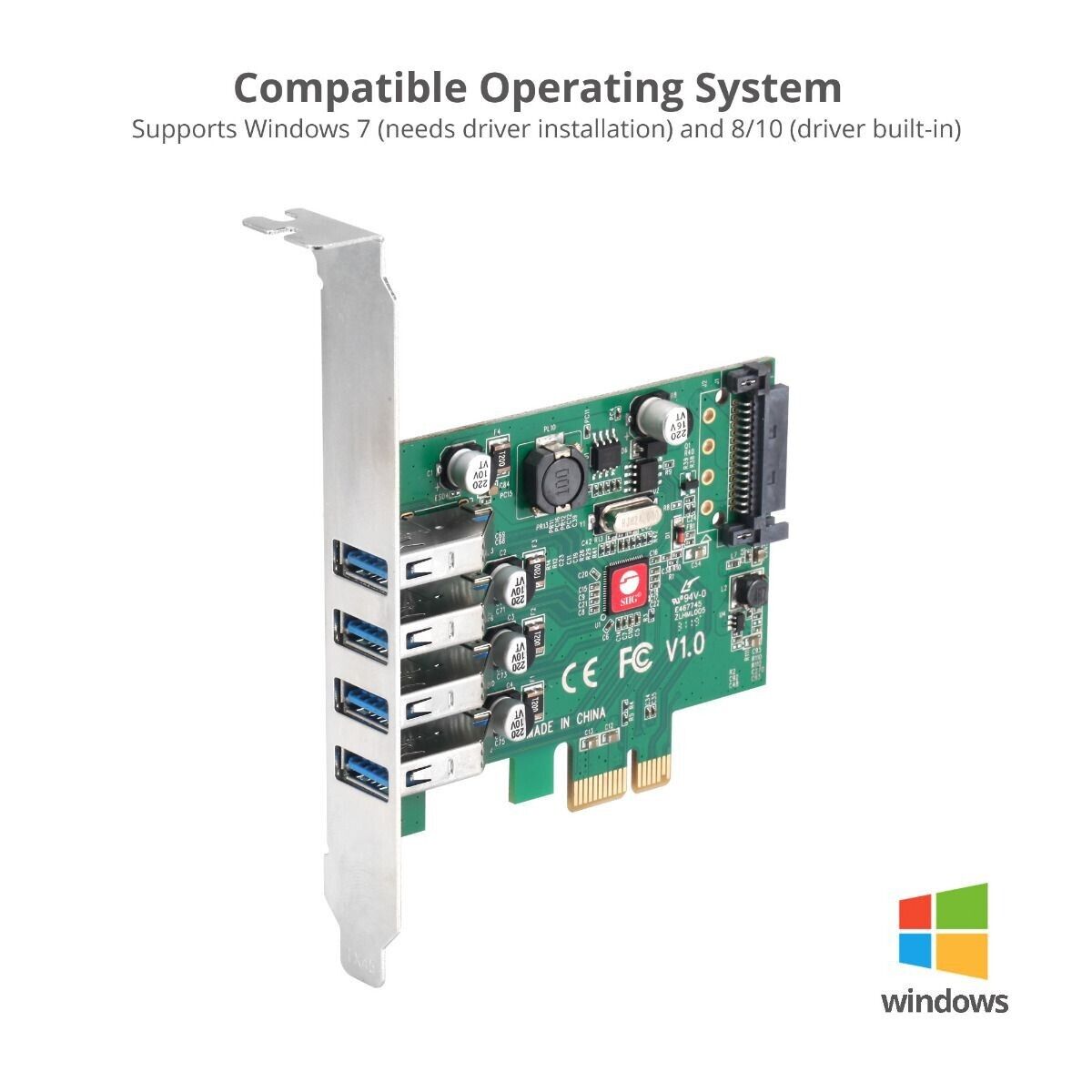

• Windows® 11 (64-bit) /10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
• Windows® Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008

Package contents

• DP USB 3.0 4-Port PCIe Host Card
• Low profile bracket
• Driver CD
• Quick Start Guide
