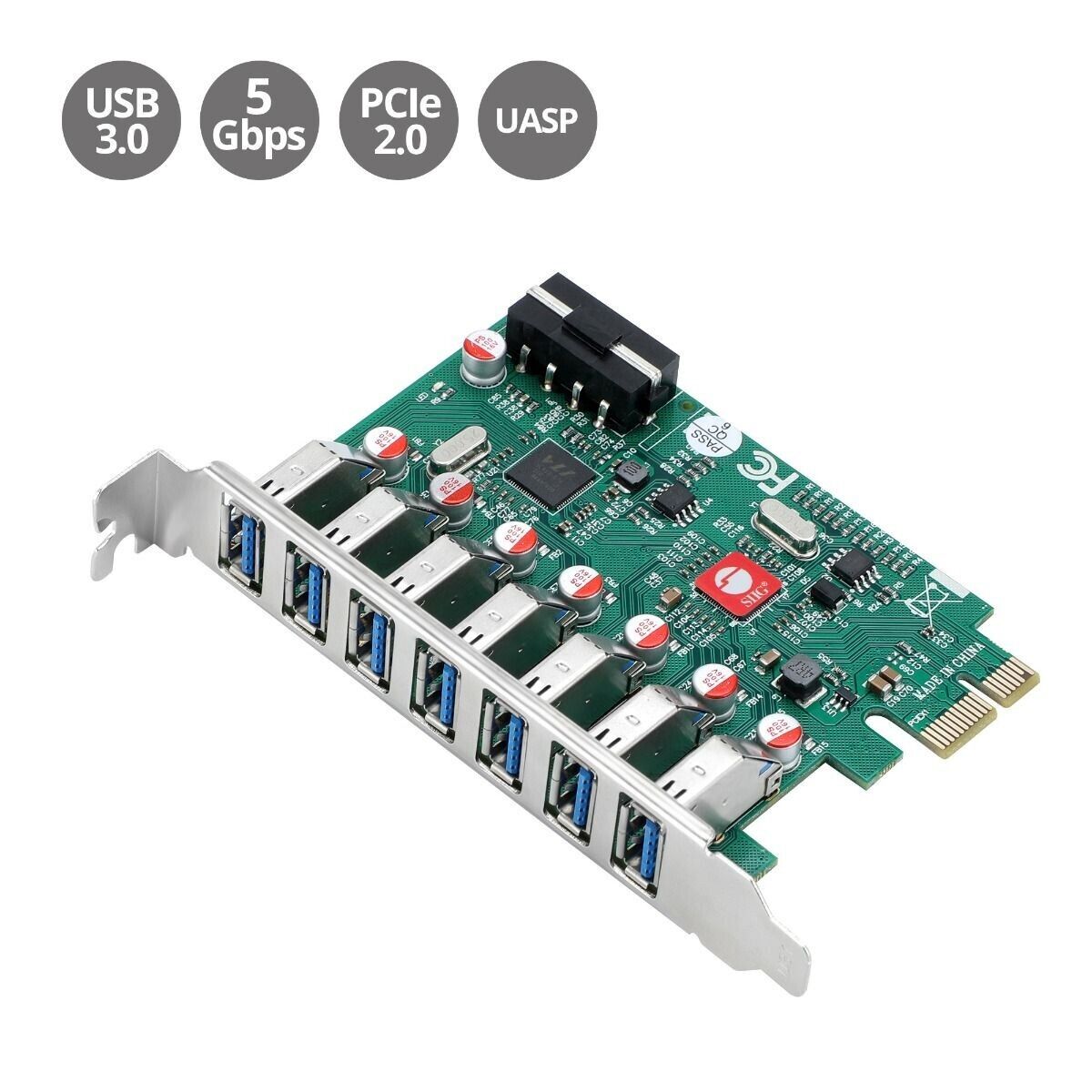

SIIG JU-P70211-S1 7 Port USB 3.0 Type A 5 Gbps PCIe 2.0 Expansion Card w Molex

Features

• Quickly expands 7 independent external USB 3.0 Type-A ports through a PCI Express slot for connecting a variety of USB devices
• Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission
• Compliant with PCI Express 2.0 specifications, using high-performance VIA 805 chipset
• Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices

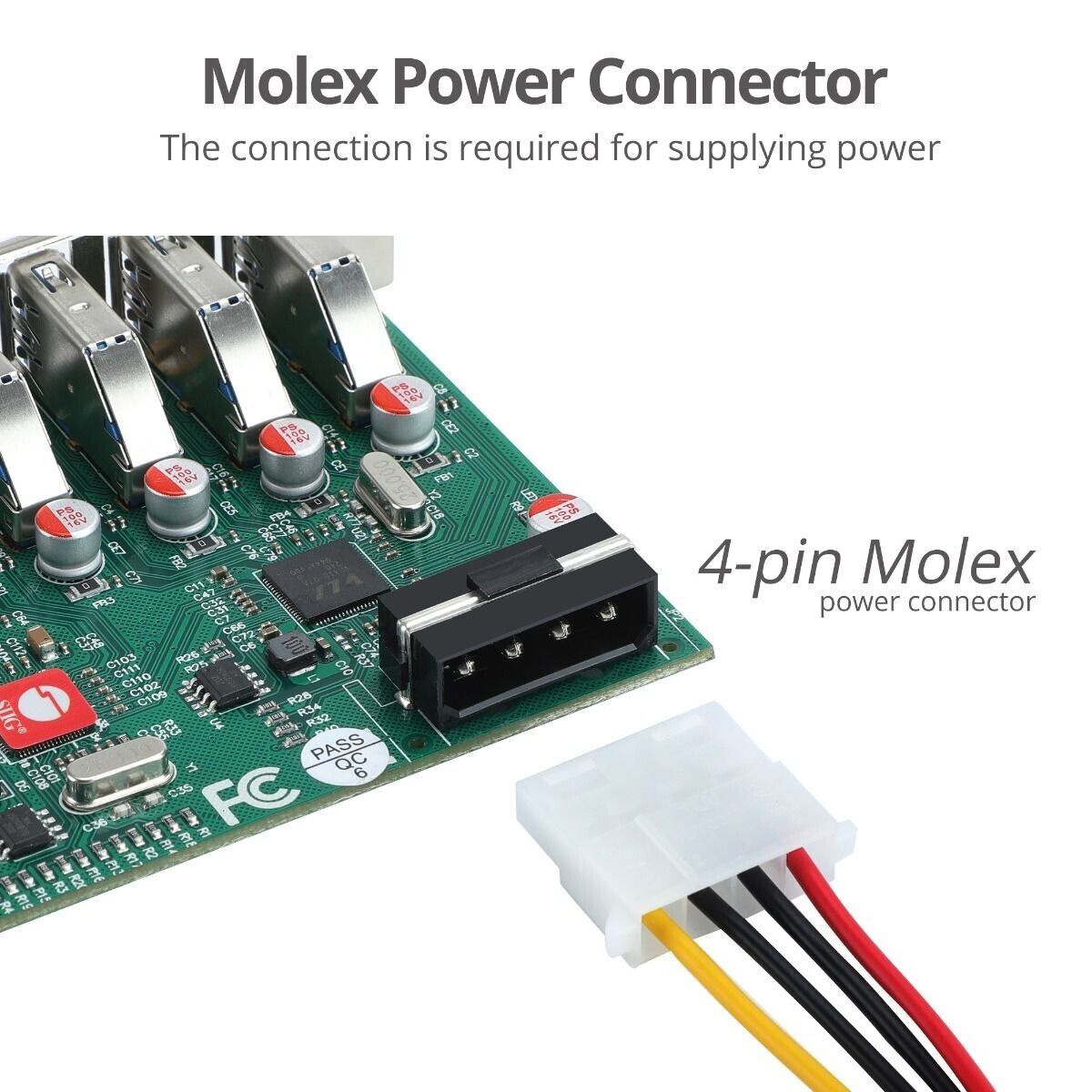

• Each port provides power output up to 900mA and Molex power connection is required
• Compliant with Intel xHCI (eXtensible Host Controller Interface) revision 1.0 specifications
• Over-Current protection function can further protect your connected devices
• The multi-port feature allows connecting several existing peripheral devices simultaneously and avoids frequent plug in and plug out

Specifications

• Chipset: VIA VL805+VL812

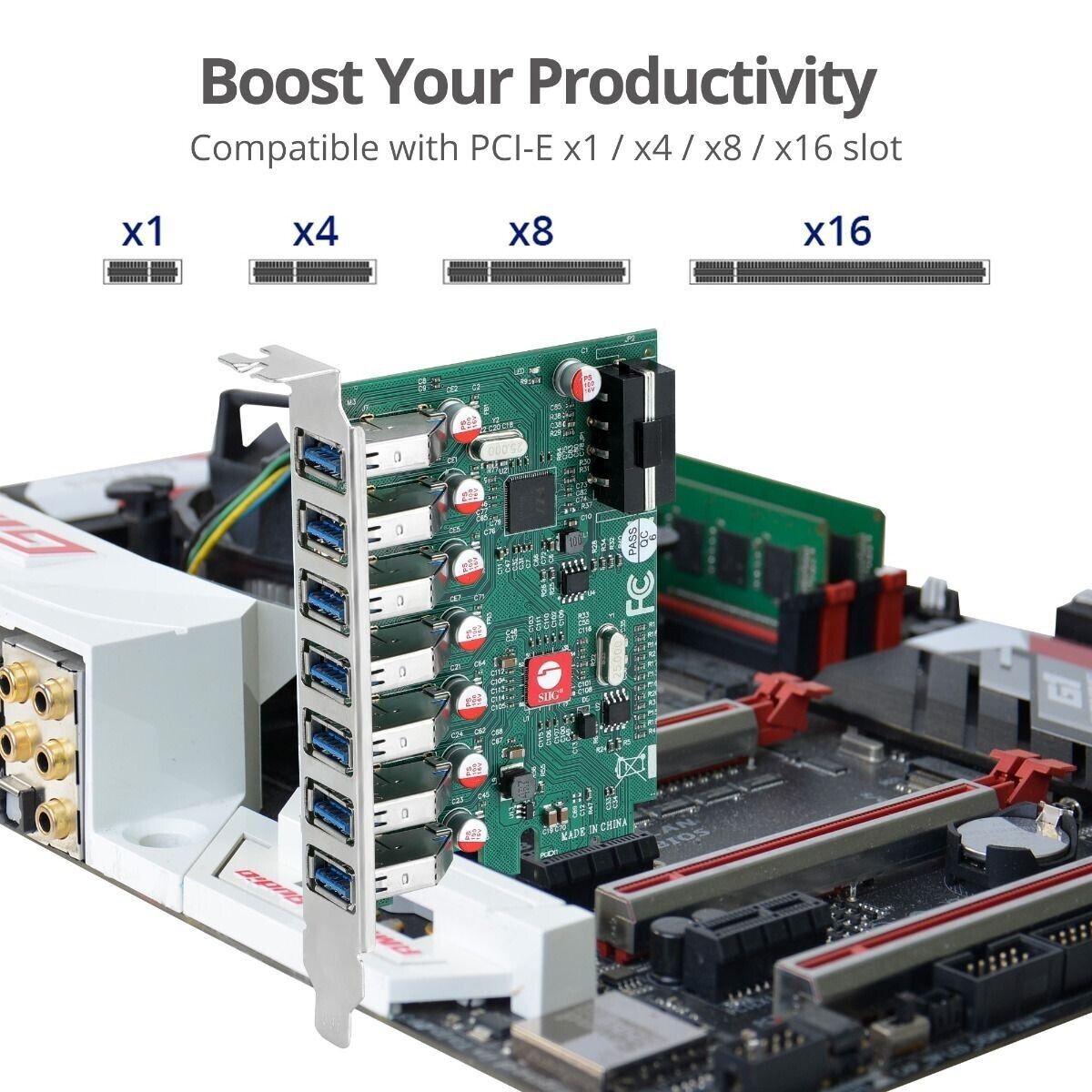

• Bus connector: one lane (x1) PCI Express
• PCIe card type: full profile
• Version: PCI Express 2.0
• USB data transfer rate: 5Gbps / 480Mbps / 12Mbps / 1.5Mbps
• USB power output: up to 900mA per each (Molex power connection is required)
• Power consumption: 3W (Max.)
• Connectors: 7x 9-pin USB 3.0 Type-A, Female
• Product:
  • Dimensions: 4.72” (W) x 0.83” (H) x 3.31” (D)
  • Weight: 0.15lbs
  • Color: Black
• Unit Package:
  • Dimensions: 6.89” (W) x 1.18” (H) x 4.92” (D)
  • Weight: 0.29lbs
• Environmental conditions:
  • Operating temperature: 32 to 140 degrees F
  • Storage temperature: 14 to 158 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years from SIIG
• Country of origin: China

System Requirements

• Desktop PC with an available PCI Express slot (one lane/x1)
• Windows® 11 (64-bit) /10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• Windows® Server 2016 / 2012 R2 / 2012 / 2008 R2 / 2008 (32-/64-bit)

Package contents

• 1x USB 3.0 7-Port PCIe Host Card
• 1x Molex power cable
• 1x User reference guide
