SonicWall 03-SSC-3031 TZ80 Network Security/Firewall Appliance

General Information

• Manufacturer: SonicWall Inc.
• Manufacturer Part Number: 03-SSC-3031
• Brand Name: SonicWall
• Product Series: TZ
• Product Model: TZ80
• Product Name: TZ80 Network Security/Firewall Appliance
• Product Type: Network Security/Firewall Appliance

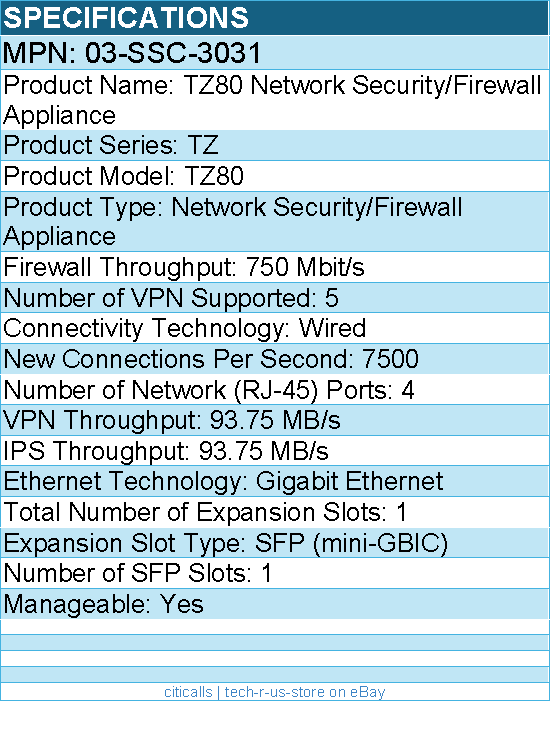

Technical Information

• Functionality: Intrusion Prevention
• Firewall Protection Supported:
  •     Intrusion Prevention
  •     Malware Protection
  •     Application Control
  •     Content Filtering
  •     Anti-spyware
  •     URL Filtering
  •     Threat Protection
  •     Secure IPsec VPN Connectivity
  •     Deep Inspection Firewall
  •     Gateway Antivirus
  •     SSL Inspection
  •     TLS Inspection
  •     Dead Peer Detection
  •     Deep Packet Inspection (DPI)
• Firewall Throughput: 750 Mbit/s
• Encryption Standard:
  •     DES
  •     3DES
  •     MD5
  •     SHA-1
  •     AES (128-bit)
  •     AES (192-bit)
  •     AES (256-bit)
• Number of VPN Supported: 5
• Data Link Protocols:
  •     TCP/IP
  •     HTTP
  •     HTTPS
  •     L2TP
  •     PPTP
• Connectivity Technology: Wired
• New Connections Per Second: 7500

Interfaces/Ports

• Total Number of Ports: 4
• USB: Yes
• Number of Network (RJ-45) Ports: 4

Media & Performance

• VPN Throughput: 93.75 MB/s
• IPS Throughput: 93.75 MB/s

Network & Communication

• Ethernet Technology: Gigabit Ethernet

I/O Expansions

• Total Number of Expansion Slots: 1
• Expansion Slot Type: SFP (mini-GBIC)
• Number of SFP Slots: 1

Management & Protocols

• Manageable: Yes

Power Description

• Frequency:
  •     50 Hz
  •     60 Hz
• Power Consumption: 11.60 W

Physical Characteristics

• Form Factor:
  •     Desktop
  •     Compact
• Height: 1.2"
• Width: 7.9"
• Depth: 4.5"
• Weight (Approximate): 15.45 oz

Miscellaneous

• Application/Usage:
  •     Enterprise
  •     Business
  •     Home Office
  •     Network
  •     Small Office
  •     Security

Additional Information:

• Network Management Network Security Manager (2.6 and above), CLI, SSH, Web UI, REST APIs
• Network / Transport Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
• Routing Protocol OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
• Firewall: 750 Mbps
• Threat Prevention: 750 Mbps
• Application Inspection: 750 Mbps
• Intrusion Prevention System (IPS): 750 Mbps
• Anti-malware throughput: 750 Mbps
• TLS/SSL Inspection & Encryption (DPI SSL): 250 Mbps
• IPSEC VPN: 750 Mbps
• Operating System - SonicOS

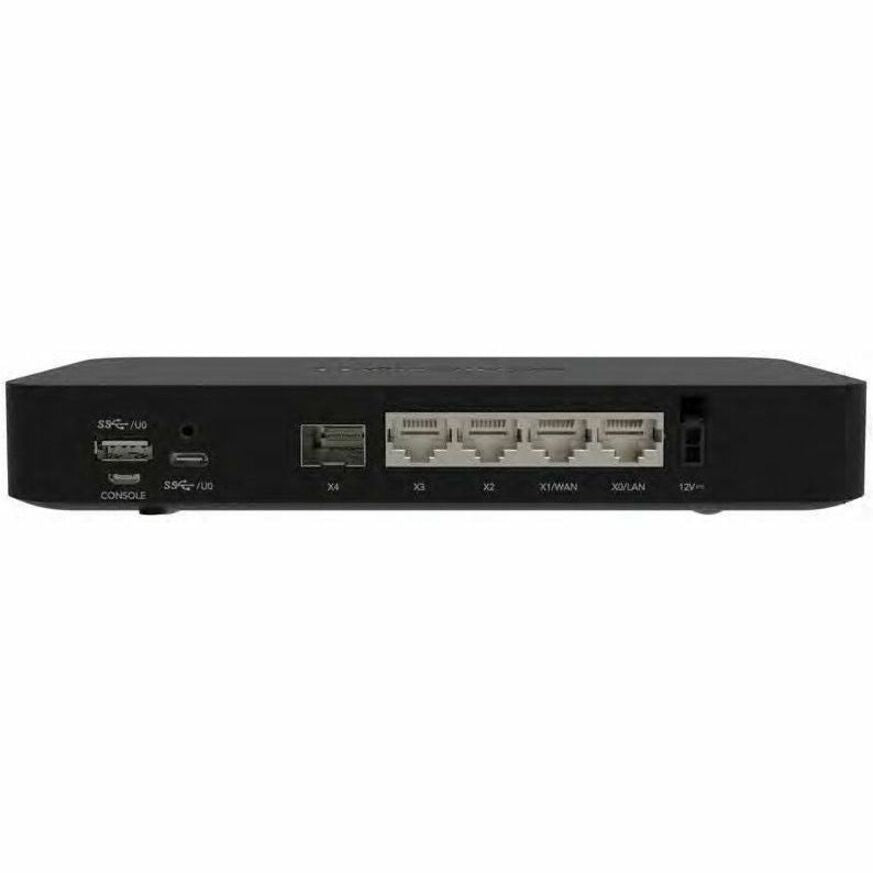

• Interfaces - 4 * 1GbE Cu, 1*1G SFP, 1 console, 1 USB (USB type-C or USB type-A)
• Management - Network Security Manager (2.6 and above), CLI, SSH, Web UI, REST APIs
• Single Sign-On (SSO) Users - 250
• VLAN interfaces - 64
• Access Points Supported (Maximum) - 2
• Firewall inspection throughput - 750 Mbps
• Threat prevention throughput - 750 Mbps
• Application inspection throughput - 750 Mbps
• IPS thoughput - 750 Mbps
• Anti-malware inspection throughput - 750 Mbps
• TLS/SSL inspection and encryption throughput (DPI SSL) - 250 Mbps
• IPSEC VPN throughput - 750 Mbps
• Connections per second - 7500
• Maximum connections (SPI) - 300000
• Maximum connections (DPI) - 75000
• Maximum connections (DPI SSL) - 10000
• Site-to-site VPN tunnels - 50
• IPSec VPN clients (maximum) - 1(5)
• SSL VPN licenses (maximum) - 1(5)
• Key exchange Diffie Hellman Groups - 1, 2, 5, 14v
• Route-based VPN - RIP, OSPF, BGP
• Certificate support - Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
• Global VPN client platforms supported - Microsoft® Windows 10 and Windows 11
• NetExtender - Microsoft® Windows 10 and Windows 11, Linux
• Mobile Connect - Apple® iOS, Mac OS X, Google® Android™
• Power supply - 36W
• Input power - 100-240 VAC, 50-60Hz, 3A
• Total heat disipation (BTU) - 39.6
• WEE weight - 0.755 Kg
• MTBF @26°C in years - 64.3
• Environment(Operating/Storage): 0°C to ~+ 40°C / -40°C to ~ +70°C
• Humidity: 5-95% non-condensing

Certifications & Standards:

•     FCC Class B
•     ICES Class B
•     CE (EMC, LVD)
•     RCM
•     VCCI Class B
•     UL
•     cUL
•     CB
•     Mexico DGN by UL
•     BSMI
•     KCC/MSIP
•     ANATEL
•     TEC/MTCTE

Environmental Compliance:

•     Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
•     Restriction of Hazardous Substances (RoHS)
•     Waste Electrical and Electronic Equipment Directive (WEEE)
