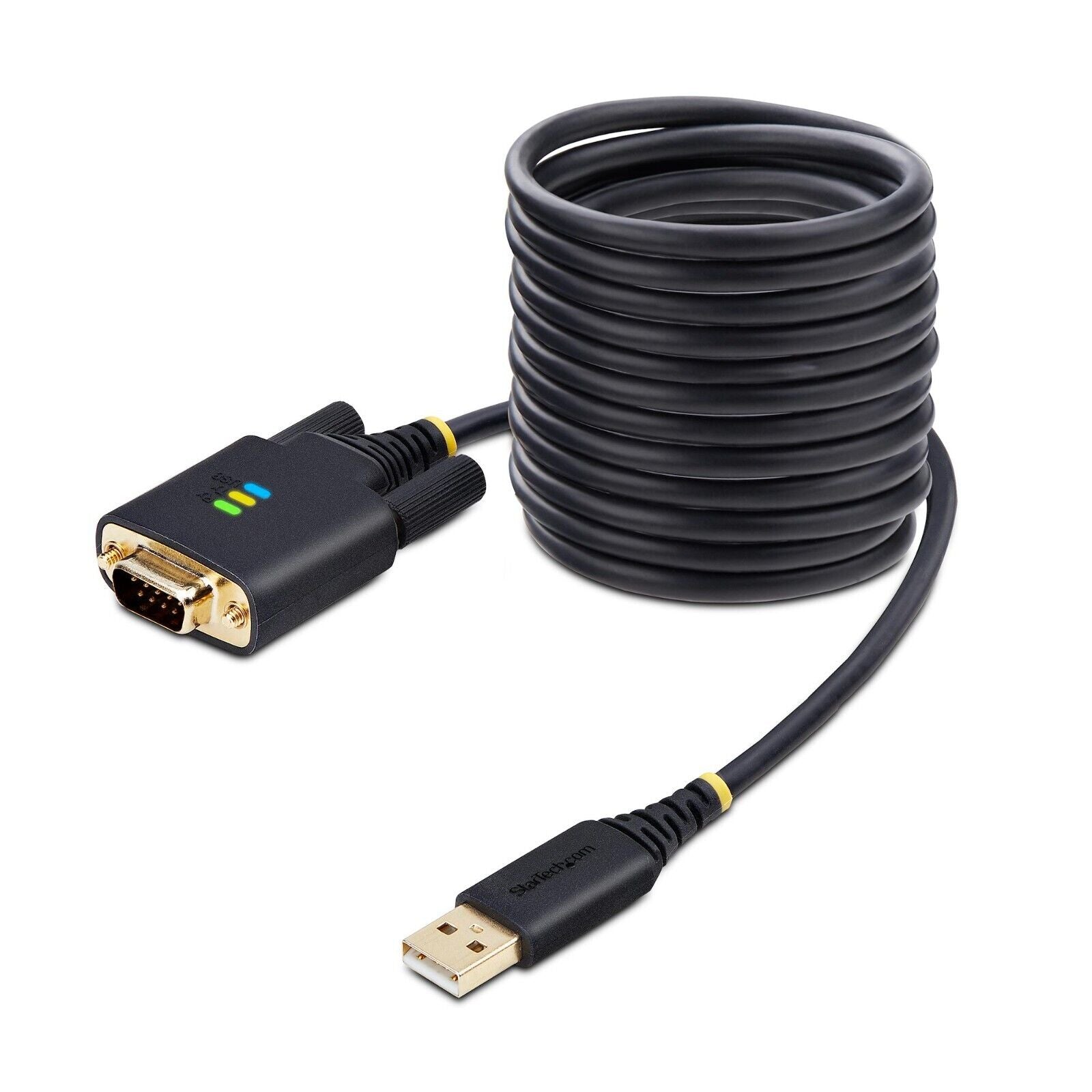

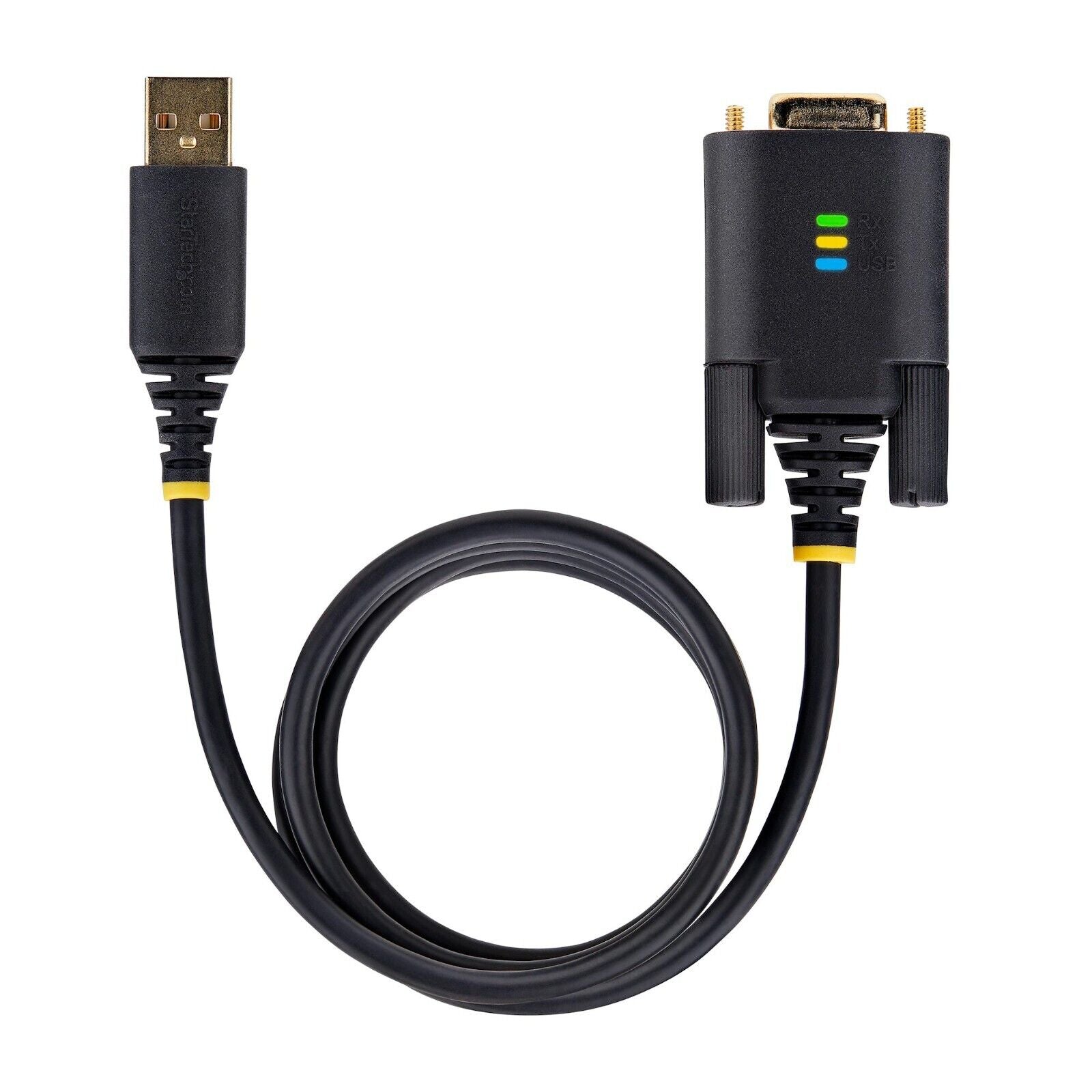

StarTech 1P10FFC-USB-SERIAL 10Ft USB to RS232 DB9 Serial Cable COM Retention
Current product
Current
Vendor:
Startech
StarTech 1P10FFC-USB-SERIAL 10Ft USB to RS232 DB9 Serial Cable COM Retention
Regular price
$55.76 USD
Sale price
$55.76 USD
Regular price
$52.99 USD
Options
Descriptions
10ft (3m) USB to Serial Adapter Cable, COM Retention, Interchangeable Screws/Nuts, USB-A to DB9 RS232, FTDI IC, ESD Protection, Windows/macOS/Linux
Add an RS232 serial port to a laptop or desktop, using an available USB-A port
Warranty Information
Warranty
2 Years
Connector(s)
Connector A

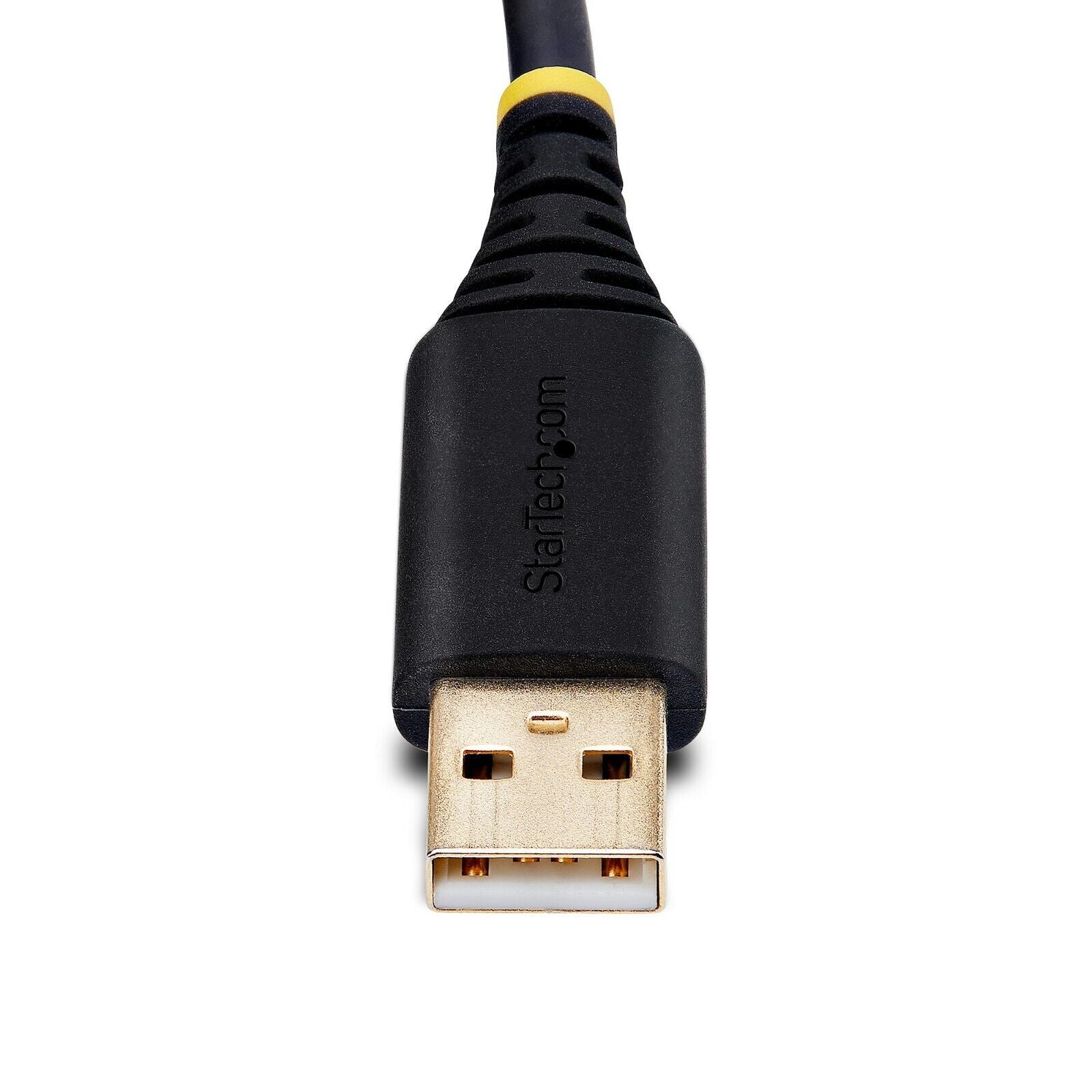

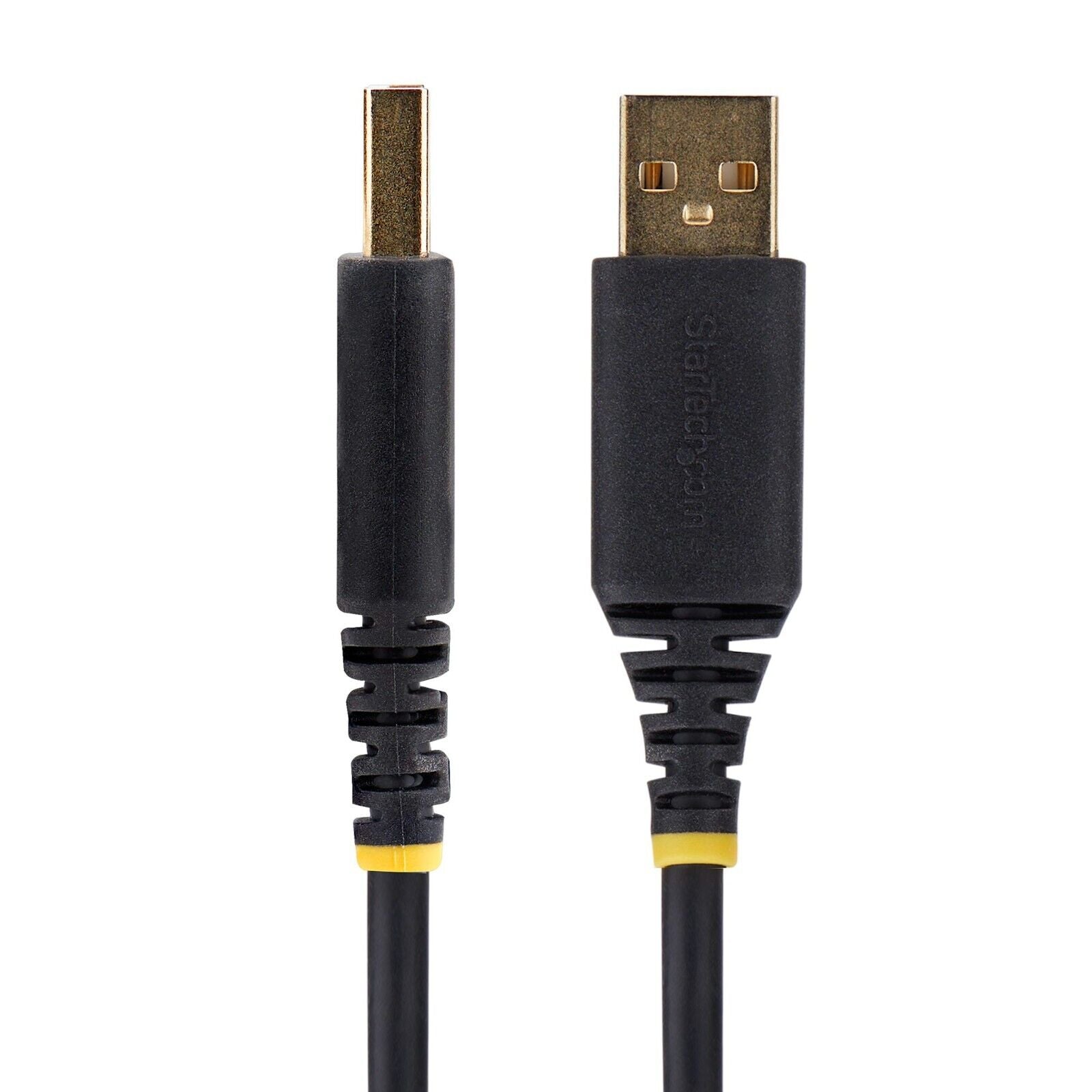

1 - USB 2.0 Type-A (4 pin, 480Mbps)
Connector B

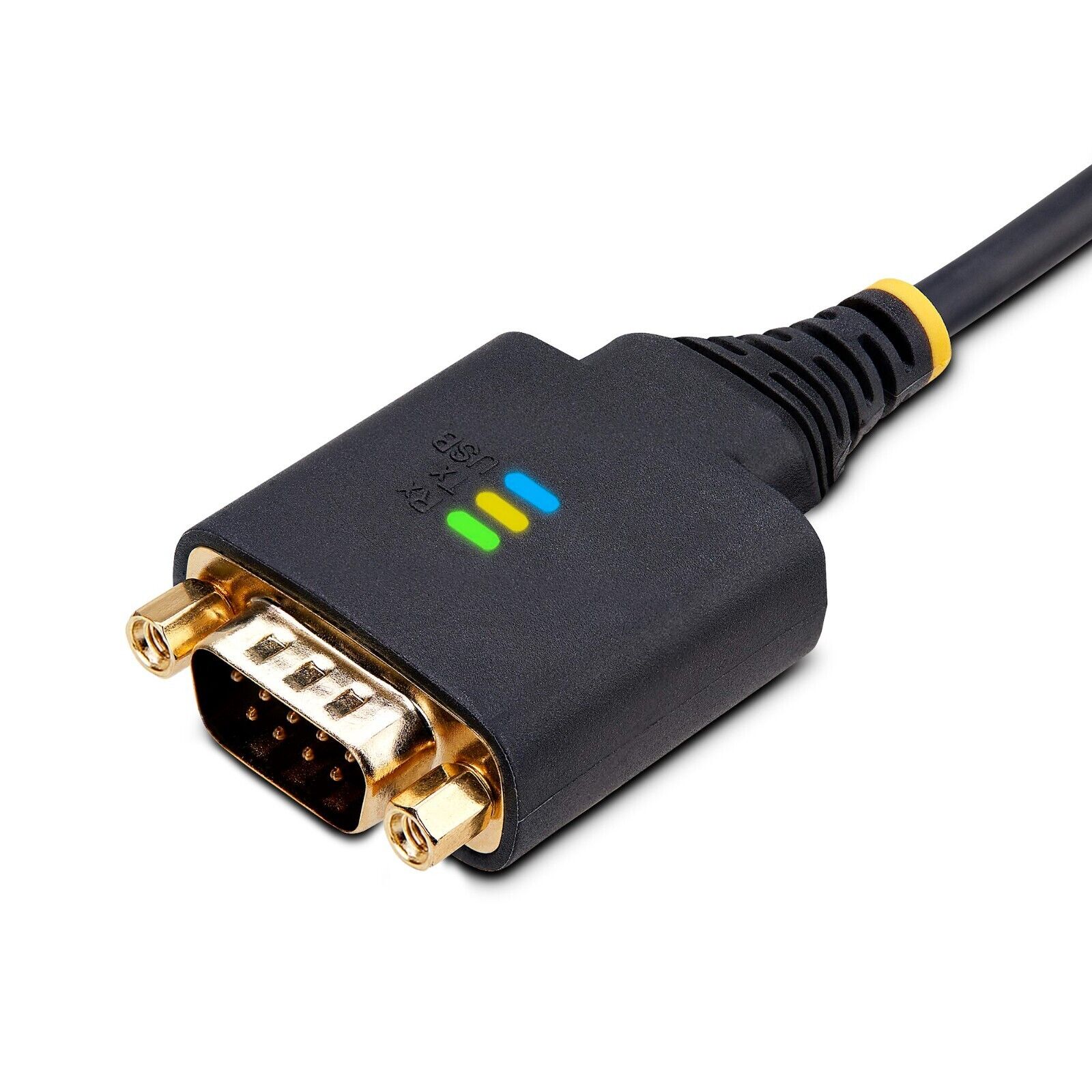

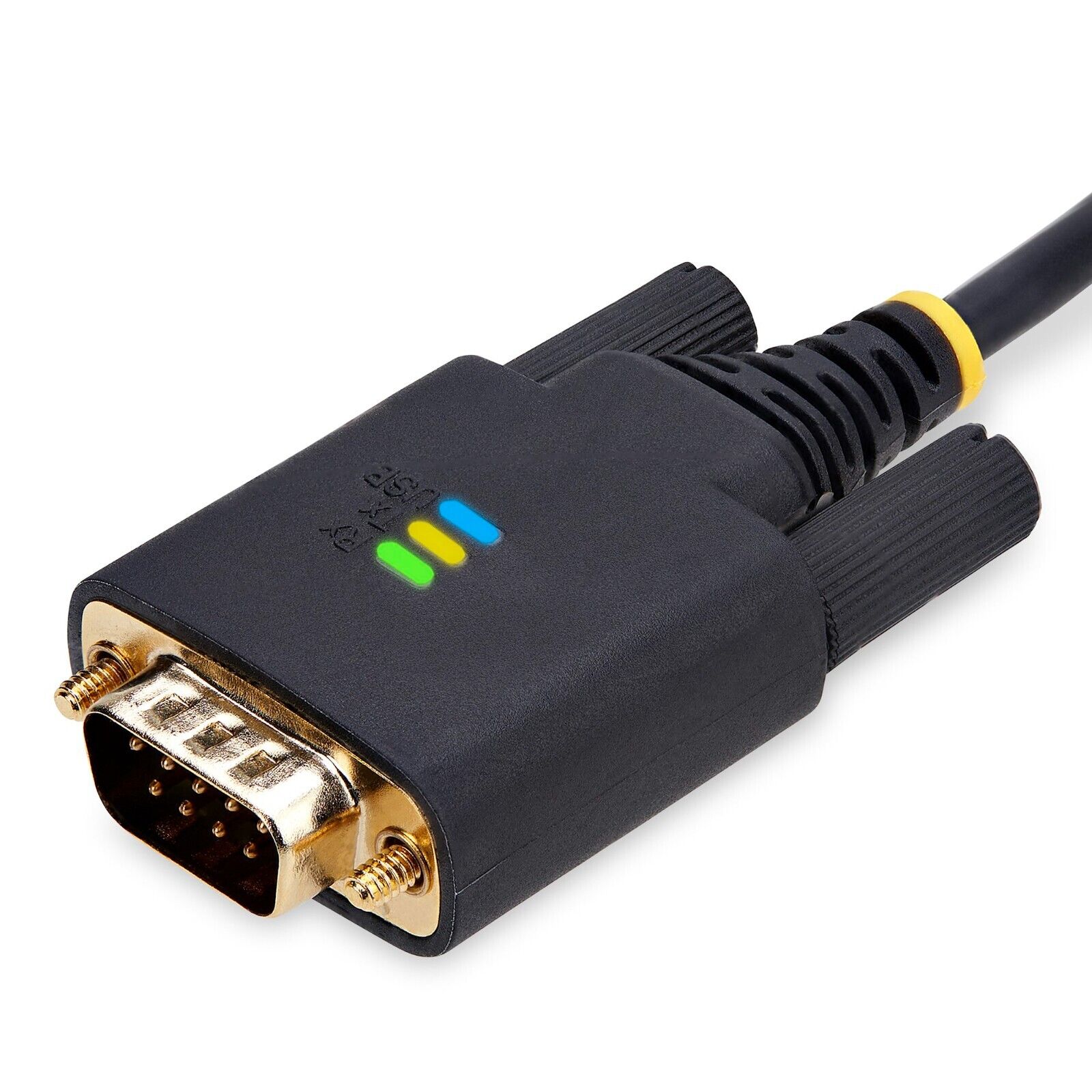

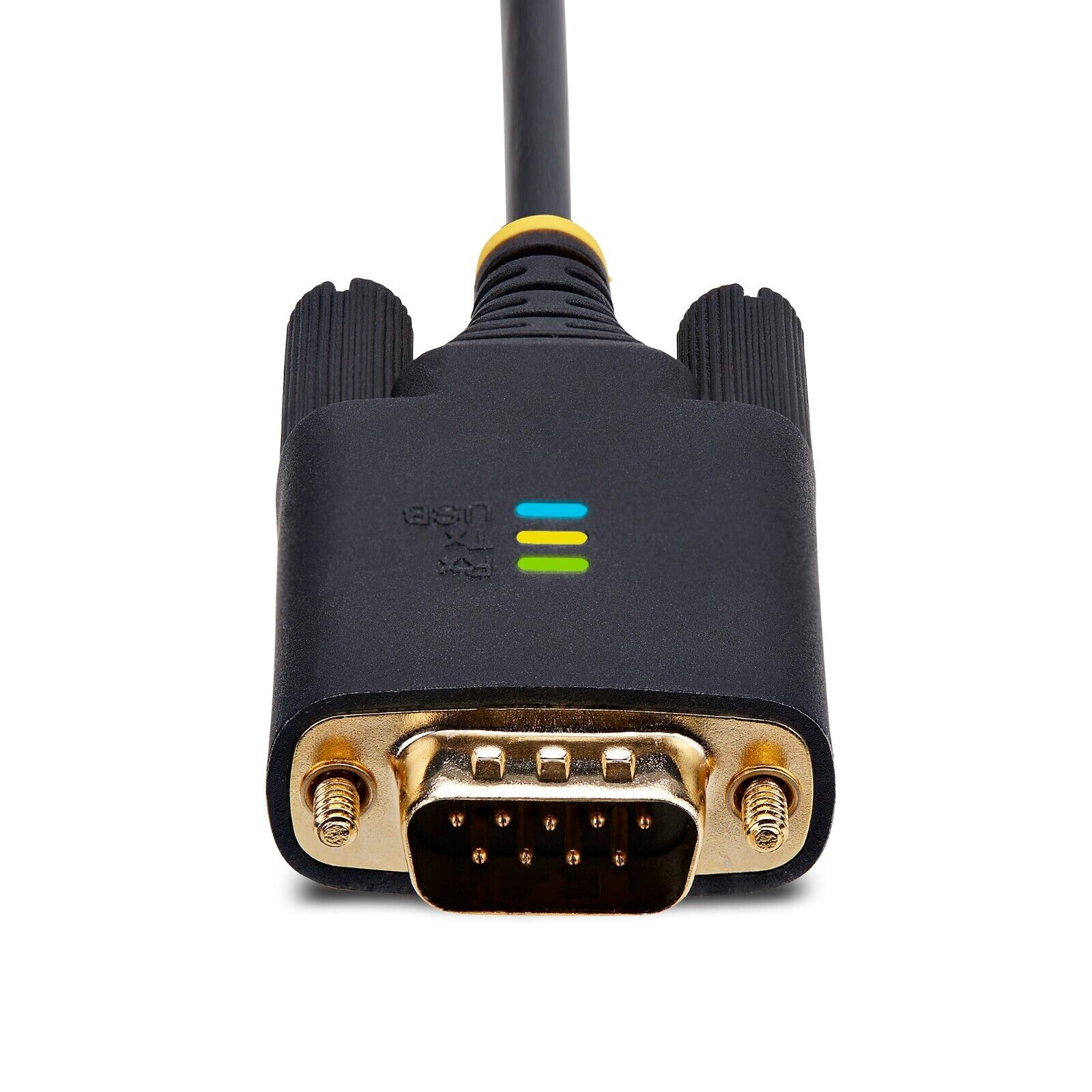

1 - 9 pin D-Sub (DB-9) Male
Environmental
Operating Temperature
-40°C to 80°C (-40°F to 176°F)
Storage Temperature
-40°C to 80°C (-40°F to 176°F)
Humidity
0% ~ 95% RH (non-condensing)
Hardware
Ports
1
Interface
Serial
Bus Type
USB 2.0
Port Style
Cable Adapters
Industry Standards
USB 2.0/1.1
RS-232
Chipset ID
FTDI - FT232R

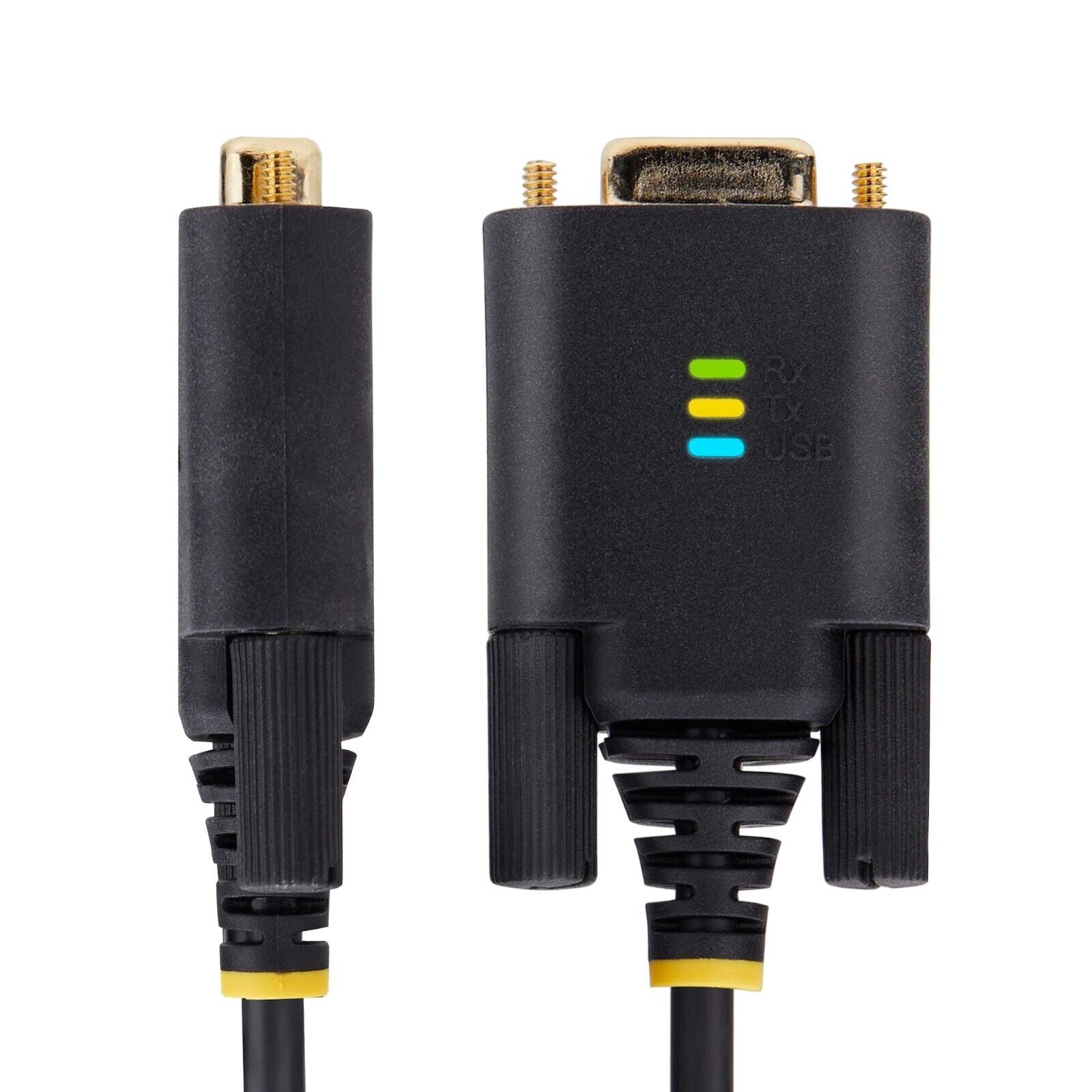

Indicators
LED Indicators
1 - Data Receive LED: Flashes Green to indicate activity
1 - Data Transmit LED: Flashes Yellow to indicate activity
1 - USB LED: Solid Blue to indicate driver has been installed, and USB connection enumerated
Packaging Information
Package Quantity
1
Package Height
1.0 in [2.5 cm]
Package Length
7.9 in [20.0 cm]
Shipping (Package) Weight
4.8 oz [135.0 g]
Package Width
8.7 in [22.0 cm]
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
7, 8
FIFO
128 Byte RX Buffer
256 Byte TX Buffer
256 Byte TX Buffer
Parity
Even, Odd, None, Space, and Mark
Stop Bits
1, 2
Physical Characteristics
Color
Black
Product Height
0.6 in [1.6 cm]
Product Length
10.0 ft [3.0 m]
Weight of Product
4.2 oz [120.0 g]
Product Width
1.3 in [3.4 cm]
Cable Length
10.0 ft [3.0 m]
Power
Power Source
Bus Powered
Software
OS Compatibility
Windows 7, 8/8.1, 10, 10 ARM, 11, 11 ARM
Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.9 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux 4.15.x and up - LTS Versions only
Chrome OS
Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.9 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux 4.15.x and up - LTS Versions only
Chrome OS
Special Notes / Requirements
System and Cable Requirements
Computer with a USB Type-A Port version 1.1 or greater
What's in the Box
Included in Package
1 - USB to Serial Adapter
2 - DB9 Nuts
1 - Quick-Start Guide
..
