Warranty

2 Years

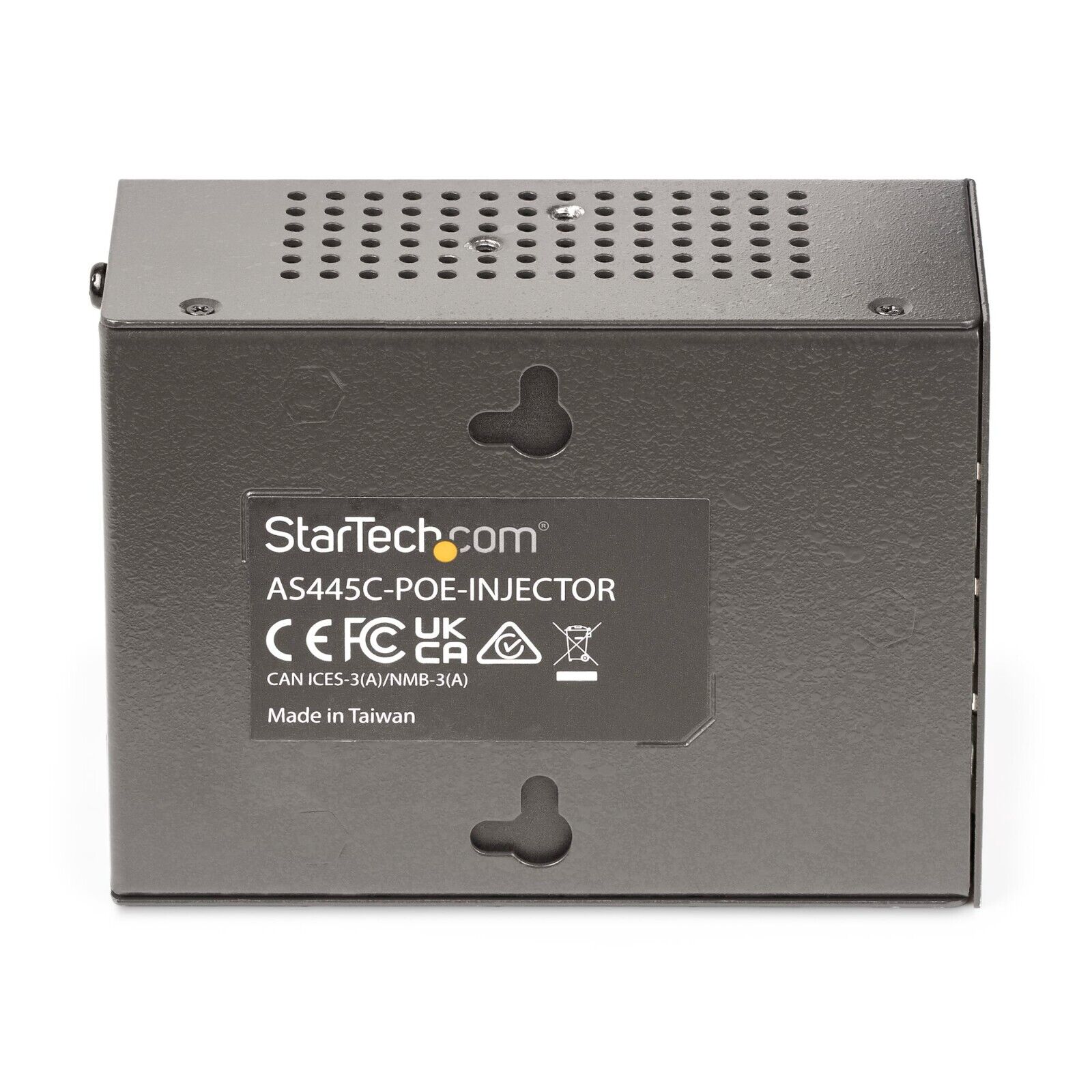

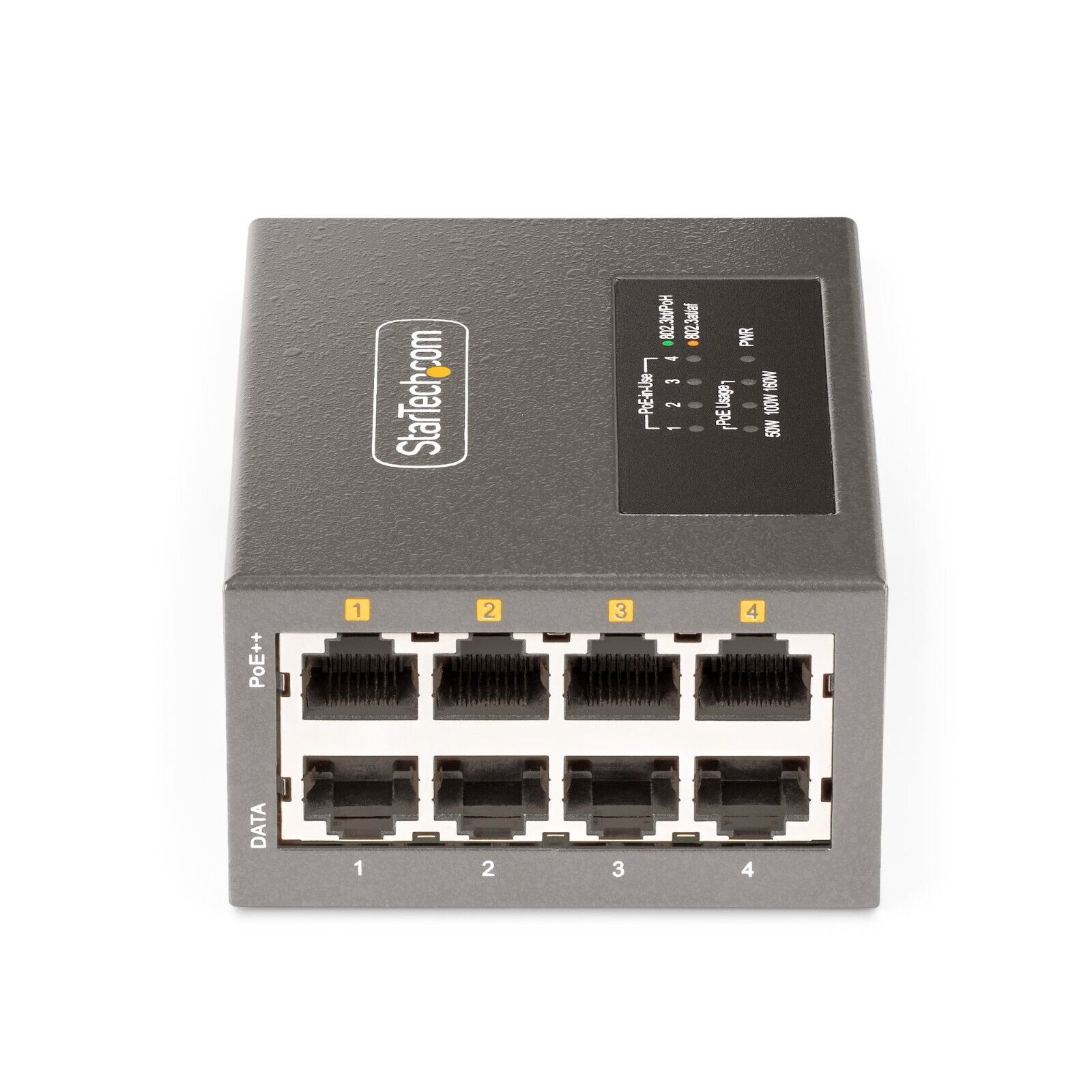

Connector A

4 - RJ-45 (PoE++)

Connector B

4 - RJ-45

External Ports

1 - M Barrel Power Connector

Operating Temperature

32°F to 122°F (0°C to 50°C)

Storage Temperature

14°F to 158°F (-10°C to 70°C)

Humidity

5~95% RH (Non-Condensing)

Ports

4

Industry Standards

Power over HDBaseT / PoH (95 W)
IEEE 802.3bt Type 4 / 4PPoE / PoE++ (90 W)
IEEE 802.3at Type 2 / PoE+ (30 W)
IEEE 802.3af Type 1 / PoE (15.4 W)
IEEE 802.3bz (5GBASE-T and 2.5GBASE-T)
IEEE 802.3ab (1000BASE-T)
IEEE 802.3u (100BASE-TX)
IEEE 802.3i (10BASE-T)
IEC 61000-4-2 Level-4 ESD protection (8kV contact/15kV air)

Chipset ID

Microsemi - PD69208T4
Microsemi - PD69200R

LED Indicators

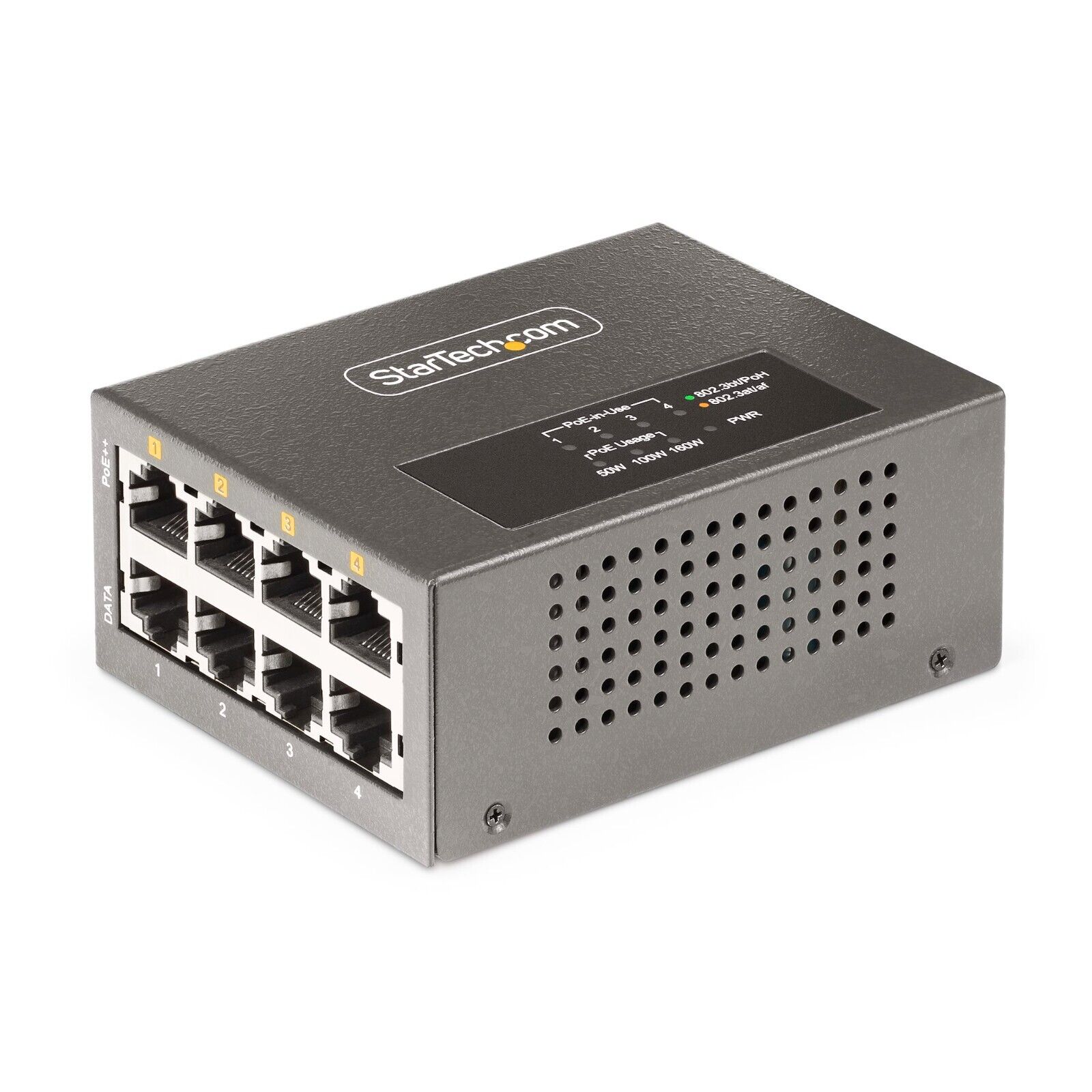

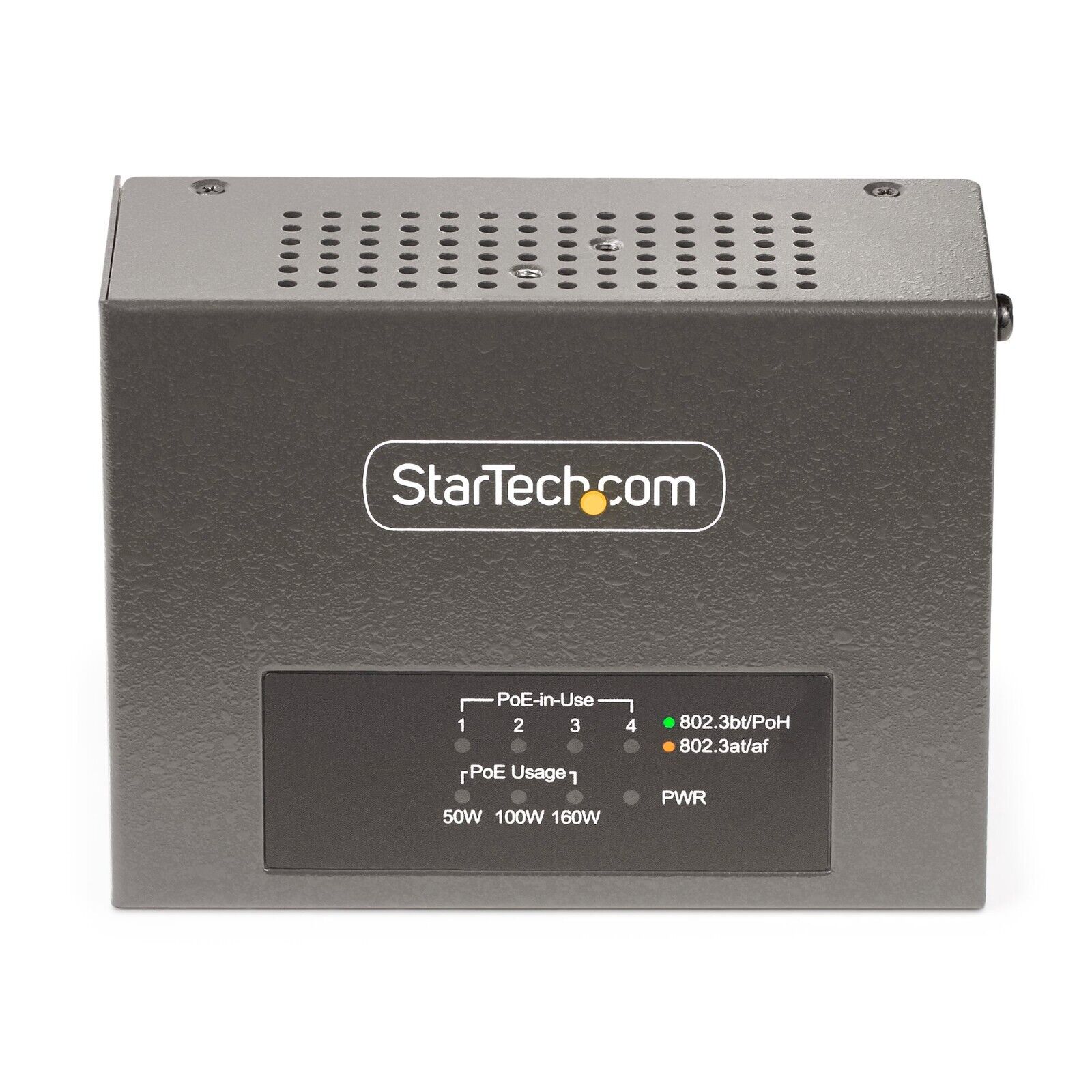

3 - PoE Usage LEDs:
Steady Amber - The system is consuming over the indicated PoE power budget
Blinking Amber. Indicates that the system is consuming under the indicated PoE power budget

3 - PoE-in-Use LEDs:
Steady Green - The port is providing 802.3bt/PoH/Force power to the remote powered device
Steady Amber - The port is providing 802.3af/at PoE/PoE+ power to the remote powered device
Off - No power is being provided to the remote device

1 - Power LED.
Steady Green - Power is being supplied to the PoE Injector
Off - No power is being supplied to the PoE Injector

Package Quantity

1

Package Height

3.5 in [9.0 cm]

Package Length

11.8 in [30.0 cm]

Shipping (Package) Weight

3.7 lb [1.7 kg]

Package Width

6.7 in [17.0 cm]

Maximum Data Transfer Rate

5000 Mbps

Maximum Cable Length

328.0 ft [100 m]

ESD Protection

+/-8kV (Contact)

+/-15kV (Air)

Compatible Networks

5G/2.5G/1G/100Mbps/10Mbps

Auto MDIX

Yes

PXE

No

Jumbo Frame Support

9K max.

Supported Protocols

Wake-on-LAN (WoL)

Color

Black

Product Height

1.5 in [3.9 cm]

Product Length

3.7 in [9.4 cm]

Weight of Product

9.8 oz [278.0 g]

Product Width

2.8 in [7.0 cm]

Material

Steel

Power Source

AC Adapter Included

Input Voltage

100 - 240 AC

Input Current

2.5 A

Output Voltage

54 DC

Output Current

3.3 A

Center Tip Polarity

Positive

Plug Type

M

OS Compatibility

No drivers or software required

Note

It is recommended to attach a grounding wire between the PoE Injector and Earth Ground for safety and stability.

Force mode operates as a non-negotiating 4-pair 60W PoE PSE. Prior to selecting this mode, ensure that the PD supports a 60W power input to avoid potential equipment damage.

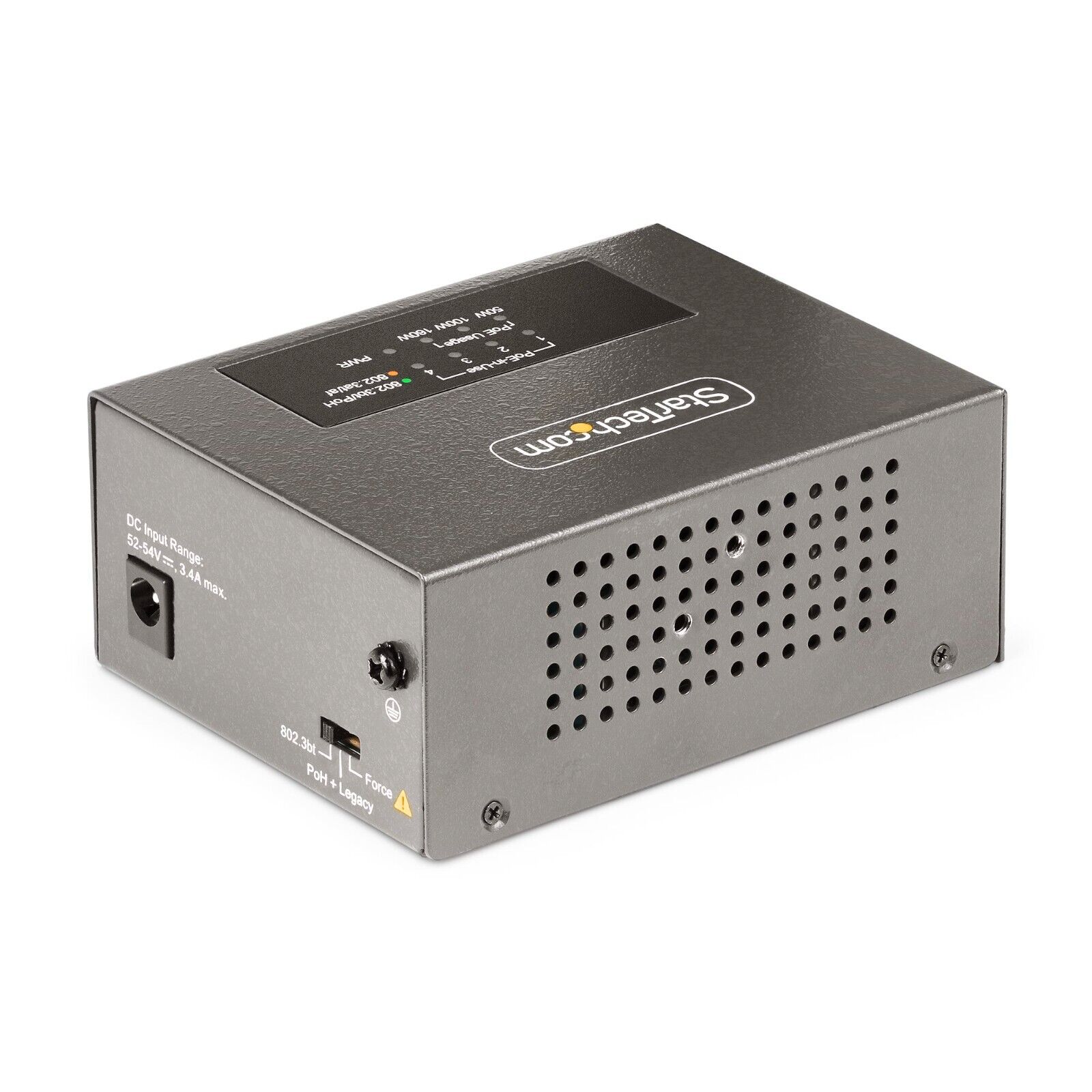

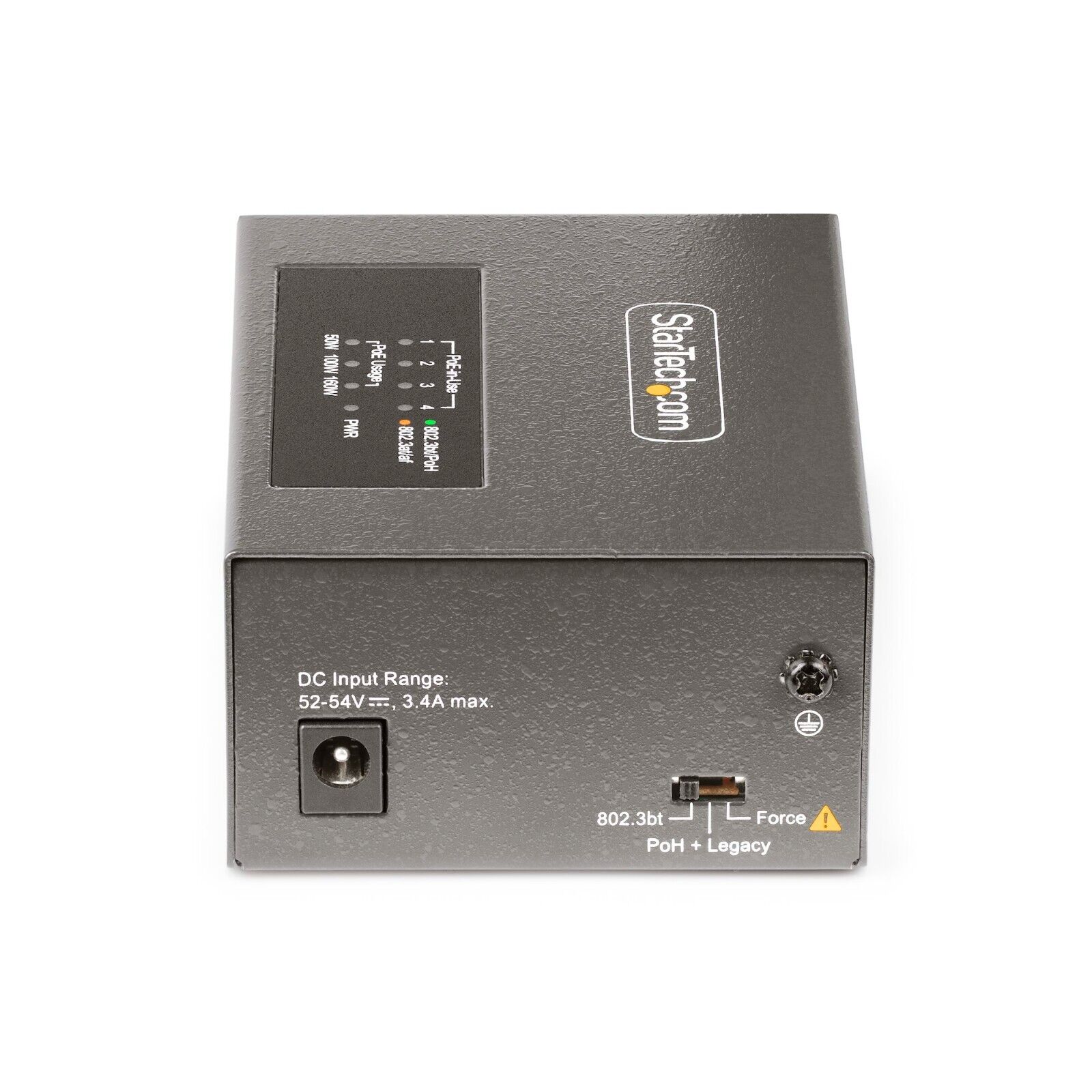

802.3bt and the 'PoH + Legacy' switch position both pass power classes 0-8. 'Force' switch position passes power class 0-3.

Included in Package

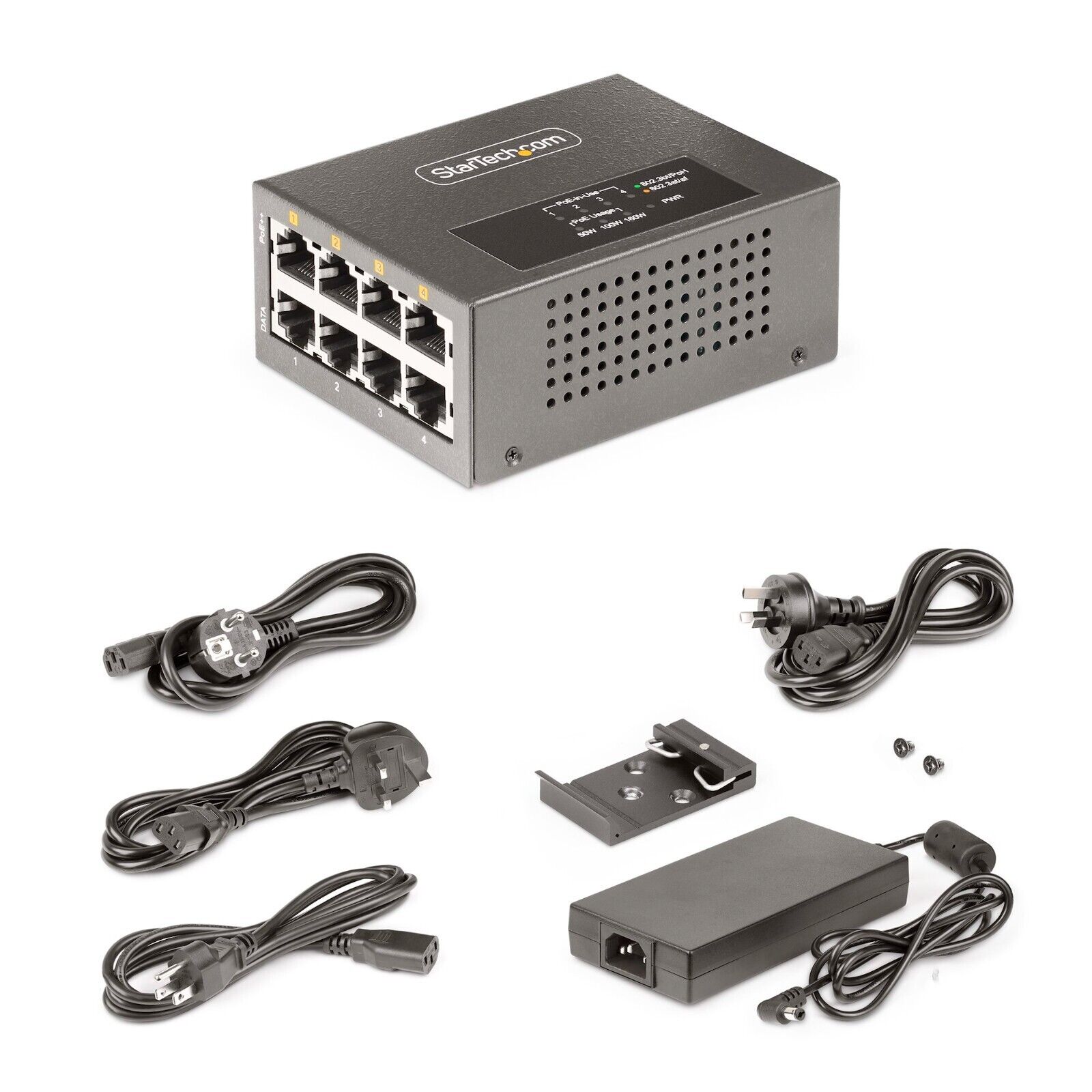

1 - 4-Port PoE Injector

1 - Universal Power Adapter

1 - DIN Rail Mounting Kit

1 - Quick-Start Guide
