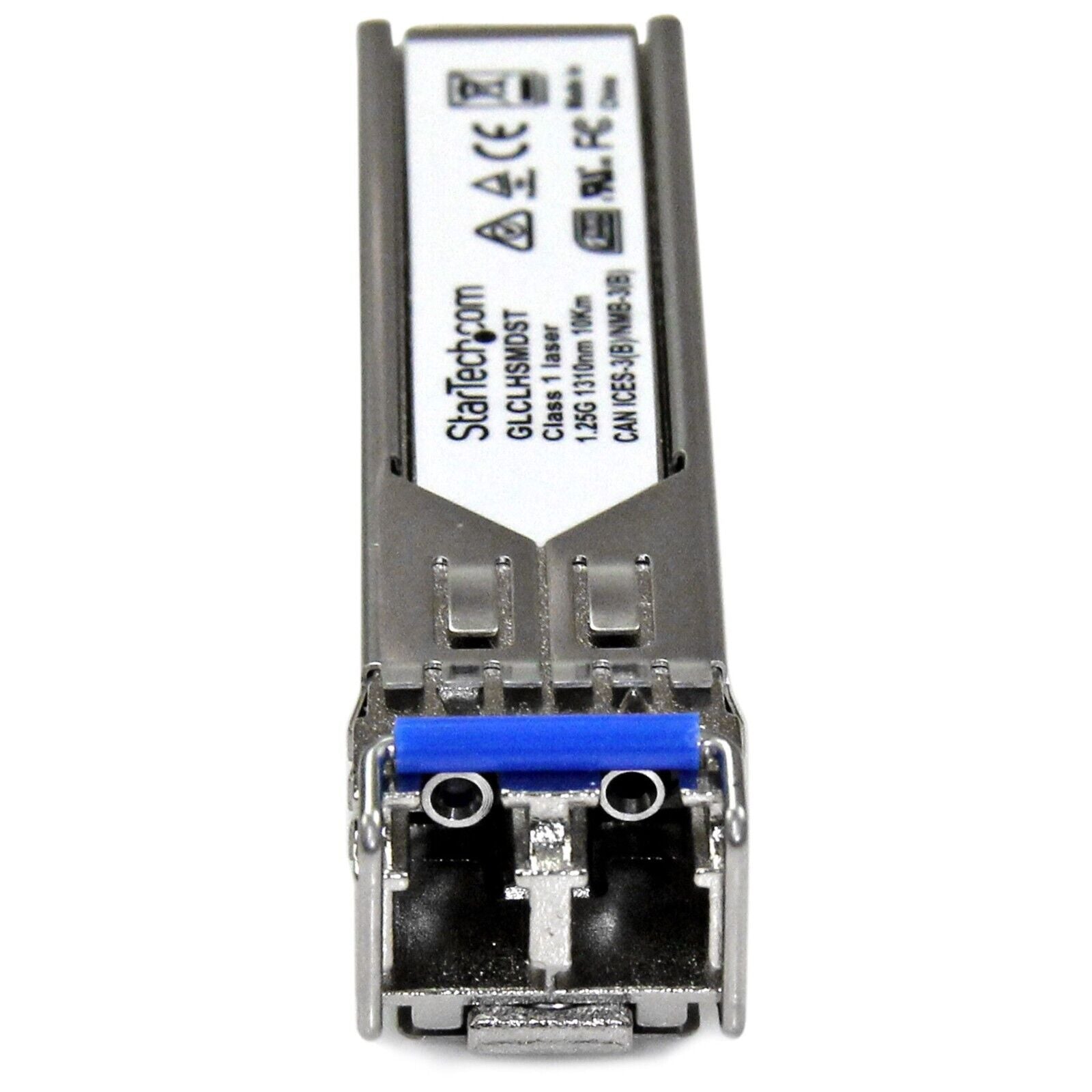

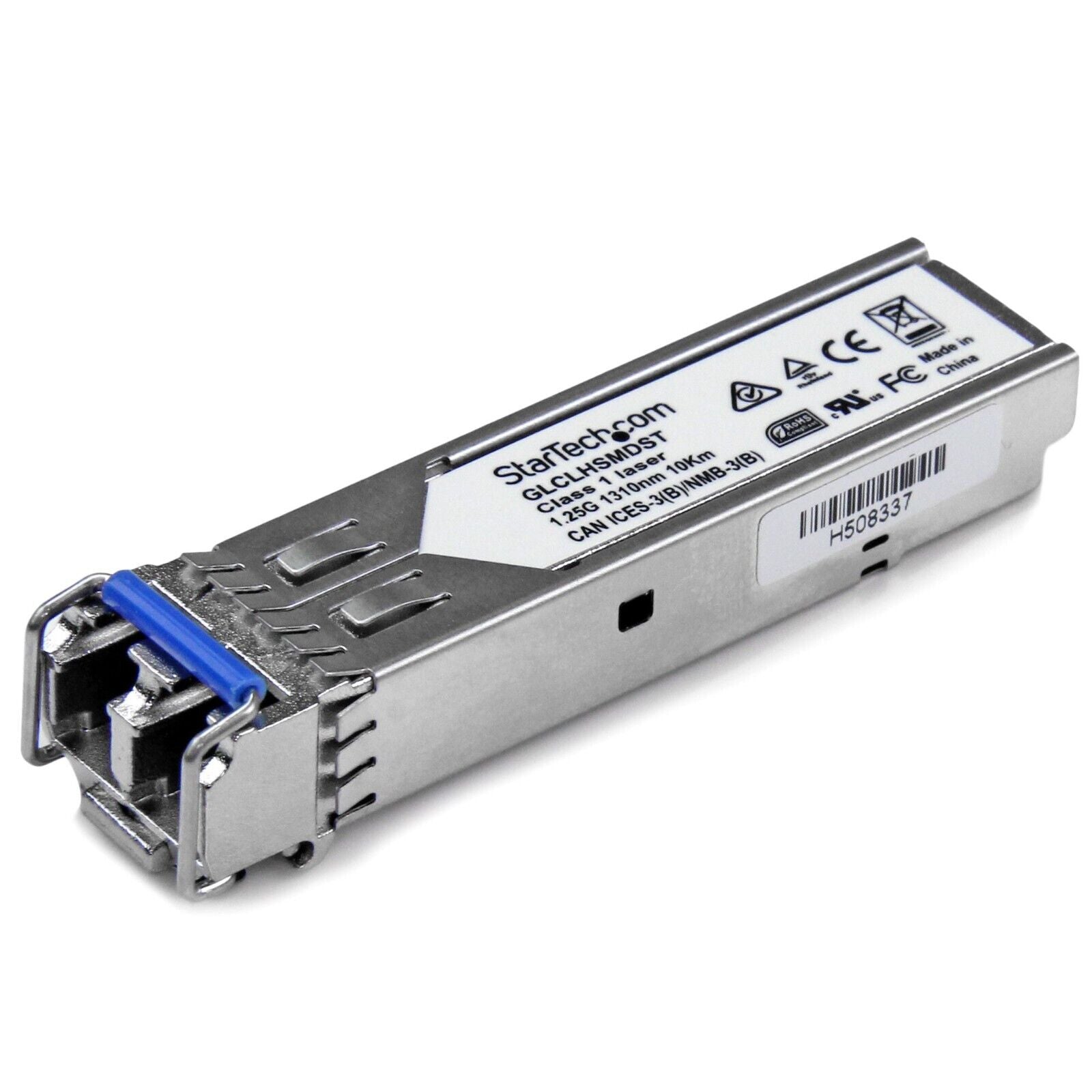

StarTech GLCLHSMDST GLC-LH-SMD Cisco Compat SFP Module 1000B-LX/LH SMF Transcver

Name: StarTech GLCLHSMDST GLC-LH-SMD Cisco Compat SFP Module 1000B-LX/LH SMF Transcver
Brand: Startech
SKU: INGaSTA 3F0544 - GLCLHSMDST
Price: 64.36 USD
Availability: InStock

$64.36 USD

Shipping calculated at checkout.

In stock: 1

Description

Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LX/LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM Cisco Firepower, ASR920, IE2000

1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

Warranty Information

Warranty

Lifetime

Package Quantity

Auto MDIX

Yes

Material

Aluminum

System and Cable Requirements

MSA or Cisco compliant SFP port

Connector(s)

Local Unit Connectors

1 - Fiber Optic LC Duplex

Environmental

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Humidity

5~95% RH

Hardware

Compatible Brand

Cisco

Industry Standards

IEEE 802.3z 1000BASE-LX/LH

Packaging Information

Package Height

1,2 in [3,0 cm]

Package Length

4,3 in [10,8 cm]

Package Width

3,7 in [9,4 cm]

Shipping (Package) Weight

1,8 oz [50,0 g]

Performance

Maximum Data Transfer Rate

1.25 Gbps

Max Transfer Distance

10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM

Type

Single Mode / Multi Mode

Wavelength

1310nm

Fiber Operating Mode

Full-Duplex

DDM

Yes

Compatible Networks

1000 Mbps (1 Gbps)

MTBF

200,000 hours

Power Consumption (In Watts)

< 1 W

Physical Characteristics

Color

Silver

Product Length

2,3 in [58,0 mm]

Product Width

0,5 in [1,2 cm]

Product Height

0,3 in [0,8 cm]

Weight of Product

0,6 oz [18,0 g]

Power

Output Voltage

3.3V DC

Special Notes / Requirements

Note

For use in Gigabit fiber networking equipment and media converters

What's in the Box

Included in Package

1 - SFP transceiver
