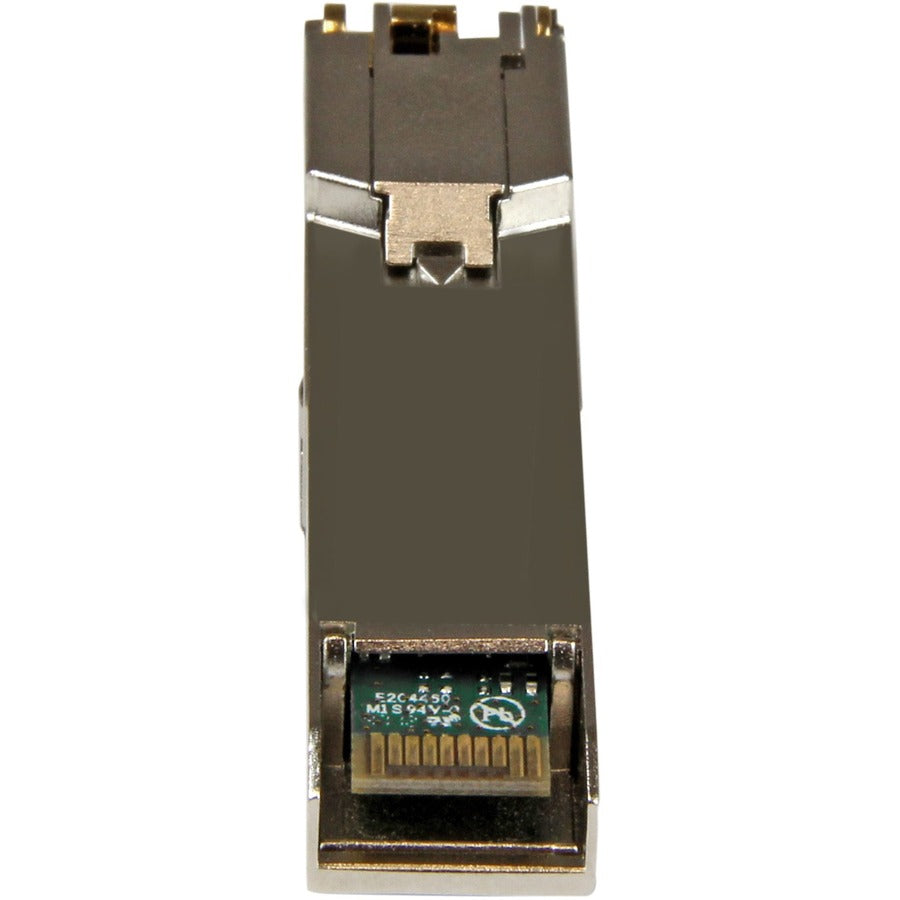

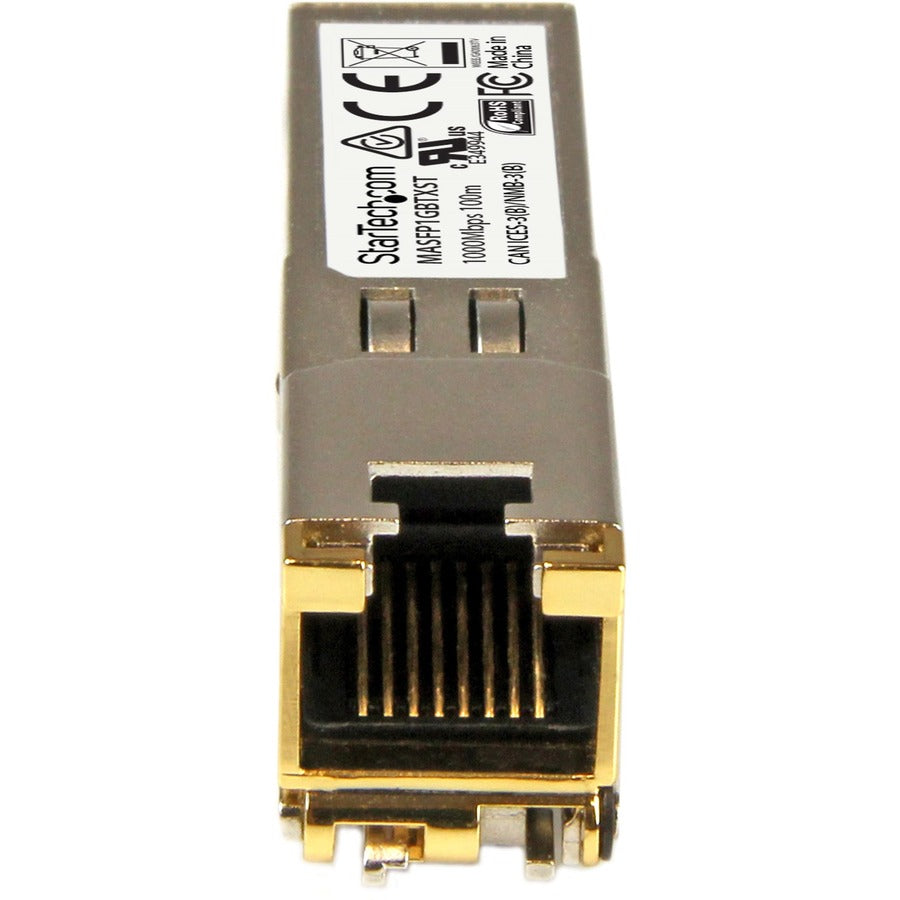

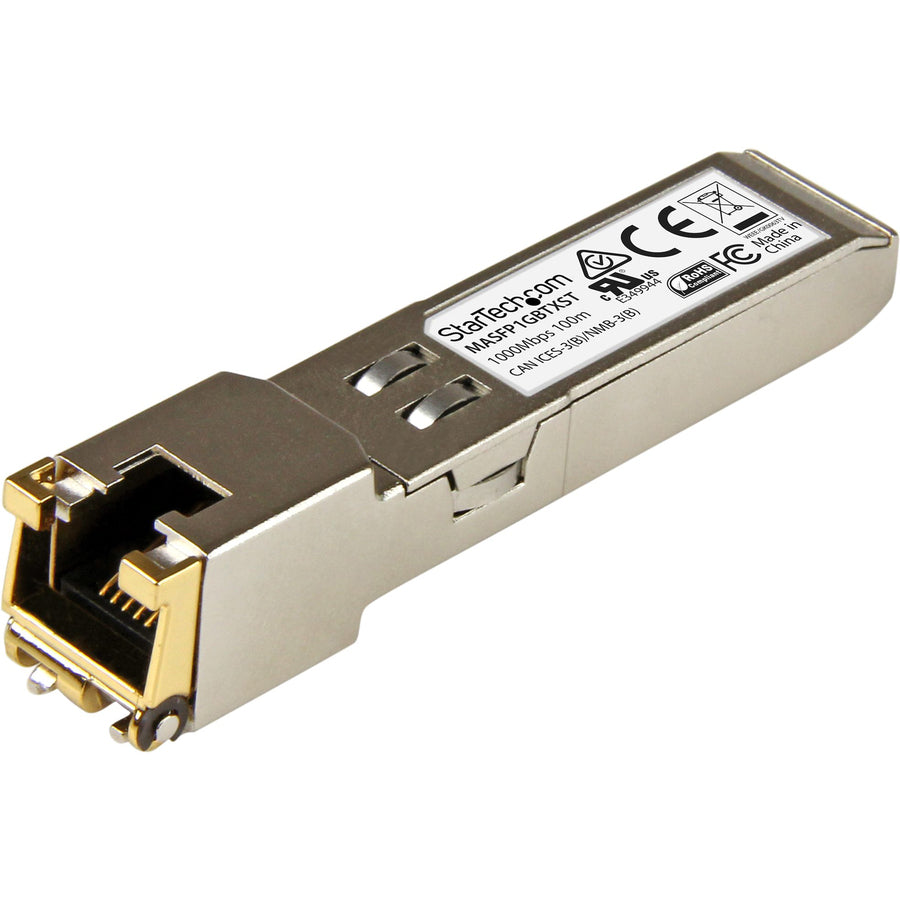

StarTech MASFP1GBTXST Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module

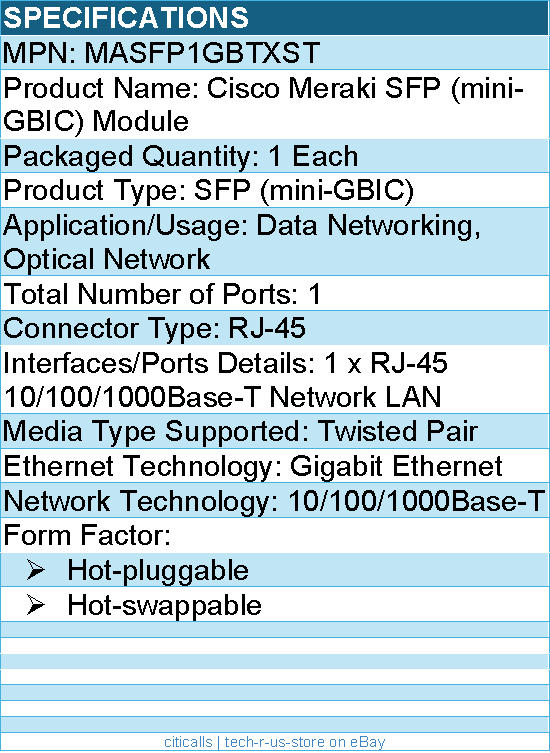

General Information

• Manufacturer: StarTech
• Brand Name: StarTech
• Manufacturer Part Number: MASFP1GBTXST
• Product Name: Cisco Meraki SFP (mini-GBIC) Module
• Packaged Quantity: 1 Each
• Product Type: SFP (mini-GBIC)

Marketing Information:

• The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
• Technical Specifications:
  • Maximum Data Transfer Rate: 1000 Mbps
  • Type: Copper
  • Connection Type: RJ45 Connector
  • Maximum Transfer Distance: 100 m (328 ft)
  • MTBF: 4,655,371 hours
  • Power Consumption: Less than 1.3 Watts
  • Digital Diagnostics Monitoring (DDM): No
• This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
• StarTech SFPs
• All StarTech SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Technical Information

• Application/Usage:
• Data Networking
• Optical Network

Interfaces/Ports

• Total Number of Ports: 1
• Connector Type: RJ-45
• Interfaces/Ports Details: 1 x RJ-45 10/100/1000Base-T Network LAN

Media & Performance

• Media Type Supported: Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

Physical Characteristics

• Form Factor:
• Hot-pluggable
• Hot-swappable

Miscellaneous

• Compatibility:
• MSA Compliant
• Cisco Meraki Switches:
  • MS225
  • MX400
  • MS250
  • MS350
  • MX84
• Country of Origin: Taiwan
• Environmentally Friendly: Yes
• Environmental Certification: EU RoHS
• Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS) 2
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
