StarTech RS232EXTC1 DB9 RS232 Extender over CAT5 up to 3300ft
Current product
Current
Vendor:
citiCALLS
StarTech RS232EXTC1 DB9 RS232 Extender over CAT5 up to 3300ft
Regular price
$133.87 USD
Sale price
$133.87 USD
Regular price
$127.09 USD
Options
Descriptions
Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters) - TAA
Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling
Product ID: RS232EXTC1
..
Warranty Information
Warranty
2 Years

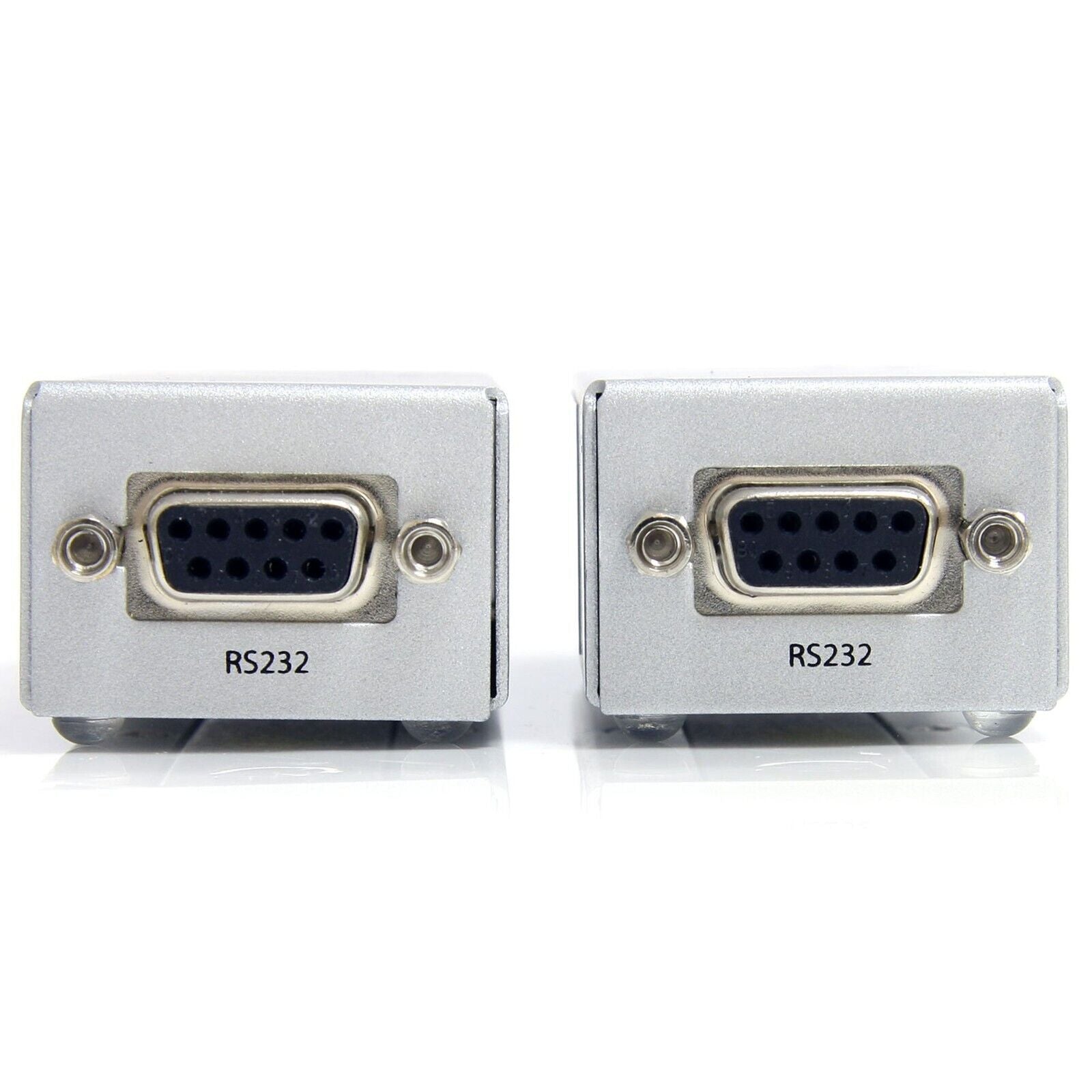

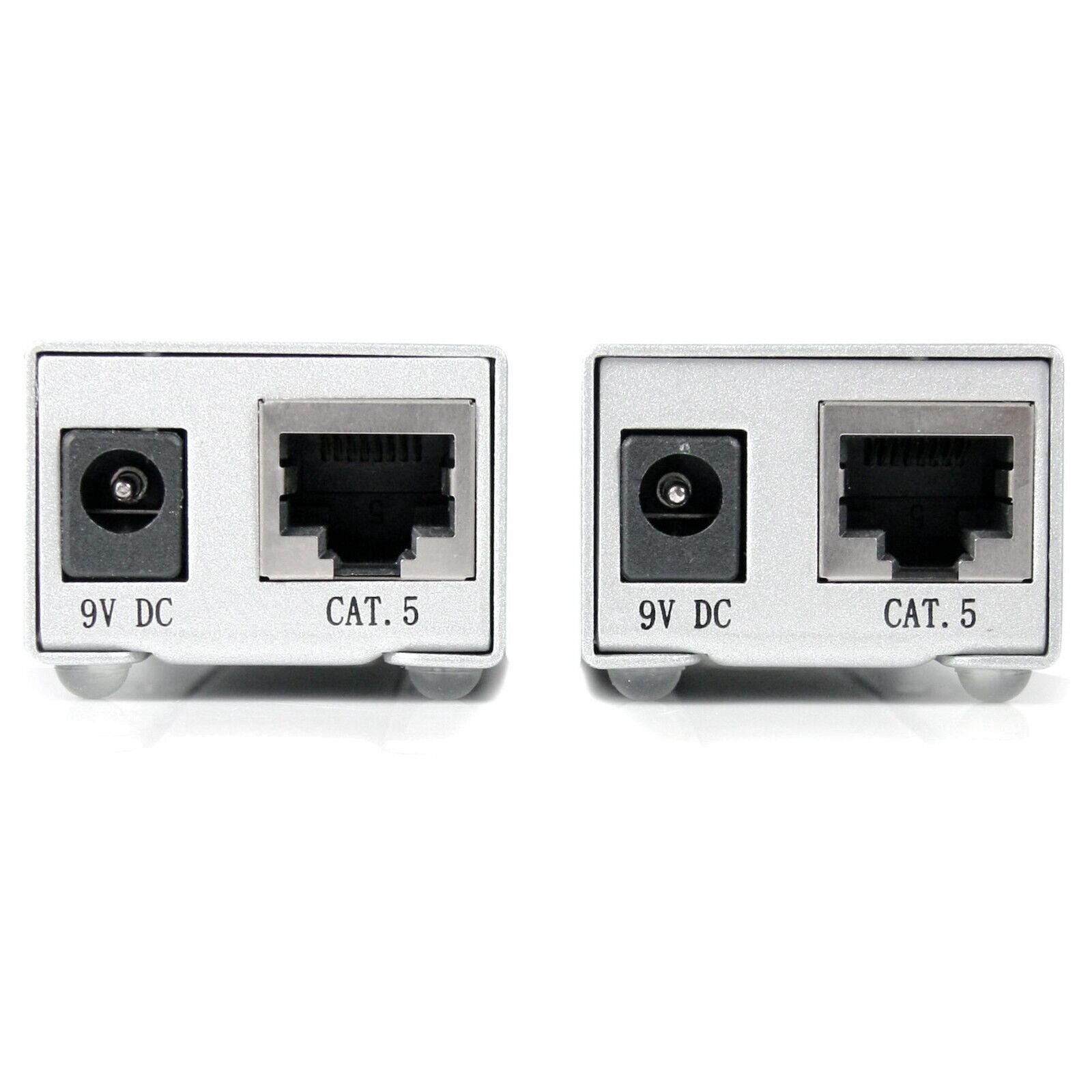

Connector(s)
Local Unit Connectors
1 - RJ-45
1 - DB-9 (9 pin, D-Sub)
Remote Unit Connectors
1 - DB-9 (9 pin, D-Sub)
1 - RJ-45
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
0°C to 85°C (32°F to 185°F)
Humidity
0% to 95%
Hardware
Ports
1
Cabling
Cat 5 UTP
Packaging Information
Package Height
2.3 in [5.8 cm]
Package Length
12.4 in [31.6 cm]
Shipping (Package) Weight
1.5 lb [0.7 kg]
Package Width
5.7 in [14.4 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
230 Kbps
Max Distance
1 km (0.6 mi)
Physical Characteristics
Weight of Product
9.6 oz [273.0 g]
Color
Silver
Material
Steel
Product Length
3.6 in [9.2 cm]
Product Width
1.3 in [3.4 cm]
Product Height
0.9 in [2.2 cm]
Power
Power Source
2 AC Adapters Included
Input Voltage
100 - 240 AC
Input Current
55mA
Output Voltage
9V DC
Output Current
0.3A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
2.7
Software
OS Compatibility
OS independent
Special Notes / Requirements
System and Cable Requirements
Cat5 RJ45 cabling required

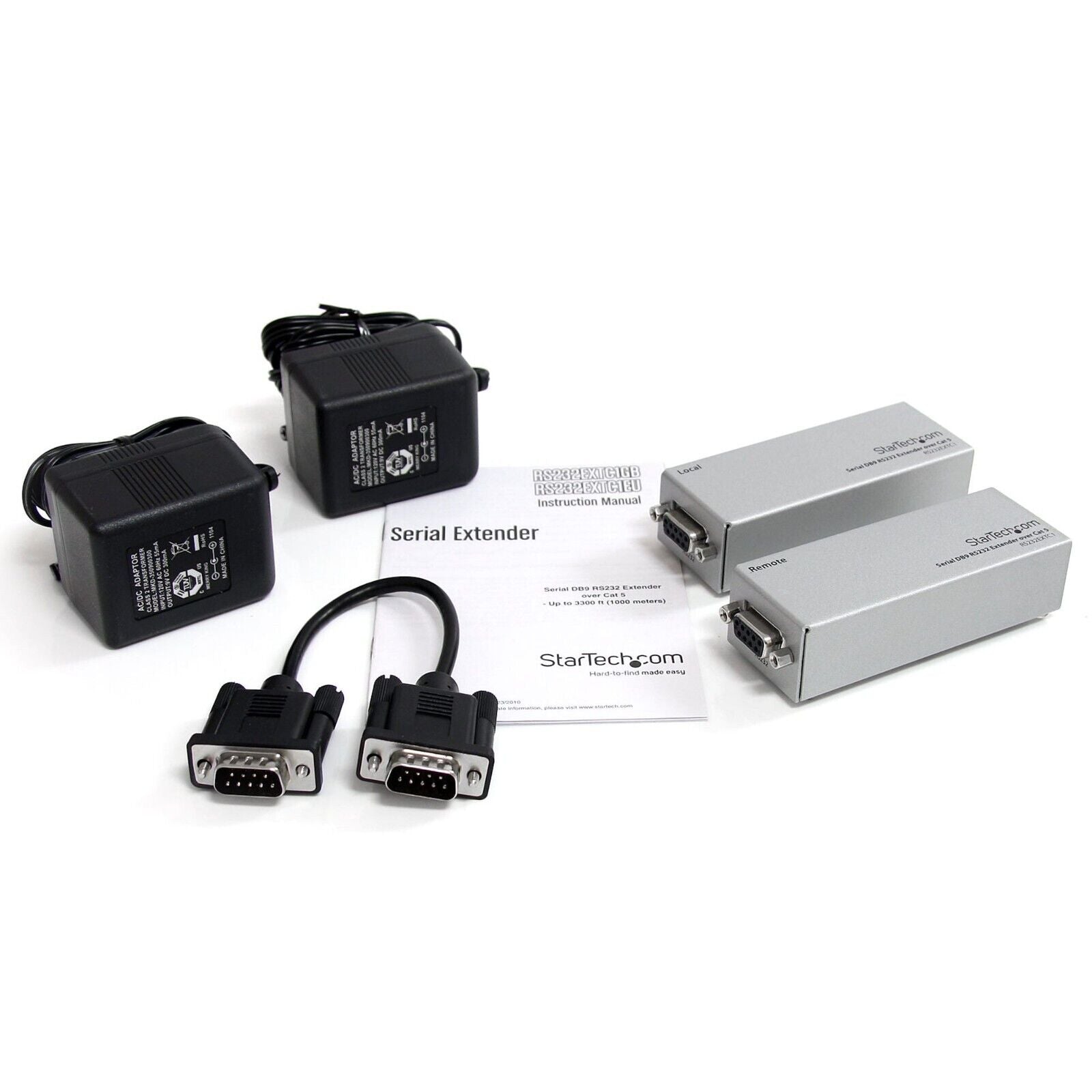

What's in the Box
Included in Package
1 - RS232 Extender Local Unit
1 - RS232 Extender Remote Unit
1 - 20cm Null Modem cable (DB-9 Male to Male)
2 - Power Adapter
1 - User Manual
