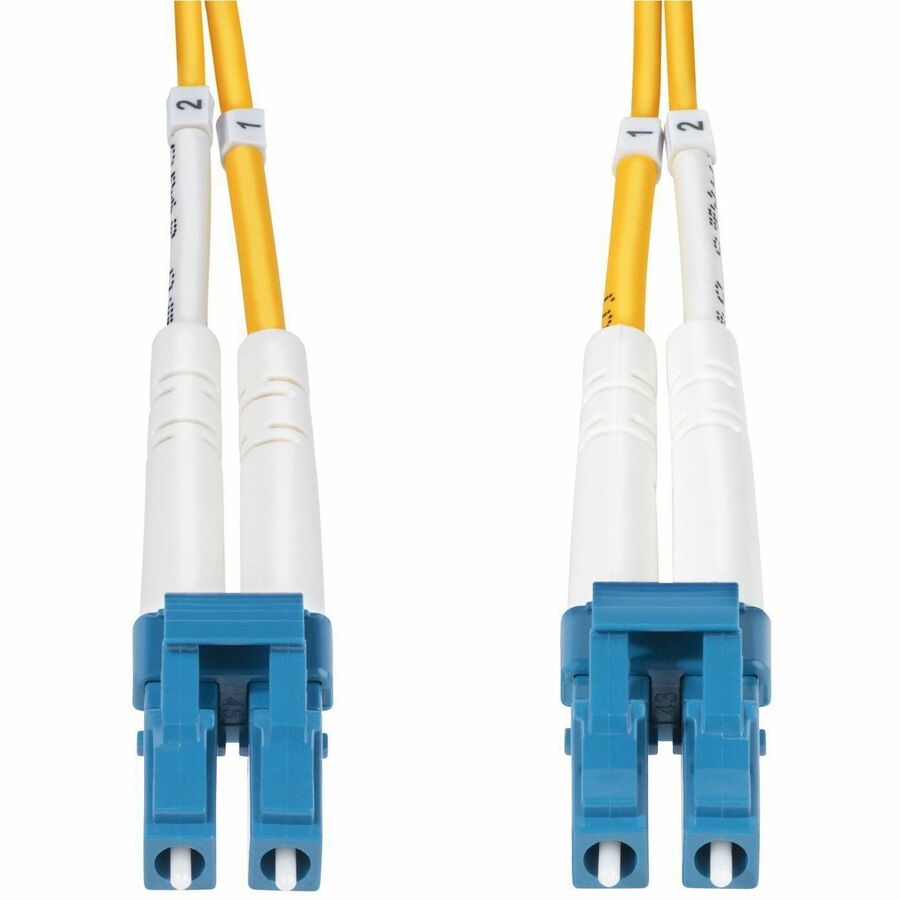

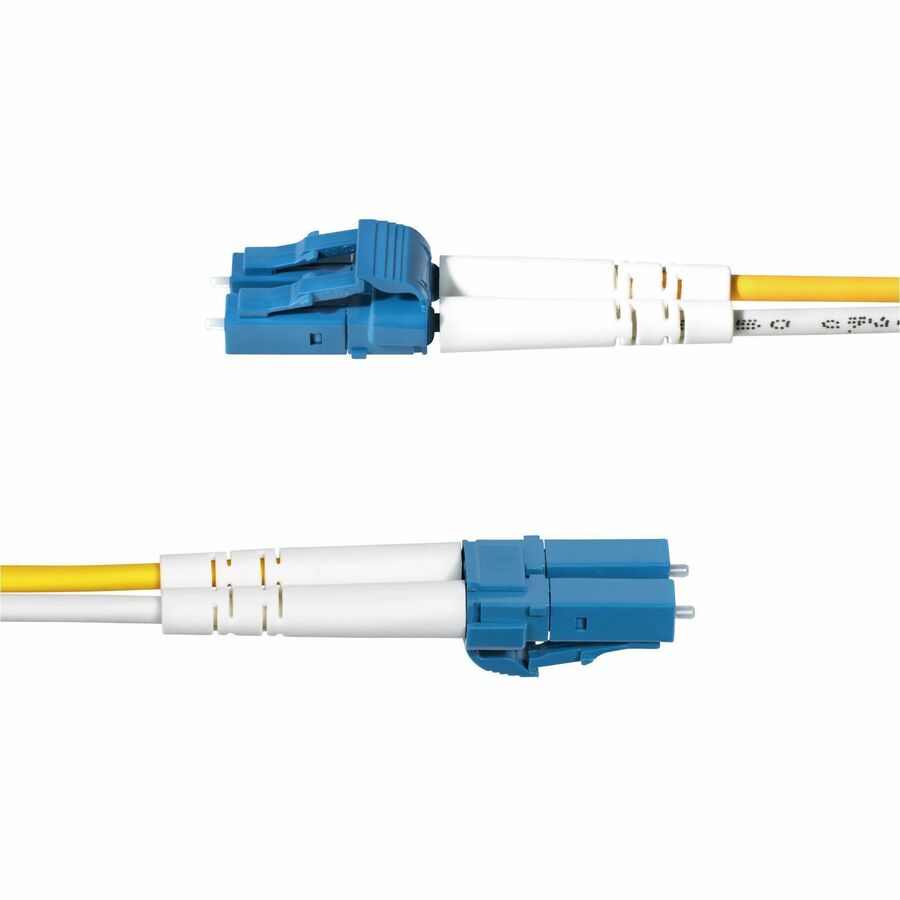

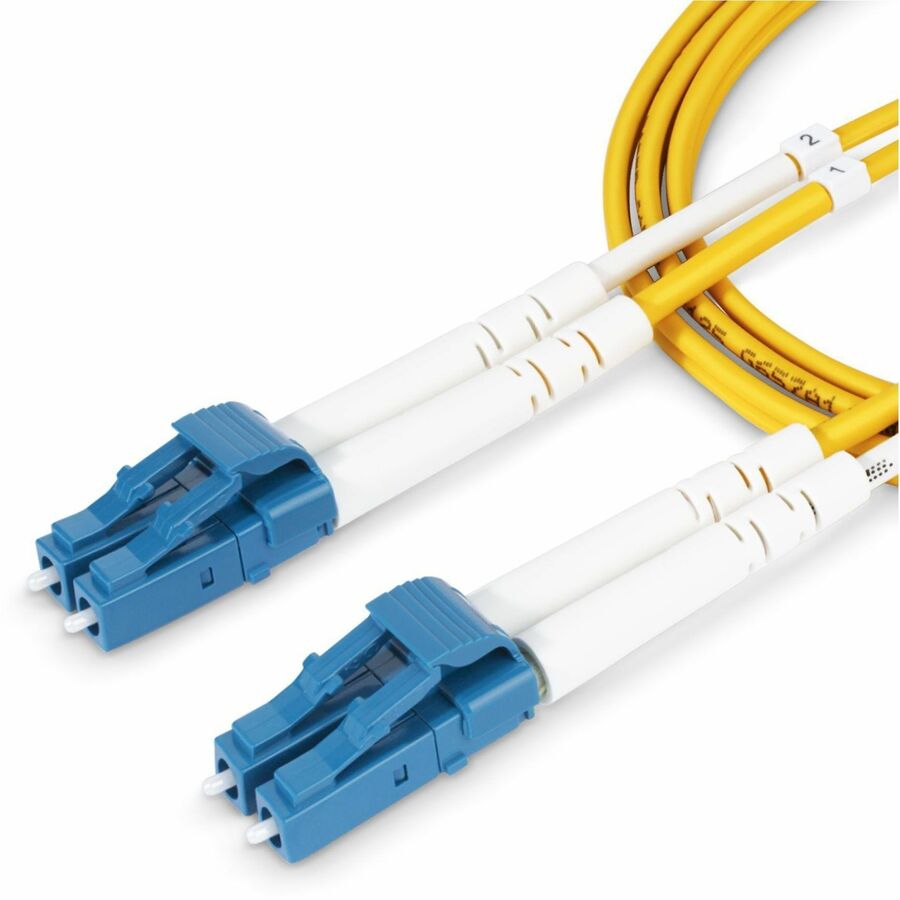

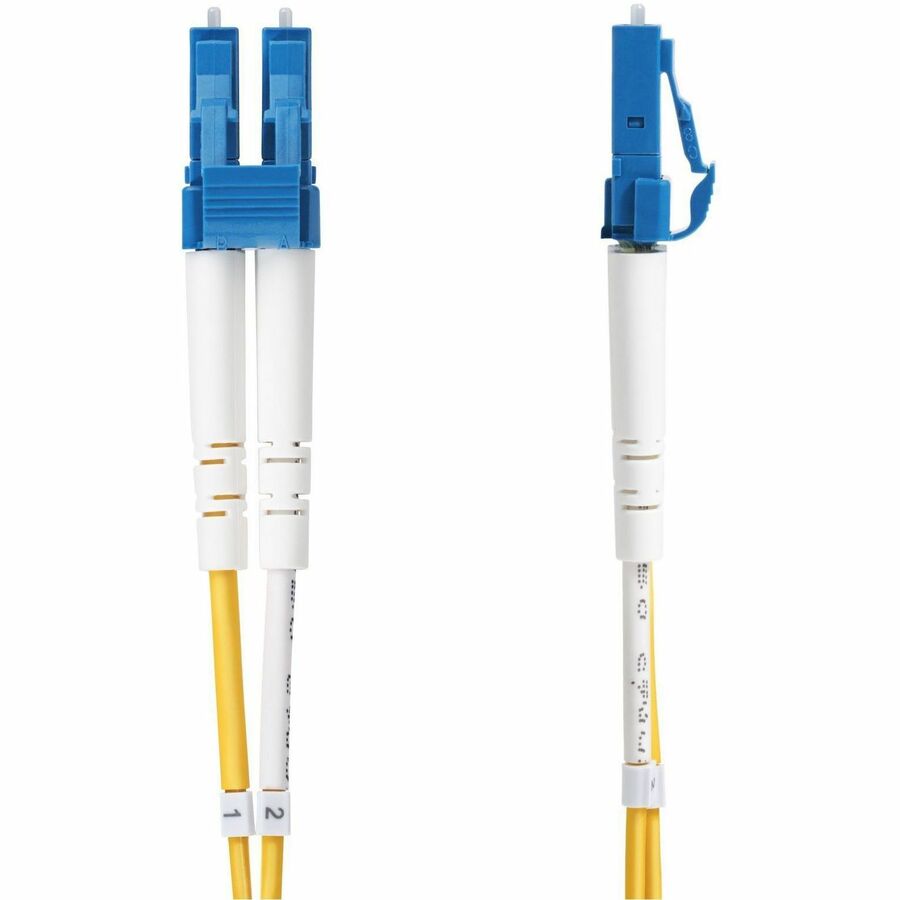

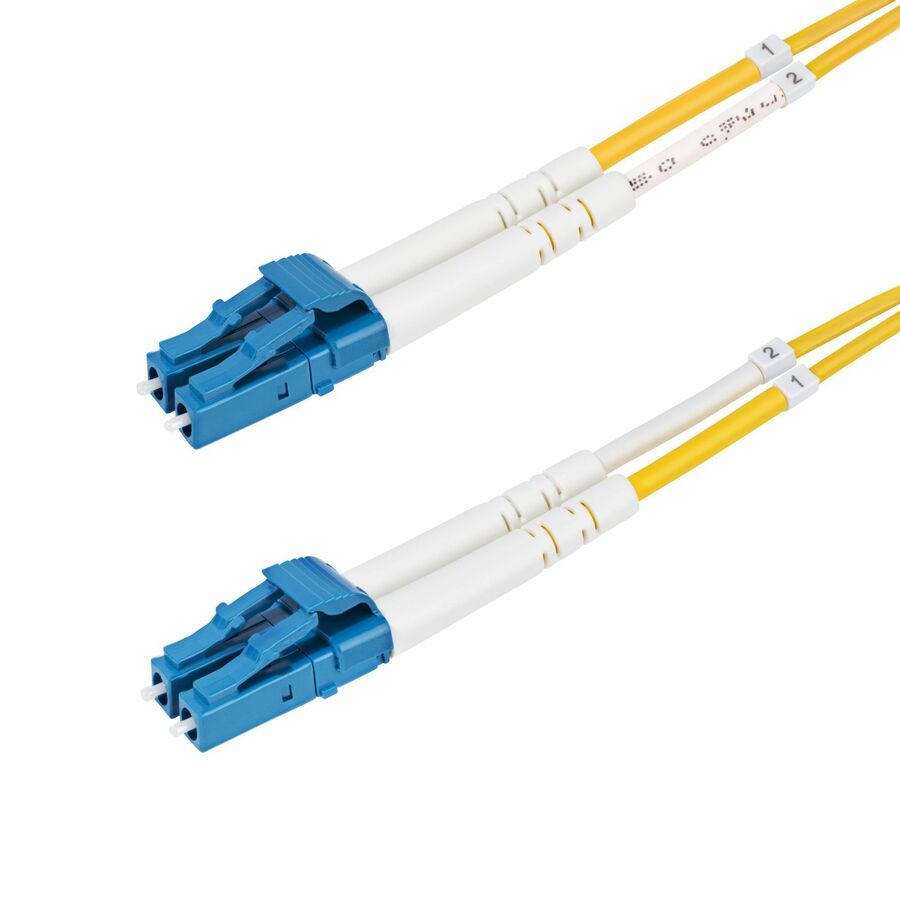

StarTech SMDOS2LCLC5M 16.4ft LC to LC OS2 Single Mode Duplex Fiber Optic Cable

General Information

• Manufacturer: StarTech
• Brand Name: StarTech
• Manufacturer Part Number: SMDOS2LCLC5M
• Product Name: Fiber Optic Duplex Patch Network Cable
• Packaged Quantity: 1
• Product Type: Network Cable

Marketing Information:

• OS2 LC to LC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
• Compatibility
• This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
• Engineered for Optimal Performance
• Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
• LSZH Cable Jacket
• Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
• Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.

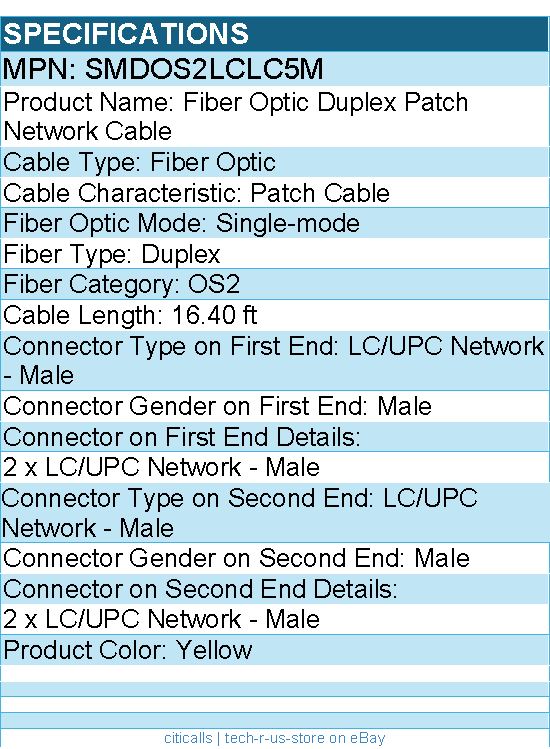

Technical Information

• Cable Type: Fiber Optic
• Cable Characteristic: Patch Cable
• Fiber Optic Mode: Single-mode
• Fiber Type: Duplex
• Fiber Category: OS2
• Cable Length: 16.40 ft
• Connector Type on First End: LC/UPC Network - Male
• Connector Gender on First End: Male
• Connector on First End Details: 2 x LC/UPC Network - Male
• Connector Type on Second End: LC/UPC Network - Male
• Connector Gender on Second End: Male
• Connector on Second End Details: 2 x LC/UPC Network - Male
• Jacket Type: LSZH
• Device Supported:
  • Network Device
  • Server
  • Switch
  • Storage Device
• Data Transfer Rate: 100 Gbit/s
• Features:
  • Bend Insensitive
  • Ultra Physical Contact (UPC)
  • UPC Polished Connector
  • Flame Retardant
  • Passive
  • EMI Protection
  • Bendable

Physical Characteristics

• Color Family: Yellow
• Product Color: Yellow
• Product Material: Polypropylene

Miscellaneous

• Environmentally Friendly: Yes
• Environmental Certification: EU RoHS
• Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS) 2
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
• REACH free of SVHC: Yes
