Super Flower SF-850F14XG (WH) Leadex VII XG 850W 80+ Gold White, Cybenetics

MPN: SF-850F14XG (WH)

Main Features

• Features
• 80 PLUS Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load
• Tight Voltage Regulation (12 V, 5 V and 3.3 V) [+/- 0.5%]
• Cybenetics Platinum Certified, 89% & <91% overall efficiency (115 INPUT), 91% & <93% overall efficiency (230 INPUT)
• Intel ATX 3.0 Certified: Compliant with ATX 3.1 standard & PCIe Gen 5 ready and 16-Pin PCIe Gen 5 Cable (12V-2x6), resisting transient power spikes
• Full modular design with all ribbon cables to maximize flexibility

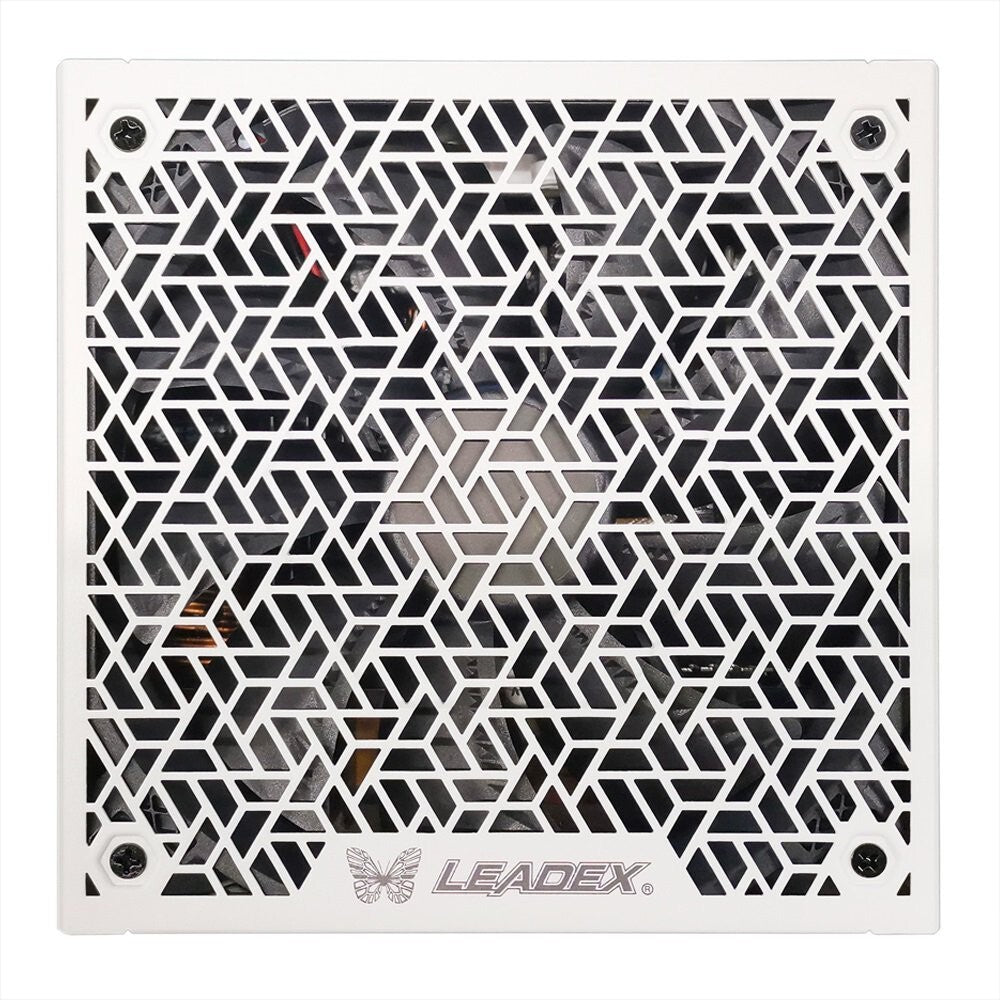

• 140mm Fluid Dynamic Bearing Fan
• 100% Japanese 105°C Capacitors
• Zero RPM with fan ECO Mode
• Full-Bridge & Resonant LLC Topology with DC-to-DC Conversion
• Output Capacity: 850W
• 80PLUS: Gold
• Color: White
• Transform Efficiency: 20%: 87%; 50%: 90%; 100%: 87% (115V Internal Gold) Efficiency
• Cybernetics Certified: Efficiency: Platinum / Efficiency 230V: Platinum
• Intel Power Design Guide: EPS Ver. 2.92 & ATX3.1
• AC Input | Frequency: 100V-240V | 60 / 50Hz, Full Range APFC
• DC Output: +3.3V 20A; +5V 20A; +12V 70.8A; -12V 0.5A; +5VSB 3.0A
• Fan Size: 14cm FDB FAN
• Protection: OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP
• Safety Certificates: cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC
• Temperature: Passed 50 °C Hot Testing

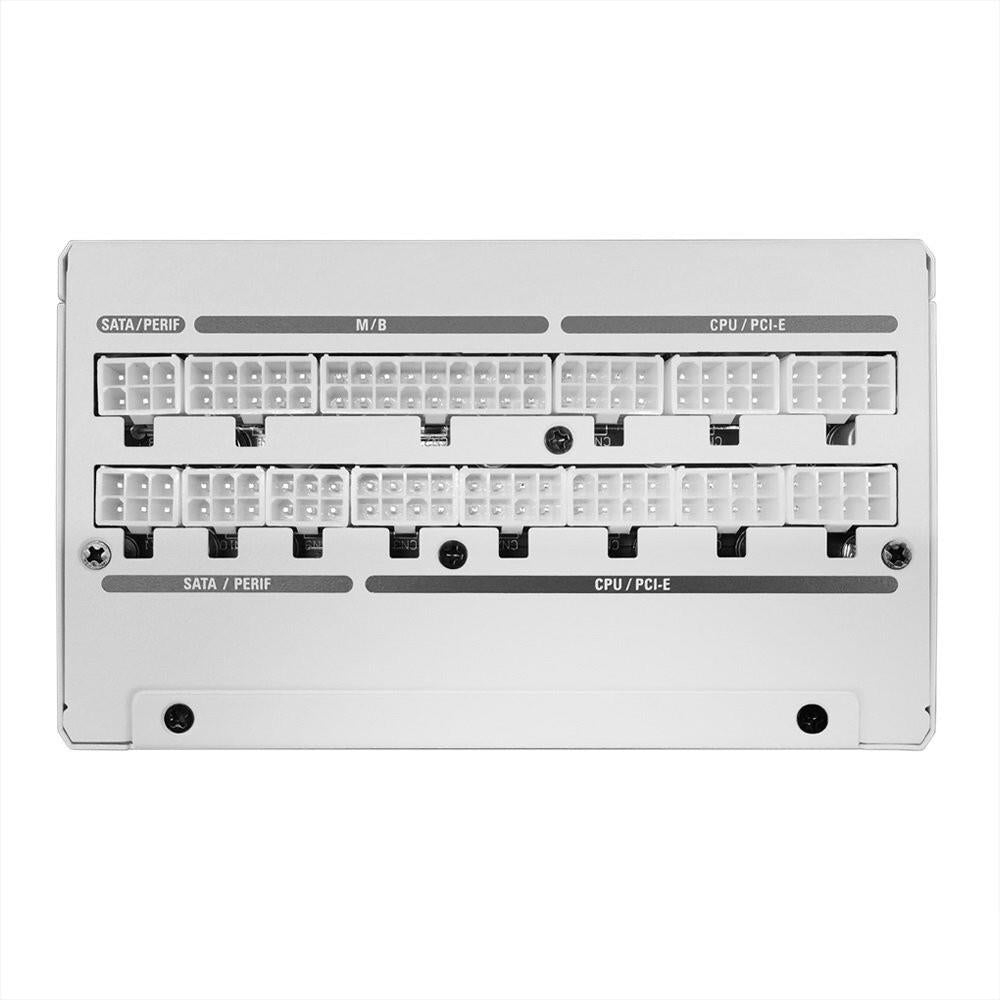

• PSU Connector
• 20+4 Pin: One Cable (600mm)
• 8(4+4) Pin CPU: Two Cables (700mm)
• PCI 6+2 Pin: Three Cables (700mm)
• 4 SATA: Three Cables (550+130+130+130mm)
• 4 Molex: One Cable (550+150+150+150mm)
• PCIe 16 Pin: One Cable (700mm)
• Dimension: 150mm(L) x 150mm(W) x 86mm(H)
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
