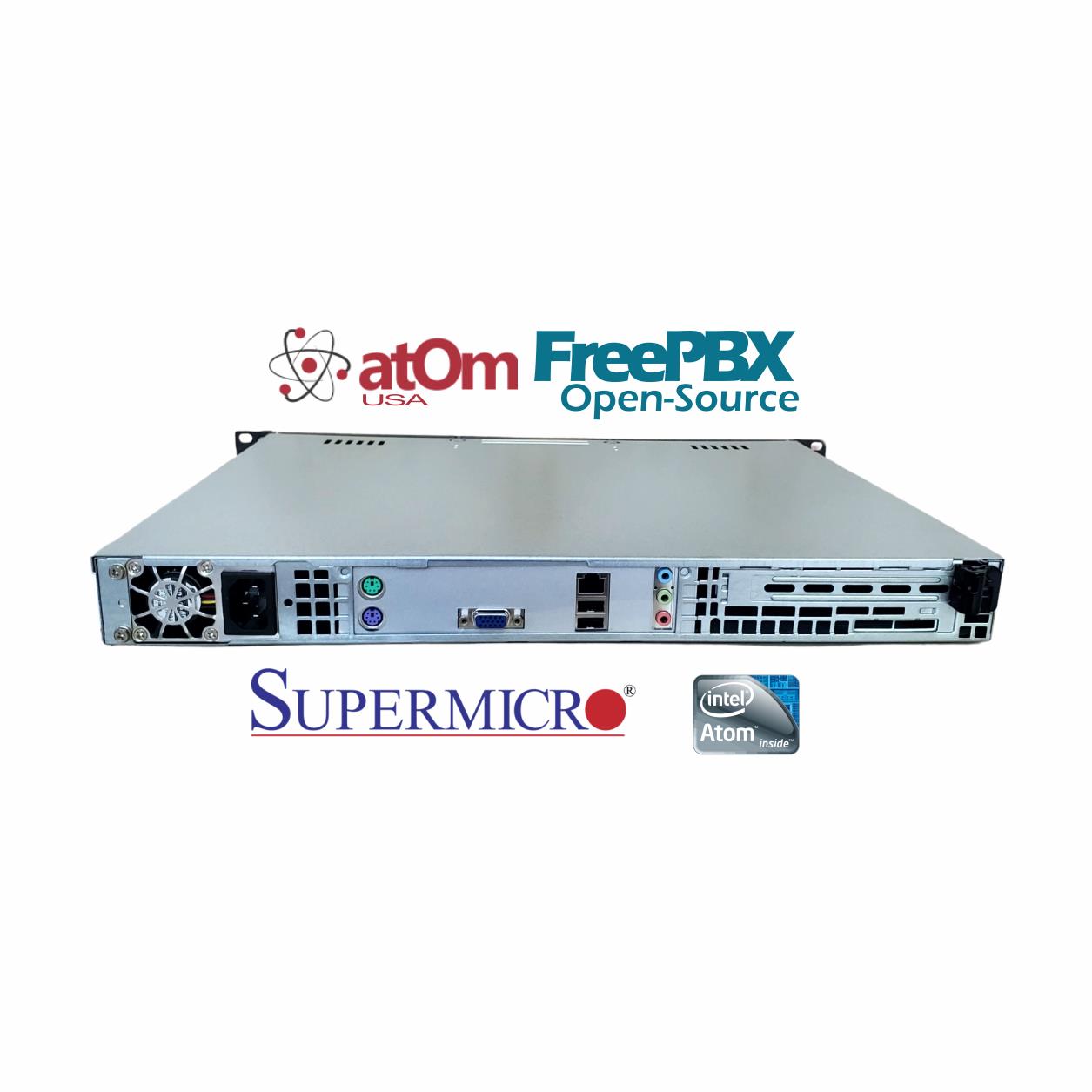

Supermicro Asterisk FreePBX VoIP PBX C512 1U Rack Basic Black Server 4 PSTN FXO

FreePBX RackMount IP PBX Appliance

Model: C512
Intel ATOM 410 CPU, 2GB RAM, 240GB SSD

• NOW SHIPPING with FREEPBX

  • FreePBX Installed
    • Unlimited Extensions
    • Digital Receptionist
    • Ring Groups
    • Remote Extensions
    • Follow Me
    • Conference Bridge
  • Intel Motherboard w Intel D410 CPU
  • Supermicro Heavy Duty 19" 1U Rackmount Steel Case

Small Office PBX VoIP Telephony System

A. Software Component:

FreePBX is an open telephony platform that combines the best of the open source telephony tools into one easy-to-install package. Based on an enhanced LAAMP (an open source bundle of Linux^®, Apache?, Asterisk^®, mySQL^®, and PHP), the trixbox^® dashboard provides easy to use, Web-based interfaces to setup, manage, maintain, and support a complete IP-PBX system.

trixbox CE comes stocked with hundreds of features including:

• Unlimited Extensions
• TDM/SIP/IAX Trunks
• Remote Extensions
• Voicemail
• Fax Support (Beta Only)
• Voicemail to Email
• IVR Menu System
• Ring Groups
• Call Queues
• Conference Rooms
• Follow-Me
• Time-Based Routing
• Music On Hold
• Paging and Intercom
• Web Access to Voicemail
• Admin Status Screen
• Package Manager (for easy updates)
• Phone Provisioning Tool
• Network Settings Tool
• Enhanced CDR Reports
• Echo Cancellation - OSLEC (Open Source Line Echo Cancelation)

B. Hardware Components:

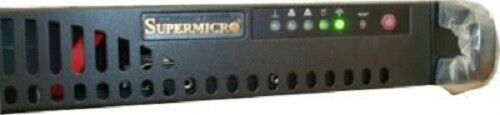

1. Supermicro 512L 19" Rack Mount Server Case

• Brand New 1U Heavy Duty Rack Mount Server 1.75" x 19" x 14.25"
• Black Server Finish
• Ear Mount Rack Mountable Ready
• 1 Power FAN
• 1 Full PCI Slot Expansion (can accomodate one PCI Asterisk Card, 4 Ports or T1/E1 Card)

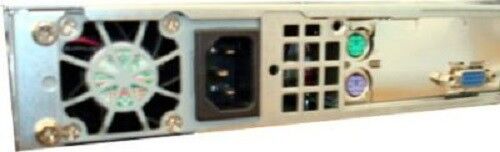

• 100-240v 200W Power Supply

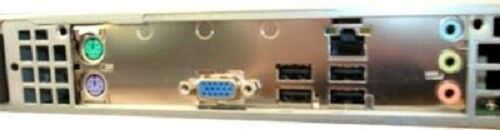

2. Intel D410 Motherboard with ATOM CPU (This is NOT a Supermicro Motherboard)

• 2GB DDR2 RAM Memory included
• 250GB HDD or higher capacity drive
• Integrated Graphics
• PS/2 Keyboard Mouse Connector

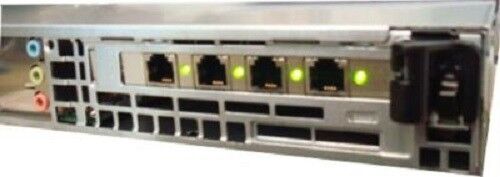

• Openvox 4 FXO Asterisk PCI Card (included)

---

Package Model: C512-D410.2G240G.A4O
What's Included in this package

• 1 unit Brand New C512-D410 Rackmount Trixbox CE PBX Ready System
• Choice of any combination of 4 FXS/FXO Modules Openvox Asterisk Card
• Free 30 Day Email Support (Hourly or Annual support packages may also be purchased from us or directly from Fonality)

---

System Requirements:

• High Speed Internet Connection.
• An Static IP Address from your ISP (suggested but not a must)
• An Existing Router or Switch to accept LAN connection
• A Windows 2000 or XP Computer to use for configuring your Trixbox and your VoIP Phones.
• Basic knowledge of the WEB, Networking and Windows. Knowing Linux is a plus, but is NOT a requirement.

Default settings are applied on this PBX system. You should ensure that you have non-conflicting ports, and have administrator rights and proper access to your internet LAN, router and firewall. A Static IP is suggested to be assigned to the Trixbox CE PBX for easy configuration.

Default passwords are set on the system. If you change passwords, make sure you have a way of recalling your password. We cannot support any system when you do not have your password keys.
