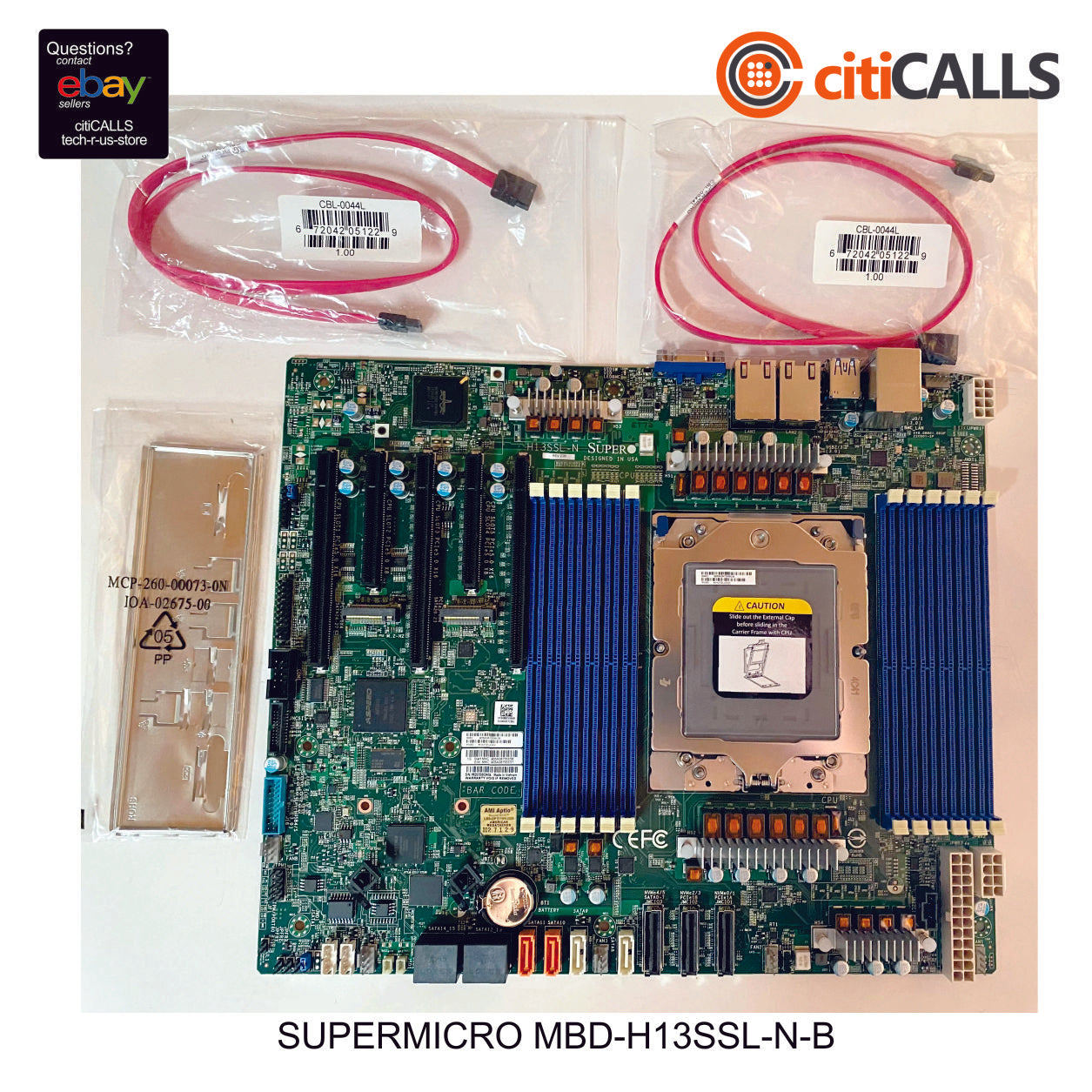

Supermicro MBD-H13SSL-N-B Motherboard SoC H13 AMD EPYC UP SP5 256GB DDR5

Write a review

$710.04

Brand : Supermicro

Collection : AMD-Based Motherboards

Product Type : Motherboard

SKU : AS24a 268974 - MBD-H13SSL-N-B

Availability : 1 In Stock Sold Out 1

HURRY ! ONLY 1 LEFT IN STOCK.

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

Anywhere in the USA

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Vendor: Supermicro
SKU: 268974
MPN: MBD-H13SSL-N-B

Marketing Information
Key Features
AMD EPYC 9004 series Processors
System on Chip
Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
3 PCIe 5.0 x16 2 PCIe 5.0 x8
Up to 6 USB 3.0 ports(4 rear + 2 via header)
8 SATA3
6 PWM 4-pin Fans with tachometer status monitoring
M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110

Detail Specifications
Physical Stats
Form Factor
ATX
Dimension
12" x 10.1" (30.48cm x 25.65cm)
Processor
CPU
AMD EPYC 9004 series Processors
Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core
Up to 128 cores, 256 threads
System Memory
Memory Capacity
12 DIMM slots
Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type
4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes
16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
System on Chip
Network Controllers
Dual LAN with Broadcom BCM5720 1GBase-T
Input / Output
SATA
8 SATA3 (6Gbps) port(s)
LAN
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 3.0 port(s) (4 USB 2 via header)
Video Output
1 VGA port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header
Others
1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
2 MCIO (PCIe 5.0 x8) Port(s)
Expansion Slots
PCIe
3 PCIe 5.0 x16 (in x16 slot),
2 PCIe 5.0 x8
M.2
M.2 Interface: 2 SATA/PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support
Management
Software
Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED
UID/Remote UID
BMC/IPMI Heartbeat LED
Other Features
RoT
FAN
6x 4-pin fan headers (up to 6 fans)
Operating Environment
Operating Temperature Range
10oC - 35oC (50oF - 95oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)

Warranty Information
1 Year - Direct from the Manufacturer
