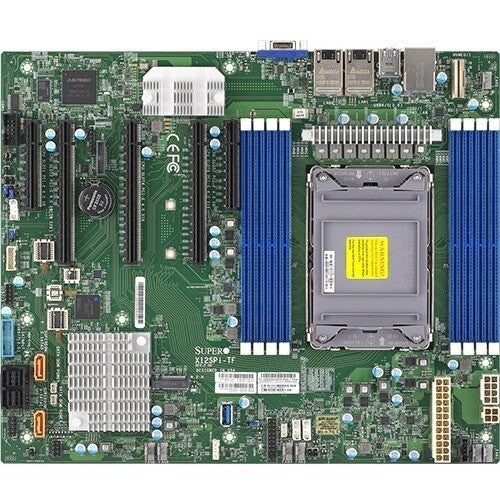

Supermicro MBD-X12SPI-TF-O X12SPI-TF Server Motherboard - Intel C621A Chipset

General Information

• Manufacturer: Supermicro Computer, Inc
• Manufacturer Part Number: MBD-X12SPI-TF-O
• Brand Name: Supermicro
• Product Model: X12SPI-TF
• Product Name: X12SPI-TF Server Motherboard
• Packaged Quantity: 1
• Package Type: Retail
• Product Type: Server Motherboard

Processor & Chipset

• Chipset Manufacturer: Intel
• Chipset Model: C621A
• Total Processor Supported: 1
• Processor Socket: Socket LGA-4189
• Processor Generation Supported: 3rd Gen
• Processor Supported: Xeon

Memory

• Number of Memory Slots: 8
• Memory Form Factor:
• DIMM
• RDIMM
• LRDIMM
• Maximum Memory Supported: 2 TB
• Memory Technology: DDR4 SDRAM
• Memory Speed Supported: 3200 MHz
• Intel Optane Memory Ready: Yes

I/O Controller

• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels:
• 0
• 1
• 5
• 10

Video

• Onboard Video: On-board Video Chipset
• Graphics Controller Model: AST2600

Network & Communication

• 10Gigabit Ethernet: Yes

I/O Expansions

• Total Number of Expansion Slots: 5
• Total Number of PCI Express Slots: 5
• Number of PCI Express x8 Slots: 2
• Number of PCI Express x16 Slots: 3

Interfaces/Ports

• Total Number of USB Ports: 5
• Number of USB 2.0 Ports: 2
• Number of USB 3.2 Ports: 1
• Number of USB 3.2 Gen 1 Ports: 2
• VGA: Yes
• Number of Network (RJ-45) Ports: 2

Onboard Interfaces

• Number of SATA Interfaces: 2
• Number of M.2 Interfaces: 1
• Total Number of Onboard USB Ports: 4
• Number of Onboard USB 2.0 Ports: 2
• Number of Onboard USB 3.2 Ports: 2

Physical Characteristics

• Form Factor: ATX
• Width: 12.1"
• Depth: 10"

Miscellaneous

• Package Contents:
• X12SPI-TF Server Motherboard
• 2 x I/O Cables
• 1 x CPU Carrier
• 1 x I/O Shield
• 1 x QRG
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 1 Year from Supermicro
