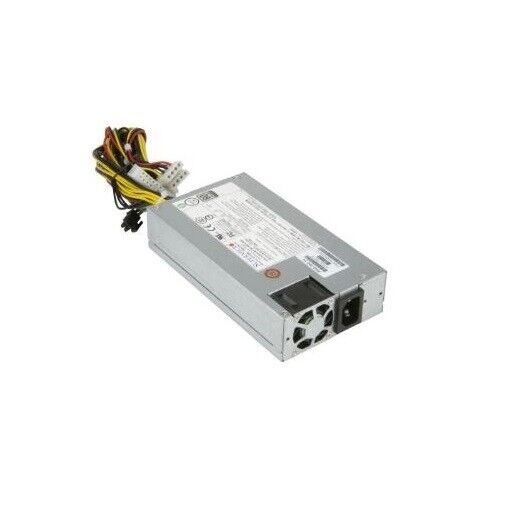

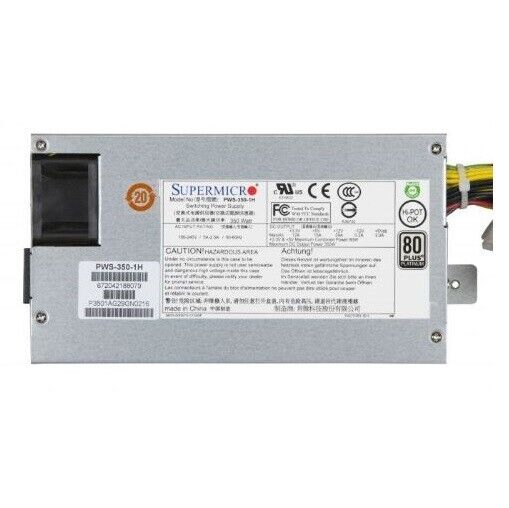

Supermicro PWS-350-1H 350W Multi-output 1U ATX 80 Plus Platinum Power Supply

Marketing Information
• Designed for Mainstream 1U Server
• 24 Pin ATX Output
• 80 Plus Platinum Efficiency
• Supermicro Certified
The Supermicro PWS-350-1H is an 80 Plus Platinum level power supply capable of continuously supplying 350W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. All materials contained comply with RoHS requirements and are certified by Supermicro.

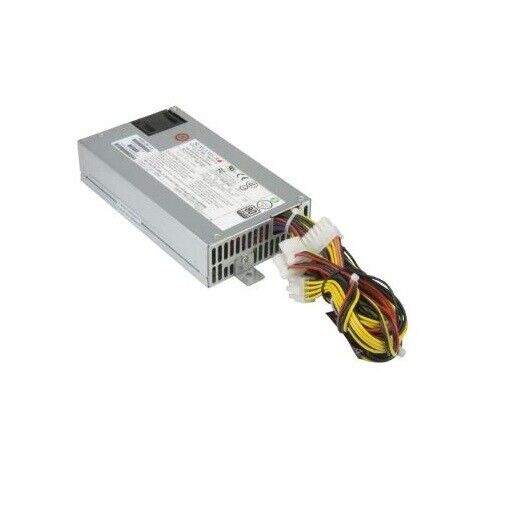

Cables Included:
• 1x 24 Pin ATX (Motherboard)
• 1x 8 Pin 12V (CPU)
• 1x (4+4) 8 Pin 12V (CPU)
• 2x 4 Pin Legacy HDD

Detail Specifications
Total Power Output: 350W
Type: Single
Type of Power Supply: Power Supply
Form Factor: 1U
+5V: 15A
+12V: 29A
+3.3V: 12A
5V Standby: 3A
Input Voltage Range: 100-240Vac
Input Frequency Range: 50-60Hz
PMBus: 5 - 2.5A
Output Type: 24Pin ATX Cable Output
8Pin / 4Pin (12V) Connector: Both
PFC: Yes
PMBus: No

Energy Efficiency
94% Peak

80 Plus Certification
80 Plus Platinum

Validated Systems
SYS-1019C-FHTN8, SYS-1019D-4C-FHN13TP, SYS-1019D-FHN13TP, SYS-5018R-M, SYS-5019C-M, SYS-5019C-M4L, SYS-5019C-MHN2, SYS-5019P-M, SYS-5019P-MT, SYS-5019S-M, SYS-5019S-M-G1585L, SYS-5019S-M2, SYS-5019S-ML, SYS-5019S-MN4, SYS-5019S-MT

Validated Chassis
CSE-512F-350B1, CSE-513BTQC-350B, CSE-513BTQC-350WB, CSE-515-350, CSE-813MFTQC-350CB, CSE-813MFTQC-350CB2

Product Environmental Compliance
RoHS and REACH compliant, details available upon request

Warranty Information
1 Year  - Direct from the Manufacturer
