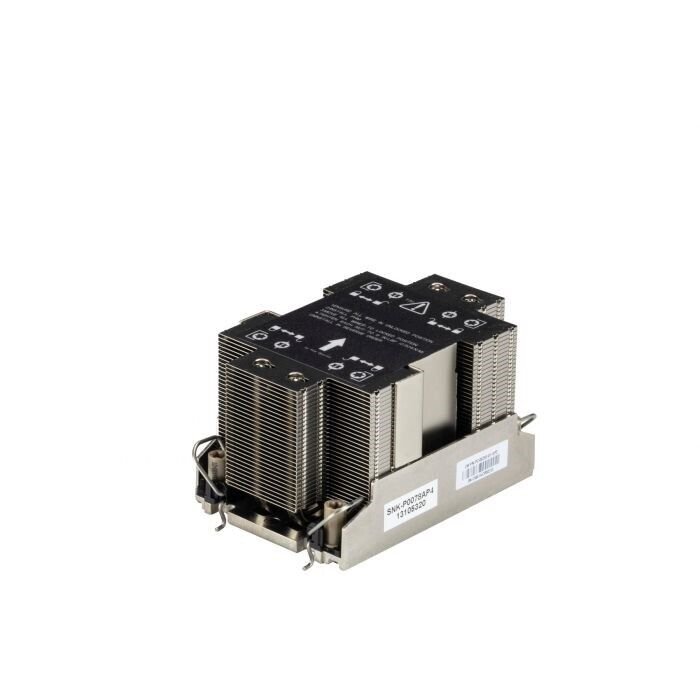

Supermicro SNK-P0078AP4 Fan 2U Active CPU HS for X12 Whitley and Cedar Island
Share
This CPU heat sink is designed for certain X12 generation systems equipped with 3rd Generation Intel Xeon Scalable Processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Detail Specifications
Manufacturer
Supermicro
Server Form Factor
2U
Cooling Type
Active
CPU Configuration
Uni Processor, Dual Processor
Supported CPU SKU
3rd Gen Intel Xeon Scalable Processors
Supported CPU Socket
FCLGA4189
Supported CPU TDP
Up to 270 Watts
Attached Cooling Fan
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 10,000 RPM
Acoustic Noise: 57.5 dB(A) at Rated Speed
Fan Dimensions: 60L x 60H x 25D (mm)
Position: Middle
MTBF/MTTF: 198,425 Hours at 40 OC Ambient
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
Warranty Information
5 Year - Direct from the Manufacturer
