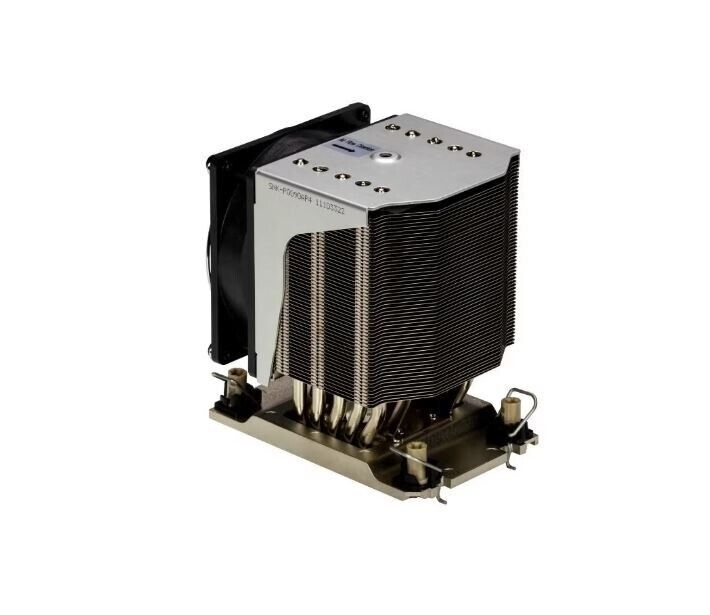

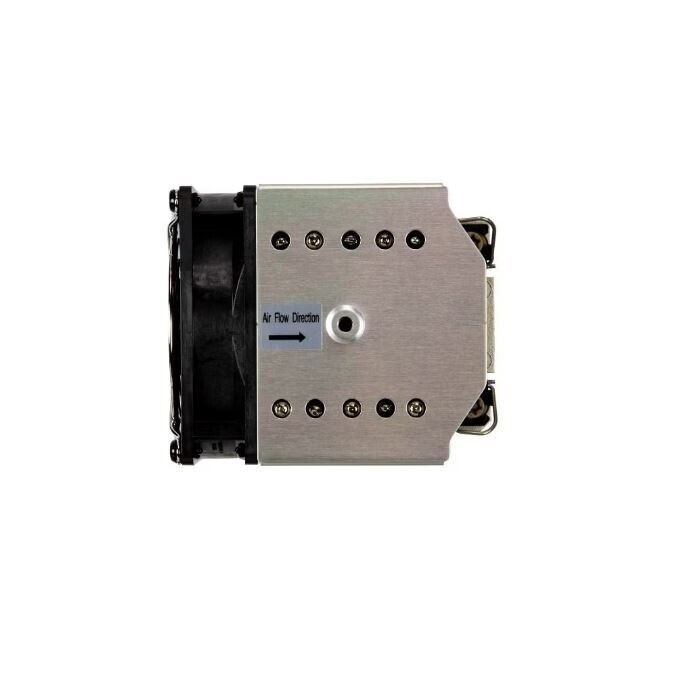

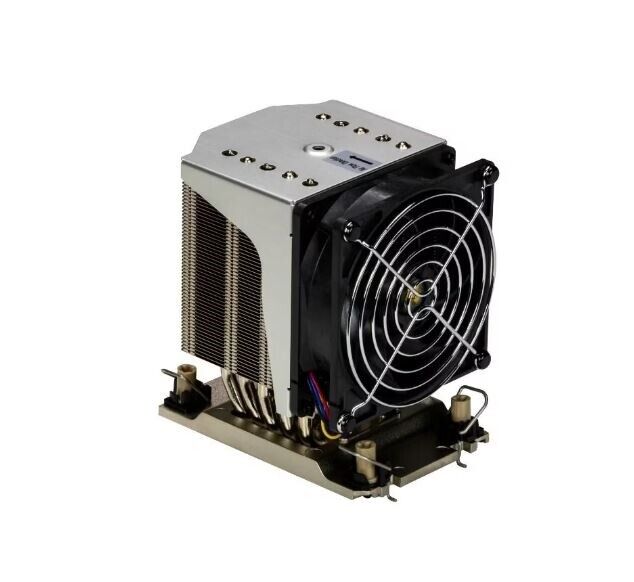

Supermicro SNK-P0090AP4 AC 4U Active CPU HS for X13 Gen. Intel Eagle Stream

Marketing Information
This CPU heat sink is designed for certain Supermicro X13 generation systems equipped with 4th Generation Intel Xeon Scalable Processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

Detail Specifications
Brand: Supermicro

Server Form Factor
4U

Cooling Type
Active

CPU Configuration
Uni Processor, Dual Processor, Multi Processor

Supported CPU SKU
4rd Gen Intel Xeon Scalable Processors

Supported CPU Socket
LGA4677-1/E1

Supported CPU TDP
Up to 350 Watts

Attached Cooling Fan
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 4,700 RPM
Acoustic Noise: 43 dB(A) at Rated Speed
Fan Dimensions: 92L x 92H x 25D (mm)
Position: Front Side
MTBF/MTTF: 121,457 Hours

Product Environmental Compliance
RoHS and REACH compliant, details available upon request
