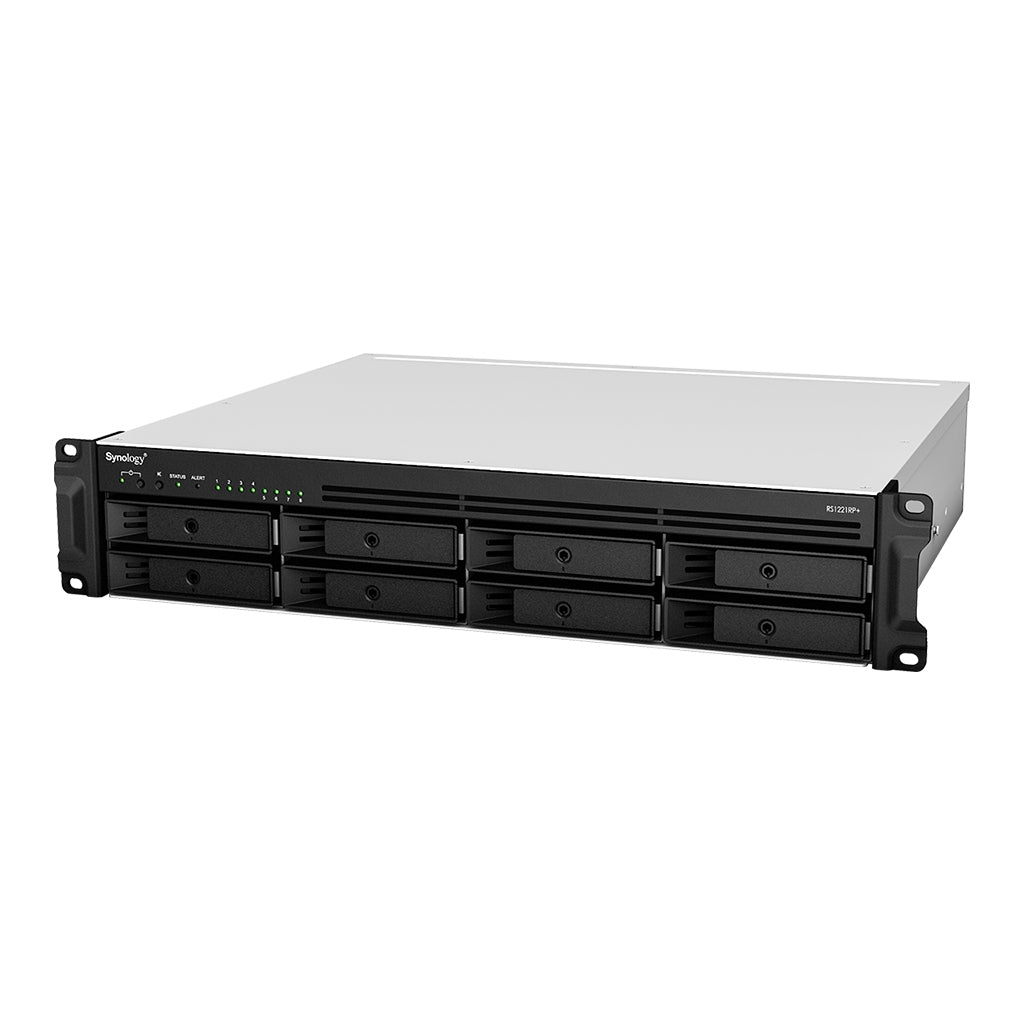

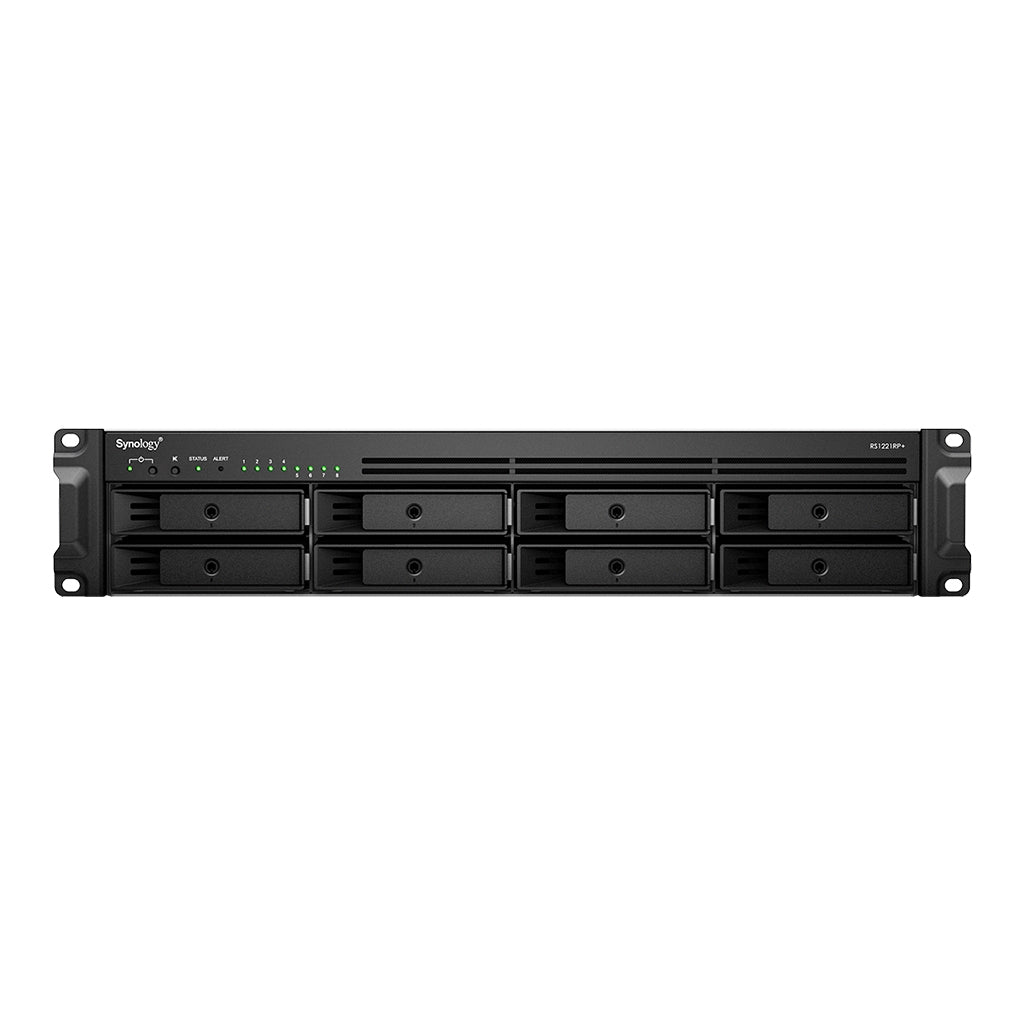

Synology RS1221RP+ Network Attached Storage 8bay Rack Station RS1221RP+ Diskless

Vendor: Synology
SKU: 250891
MPN: RS1221RP+

Marketing Information
Compact and reliable
The RS1221+/RS1221RP+, at only 30 to 38 centimeters deep, is built for space-sensitive deployments. Boasting over 100K 4K random read IOPS and 2,315 MB/s sequential read1, the RS1221+/RS1221RP+ is equipped to handle heavy workloads in data-intensive environments. The RS1221RP+ additionally features an extra level of protection with redundant power supplies.

Compute
AMD Ryzen™ V1500B quad-core 2.2 GHz
Throughput
2,300 MB/s seq. read 100K 4K random read IOPS1
Memory
4 GB ECC DDR4 Up to 32 GB
Compact
30cm depth (38cm for RP model)

A compact design for space efficiency
The RS1221+ and its RX418 expansion units are designed to help you save space in compact deployments. At only 30 centimeters, half the length of a typical 2U unit, it fits perfectly snug onto 2-post or shallow rackmount enclosures. The RS1221RP+ with dual power supplies comes in at 38 cm, also fitting most shallow depth enclosures.2
• Fits into shallow rackmount enclosures
• Easy-to-install on 2-post racks


Detail Specifications
CPU
CPU Model
AMD Ryzen V1500B
CPU Architecture
64-bit
CPU Frequency
4-core 2.2 GHz
Hardware Encryption Engine (AES-NI)
Yes
Memory
System Memory
4 GB DDR4 ECC SODIMM
Memory Module Pre-installed
4 GB (4 GB x 1)
Total Memory Slots
2
Maximum Memory Capacity
32 GB (16 GB x 2)
Notes
- Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
- Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays
8
Maximum Drive Bays with Expansion Unit
12 (RX418 x 1)
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Single Volume Size
108 TB
Hot Swappable Drive
Yes
Notes
- "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
- Each internal volume (may consist of multiple drives) is expandable up to 108TB.

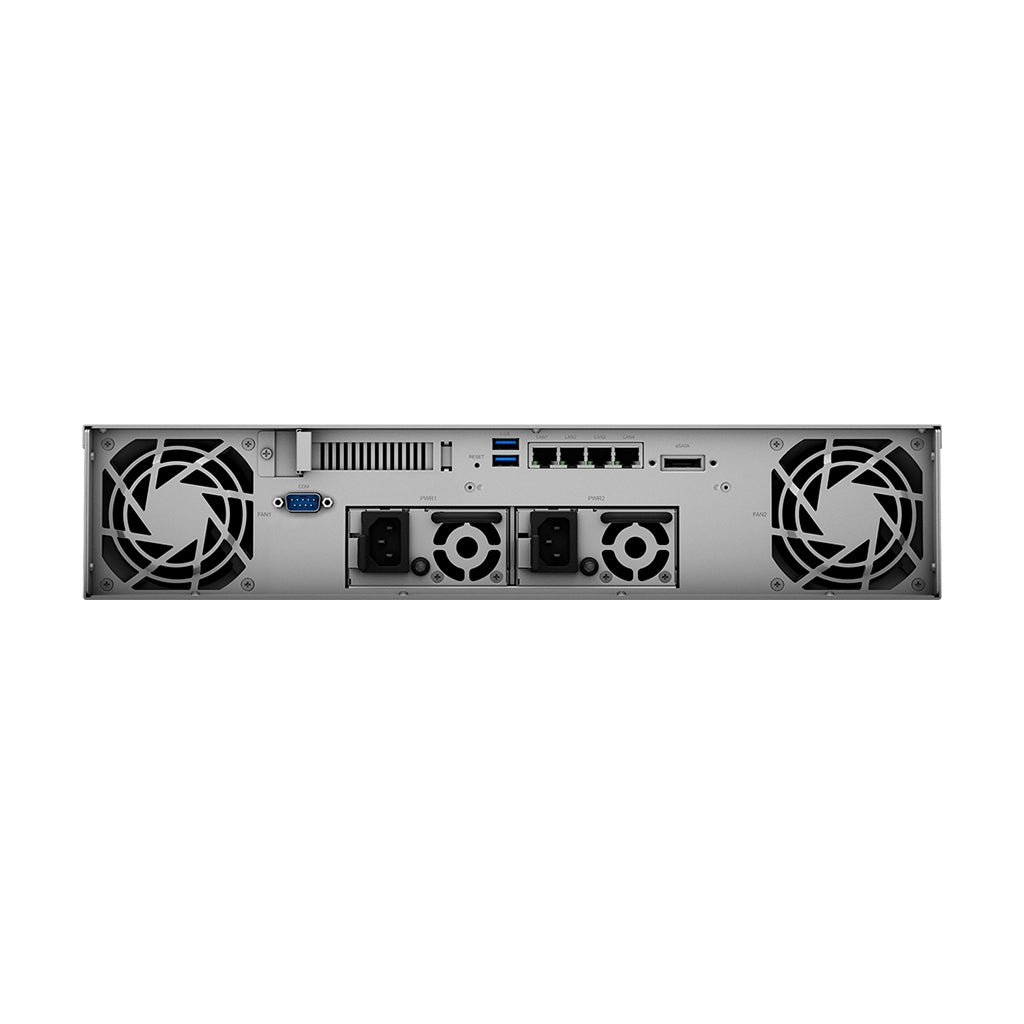

External Ports
RJ-45 1GbE LAN Port
4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port
2
eSATA Port
1
Notes
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion
1 x Gen3 x8 slot (x4 link)
File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
Notes
exFAT Access is purchased separately in Package Center.
Appearance
Form Factor (RU)
2U
Rack Installation Support
RS1221RP+ :
4-post 19" rack (Synology Rail Kit - RKS1317)
Notes
The rail kit is sold separately
Others
System Fan
80 mm x 80 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Power Recovery
Yes
Noise Level
RS1221RP+ :
40 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
RS1221RP+ :
350 W
Redundant Power Supply
Yes
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
RS1221RP+ :
61.94 W (Access) 29.98 W (HDD Hibernation)
British Thermal Unit
RS1221RP+ :
TU/hr (Access) 102.30 BTU/hr (HDD Hibernation)
Notes
- Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
- Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A), Temperature: 24.25-25.75oC, Humidity: 58.2-61.8%
Temperature
Operating Temperature
0oC to 35oC (32oF to 95oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Relative Humidity
5% to 95% RH
Certification
FCC
CE
BSMI
EAC
CCC
KC
VCCI
RCM
Environment
RoHS Compliant
Packaging Content
RS1221RP+ :
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1
Optional Accessories
RS1221RP+ :
DDR4 ECC SODIMM: D4ES01-4G/D4ES01-8G/D4ECSO-2666-16G
Expansion Units: RX418
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5200
M.2 SSD 10GbE Combo Adapter Card: E10M20-T1
M.2 SSD Adapter Card: M2D20
10GbE Network Interface Card: E10G18-T2/E10G18-T1/E10G17-F2
Rail Kit Sliding: RKS1317
VisualStation: VS960HD/VS360HD
Surveillance Device License Pack
Notes
RS1221RP+ :
All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Warranty Information
3 Years - Direct from the Manufacturer
