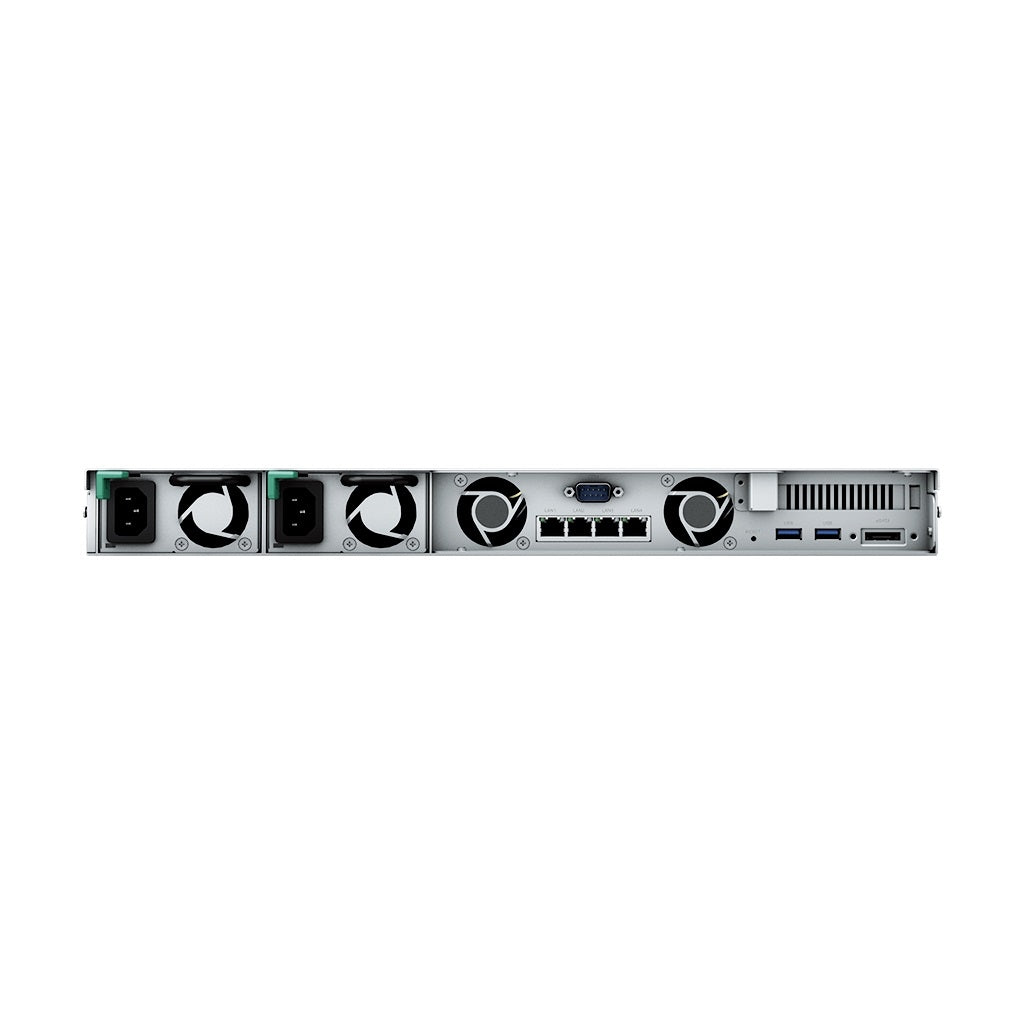

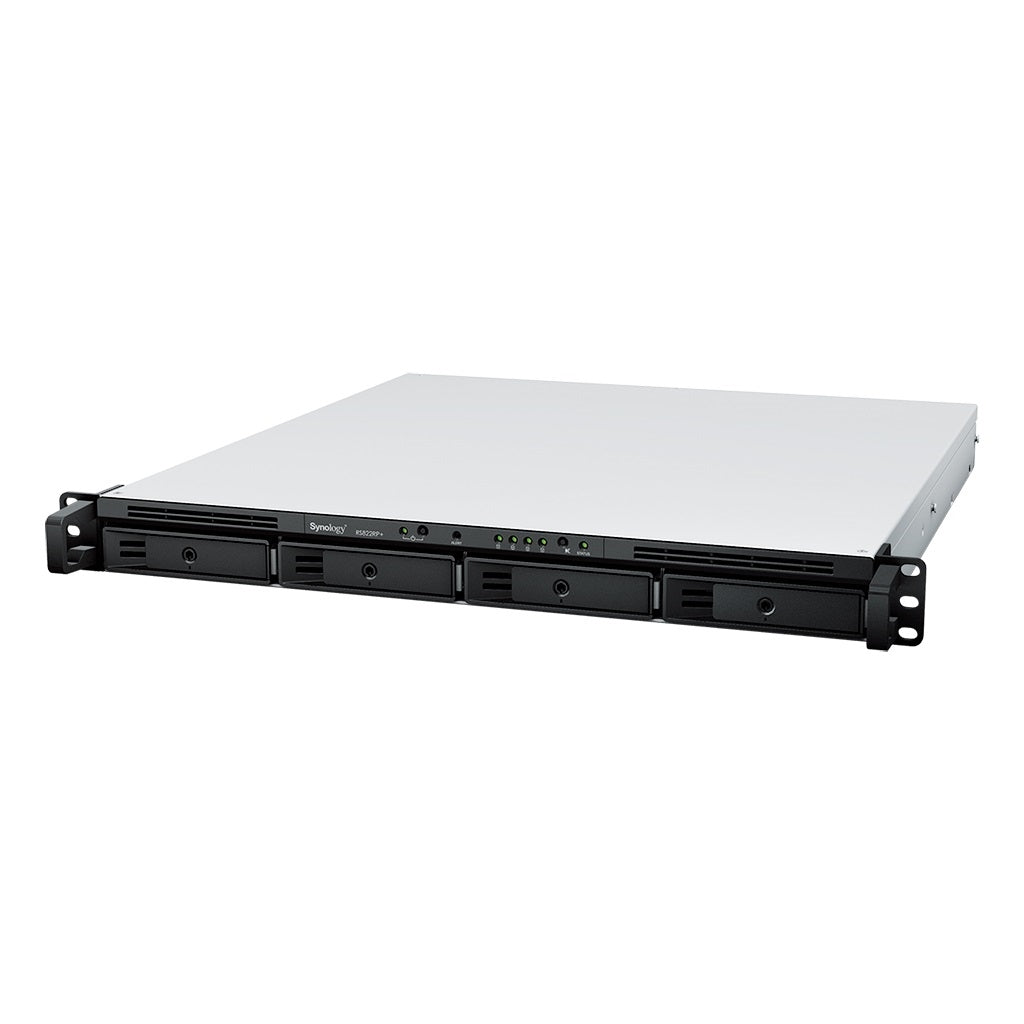

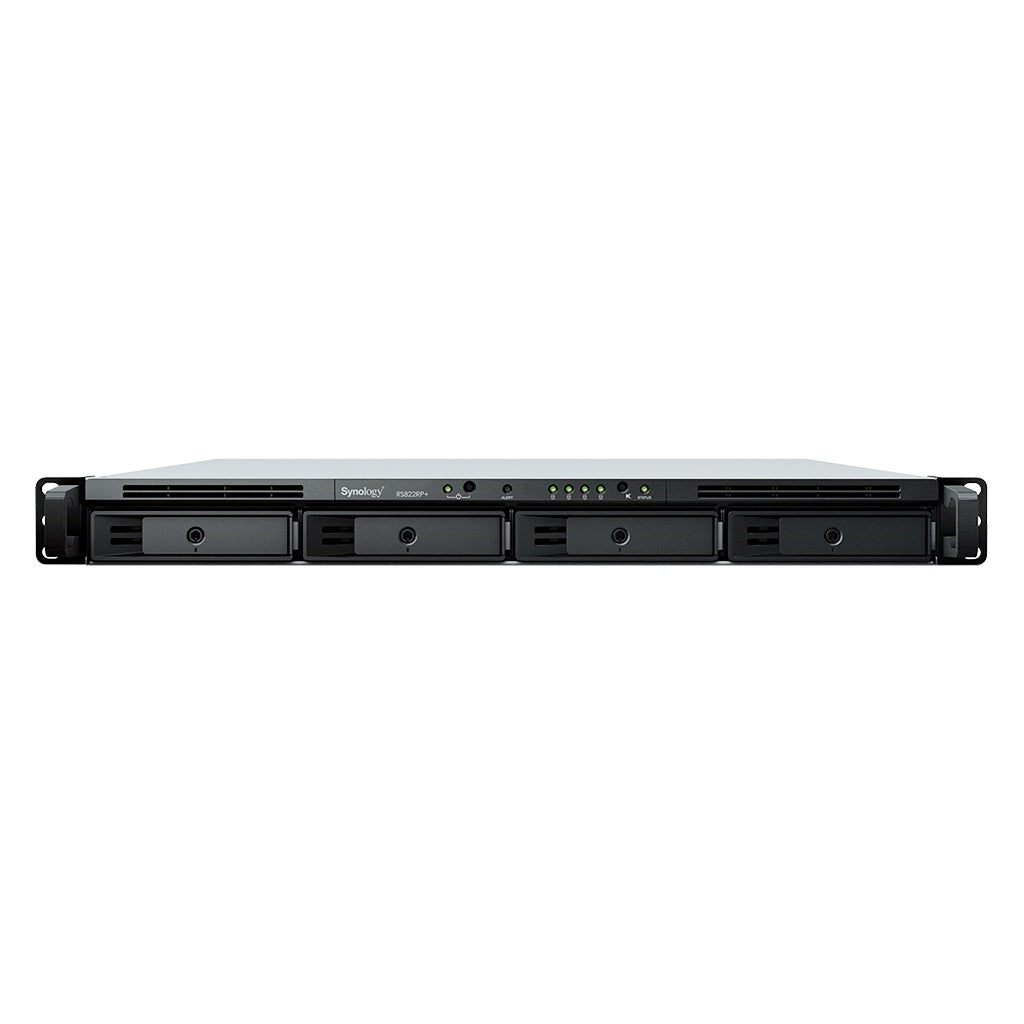

Synology RS822RP+ NAS 4-bay RackStation (Diskless) Retail

Vendor: Synology
SKU: 265458
MPN: RS822RP+

Marketing Information
An all-in-one edge storage solution
The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.

Performance
2103/1074 MB/s sequential read/write throughput1
Scalability
Scale up to 8 drives with Synology Expansion Unit RX4182
Connectivity
Built-in 4 x 1GbE ports with 10/25 GbE expansion option3
Memory
Up to 32 GB DDR4 ECC

Built for reliability
RS822+/RS822RP+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS822+/RS822RP+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.
Furthermore, the RS822RP+ features a redundant power supply for an extra edge in service continuity.

Room for expansion
Easily adjust the RS822+/RS822RP+ to match your usage environment, whether it needs performance, faster networking, or higher storage capacity.

Note:
1. Performance figures are obtained through internal testing by Synology. Actual performance may vary depending on the testing environment, usage, and configuration. See performance charts for more information.
2. RS822+/RS822RP+ supports up to 8 drives with the addition of a Synology RX418 expansion unit, sold separately.
3. For the most up-to-date list of compatible NICs, please check our compatibility list.


Detail Specifications
CPU
CPU Model
AMD Ryzen V1500B
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
4-core 2.2 GHz
Hardware Encryption Engine (AES-NI)
Yes
Memory
System Memory
2 GB DDR4 ECC SODIMM
Memory Module Pre-installed
2 GB (2 GB x 1)
Total Memory Slots
2
Maximum Memory Capacity
32 GB (16 GB x 2)
Notes
- Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
- Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
- For more information about the recommended memory configurations, please check the Hardware Installation Guide (https://kb.synology.com/searchsources%5B%5Dhardware_installation_guide) of your Synology product.
Storage
Drive Bays
4
Maximum Drive Bays with Expansion Unit
8 (RX418 x 1)
Compatible Drive Type (See all supported drives: https://www.synology.com/en-id/compatibility)
3.5" SATA HDD
2.5" SATA SSD
Hot Swappable Drive
Yes
Notes
- "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
- The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more: https://www.synology.com/en-id/knowledgebase/DSM/tutorial/Storage/Why_does_my_Synology_NAS_have_a_single_volume_size_limitation)
External Ports
RJ-45 1GbE LAN Port
4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port
2
eSATA Port
1
Notes
- This devices 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
- The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion
1 x Gen3 x8 slot (x4 link)
File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
Appearance
Form Factor (RU)
1U
Rack Installation Support
4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
Notes
The rail kit is sold separately
Others
System Fan
RS822RP+ :
40 mm x 40 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Power Recovery
Yes
Noise Level
RS822RP+ :
38.8 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
150 W
Redundant Power Supply
RS822RP+ : Yes
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
47.69 W (Access)
16.7 W (HDD Hibernation)
British Thermal Unit
162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)
Notes
- For more information on how power consumption is measured, refer to this article (https://kb.synology.com/DSM/tutorial/How_is_power_consumption_tested_on_Synology_devices).
- Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A), Temperature: 24.25-25.75oC, Humidity: 58.2-61.8%
Temperature
Operating Temperature
0oC to 35oC (32oF to 95oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Relative Humidity
5% to 95% RH
Certification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL
Environment
RoHS Compliant
Packaging Content
RS822RP+ :
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1
Optional Accessories
DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
Expansion Units: RX418
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5210
M.2 SSD and 10GbE Combo Adapter Card: E10M20-T1
M.2 SSD Adapter Card: M2D20
25GbE Network Interface Card: E25G21-F2
10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
Rail Kit Sliding: RKS-02
Rail Kit Mounted: RKM114
VisualStation: VS360HD
Surveillance Device License Pack
Notes
- Certain items may not be available in your location. Please contact your local distributors for more information.
- All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Warranty Information
3 Years - Direct from the Manufacturer
