TP-Link Archer BE230 Wi-Fi 7 IEEE 802.11be Ethernet Wireless Router - Dual Band

General Information

• Manufacturer: TP-LINK Technologies Co., Ltd
• Brand Name: TP-Link
• Manufacturer Part Number: ARCHER BE230
• Product Line: Archer BE230
• Product Name: Archer BE230 Wireless Router
• Product Type: Wireless Router

Marketing Information:

• Exploring the New Era of Home WiFi | BE3600 Dual-Band Wi-Fi 7 Router | Next-Level Experience Realized with 3.6 Gbps WiFi 7
• Powered by Wi-Fi 7 technology, Archer BE230 delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
• Multi-Link Operation
• Higher speed, lower latency, more reliable.
• Multi-RUs
• Makes full use of resource for higher throughput
• 4K-QAM
• Packs 120% data for higher speeds
• 2.5 Gigabit Wired Connections
• 1× 2.5 Gbps WAN port and 1× 2.5 Gbps LAN port make full use of the Gigabit speeds from your local ISP. Breakthrough the 1G bottleneck and drive your devices to peak performance.
• USB 3.0 Ports
• Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.
• Boosted WiFi Coverage Throughout Your Home
• 4× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
• Flexibly Create Whole Home Mesh WiFi
• Archer BE230 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
• Your Security is Our Priority
• With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.
• VPN Clients and Server Supported
• Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE230 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
• Setup Got Easier than Ever
• Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

Technical Information

• Virtual Assistant Supported: Alexa/Google Assistant
• Wi-Fi Generation: Wi-Fi 7
• Network Band: Dual Band
• MU-MIMO Technology: Yes
• Number of Bandwidth Streams: 4

Wireless Specifications

• Broadband Transmission Technology: Ethernet
• Wireless LAN Standard: IEEE 802.11be
• ISM Band: Yes
• UNII Band: Yes
• ISM Maximum Frequency: 2.40 GHz
• UNII Maximum Frequency: 5 GHz
• Total Number of Antennas: 4
• Number of External Antennas: 4
• Total Wireless Transmission Speed: 460.80 MB/s
• Encryption Standard:
  • WPA
  • WPA2
  • WPA3
  • WPA-ENT
  • WPA2-ENT
  • WPS
• Firewall Type: SPI
• Wi-Fi Mesh System: Yes

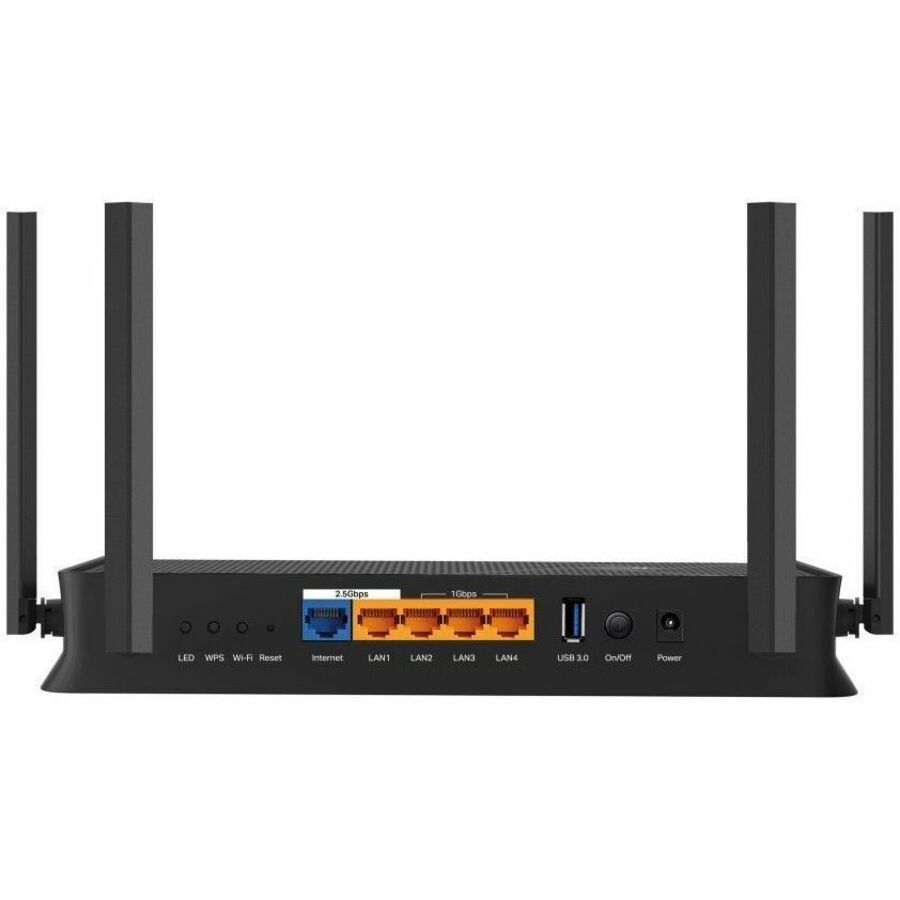

Interfaces/Ports

• Total Number of Network Ports: 5
• Number of Network (RJ-45) Ports: 4
• USB: Yes
• Number of Broadband (RJ-45) Ports: 1
• USB Standard: USB 3.0

Network & Communication

• Ethernet Technology: 2.5 Gigabit Ethernet
• VPN Supported: Yes

Miscellaneous

• Certifications & Standards:
  • CE
  • FCC
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
