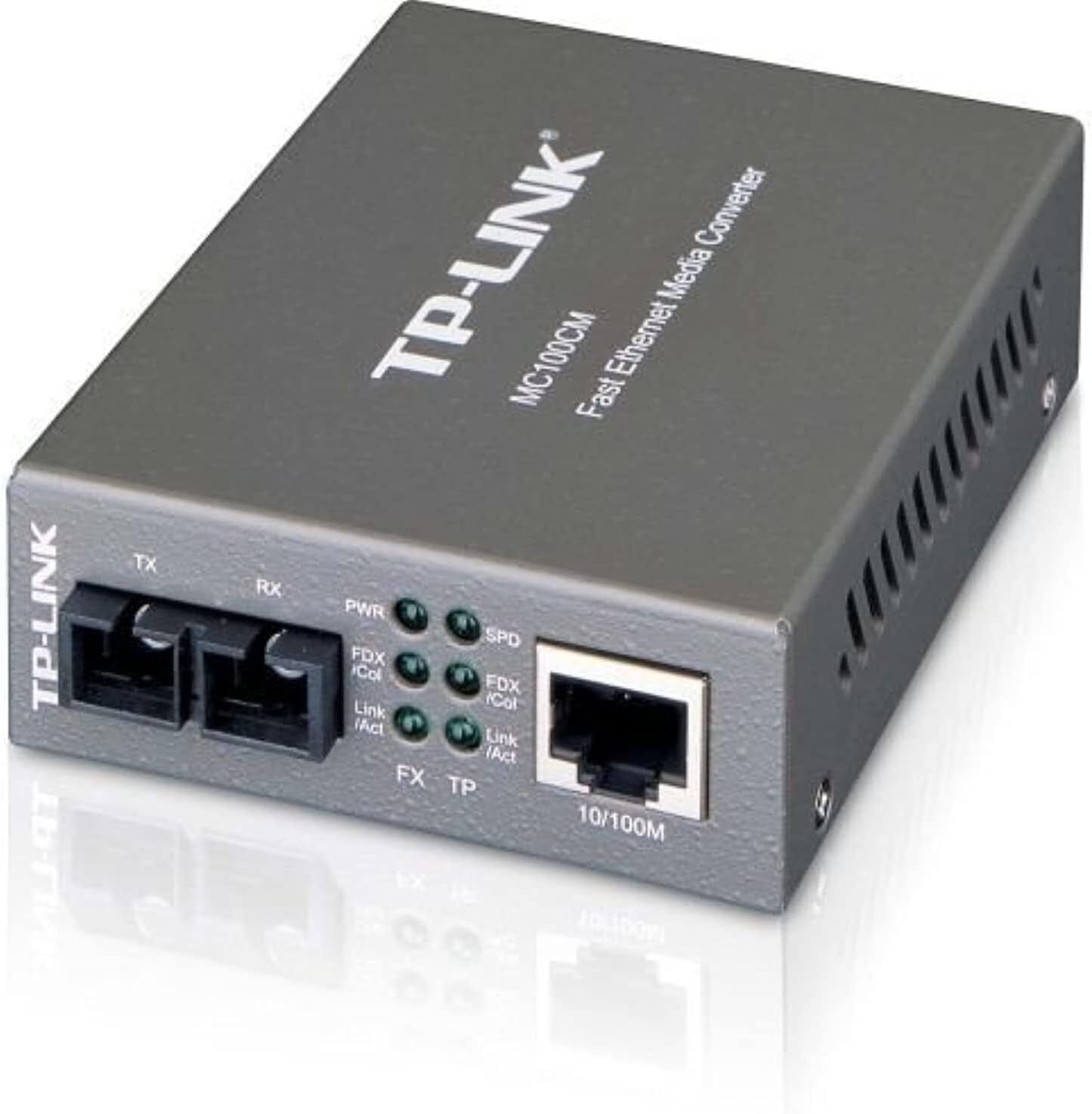

TP-Link MC100CM Network Fast Ethernet Media Converter 10 100M 2km Retail

$37.53 USD

Shipping calculated at checkout.

In stock: 2

Description

General Information
Manufacturer TP-LINK Technologies Co., Ltd
Brand Name TP-Link
SKU: 88182
Manufacturer Part Number MC100CM
Product Model MC100CM
Product Name MC100CM Fast Ethernet Media Converter

Product Type Transceiver/Media Converter

TP-LINK MC100CM - Fast Ethernet SFP to RJ45 Fiber Media Converter - Fiber to Ethernet Converter - 10/100Mbps RJ45 Port to 100Base-FX Multi-Mode Fiber
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector.

Features

Designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa.
Works at 100Mbps in Full-Duplex mode for both TX port and FX port.
Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.
Extends fiber distance up to 1.2 mile (2km).
Easy-to-view LED indicators provide status to monitor network activity easily.
External power supply. Wave Length: 1310nm. Max Power Consumption: 2.4W.

Interfaces/Ports
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes

Number of SC Ports 1
Total Number of Ports 2

Media & Performance
Maximum Distance Supported 1.24 Mile
Media Type Supported Optical Fiber
Fiber Mode Supported Multi-mode
Fiber Optic Wavelength 1310 nm

Network & Communication
Network Technology 10/100Base-TX
100Base-FX
Ethernet Technology Fast Ethernet

Power Description
Power Source Power Adapter
Power Consumption 2.40 W

Miscellaneous
Additional Information
Wavelength: 1310 nm

Package Contents
MC100CM Fast Ethernet Media Converter
Power Adapter
Installation Guide
Environmentally Friendly Yes

Physical Characteristics
Form Factor External
