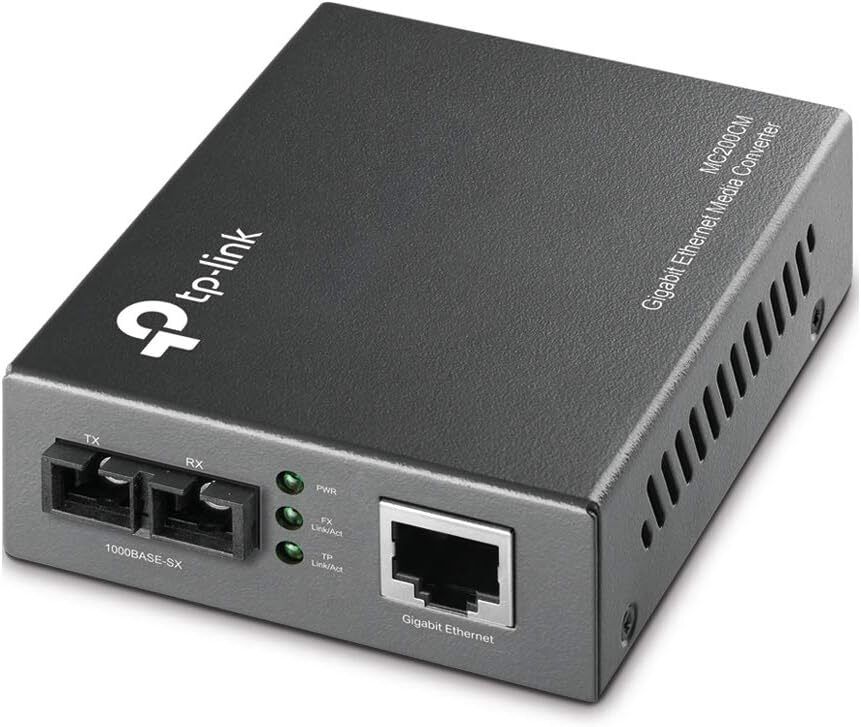

TP-Link MC200CM Gigabit Ethernet Media Converter 1000M 500m Retail
Regular price
$37.98 USD
Sale price
$37.98 USD
Regular price
$0.00 USD
Description
TP-Link MC200CM Gigabit Ethernet Media Converter 1000M 500m Retail
Current product
Current
Vendor:
TP-Link
TP-Link MC200CM Gigabit Ethernet Media Converter 1000M 500m Retail
Regular price
$37.98 USD
Sale price
$37.98 USD
Regular price
$0.00 USD
Options
Descriptions
Vendor: TP-Link
SKU: 88188
MPN: MC200CM
Marketing Information
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs 19system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
Key Features
Warranty: 2 year
Weight: 1.5 lbs
Detail Specifications
Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber, 0.22km using 62.5/125um fiber)
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Ports
1 1000M SC port
1 1000M RJ45 port (Auto MDI/MDIX)
Network Media
1000BASE-T : UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m)
1000BASE-FX : Multi-mode Fiber
LED Indicators
PWR, LINK, RX
Safety Emission
FCC, CE
Environment
Operating Temperature: 0C - 40C (32F - 104F)
Storage Temperature: -40C - 70C (-40F - 158F)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing
Power Supply
External Power Adapter
Warranty
2 Year - Direct from the Manufacturer
