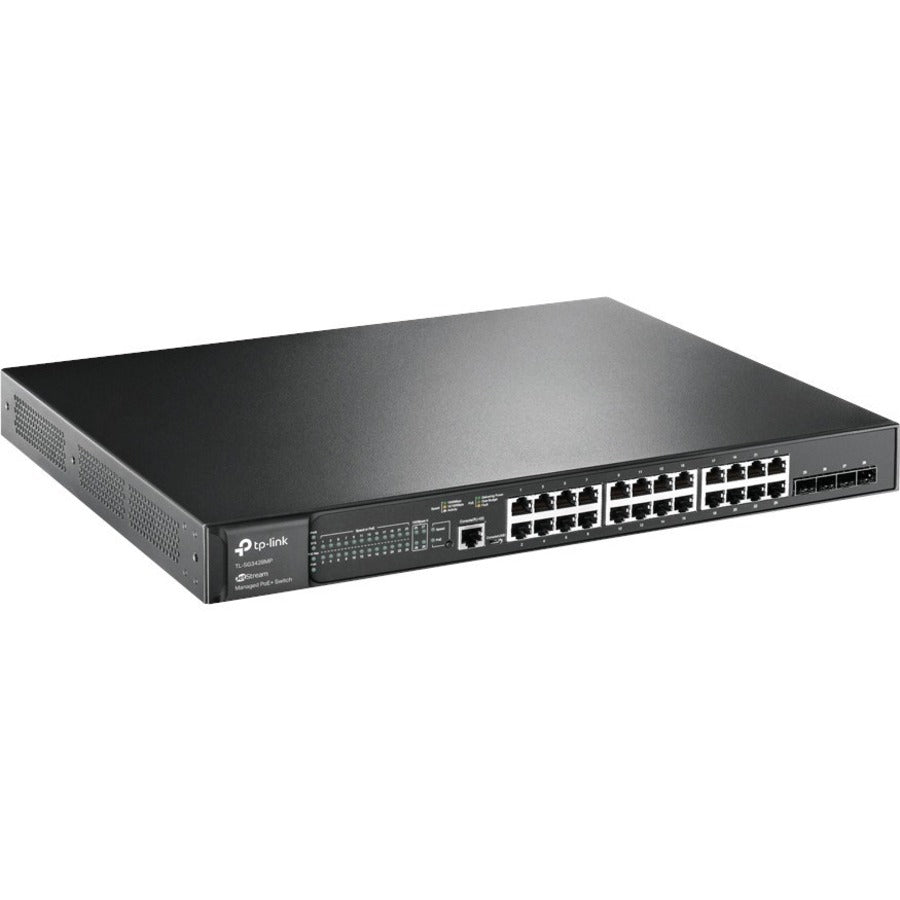

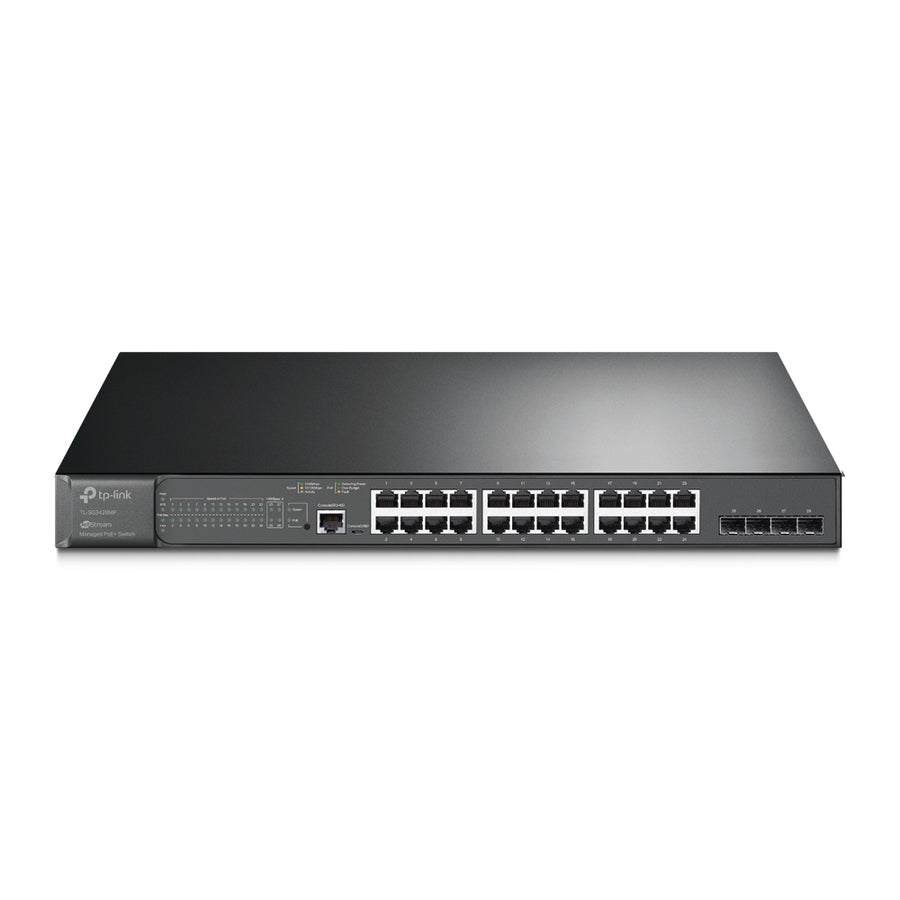

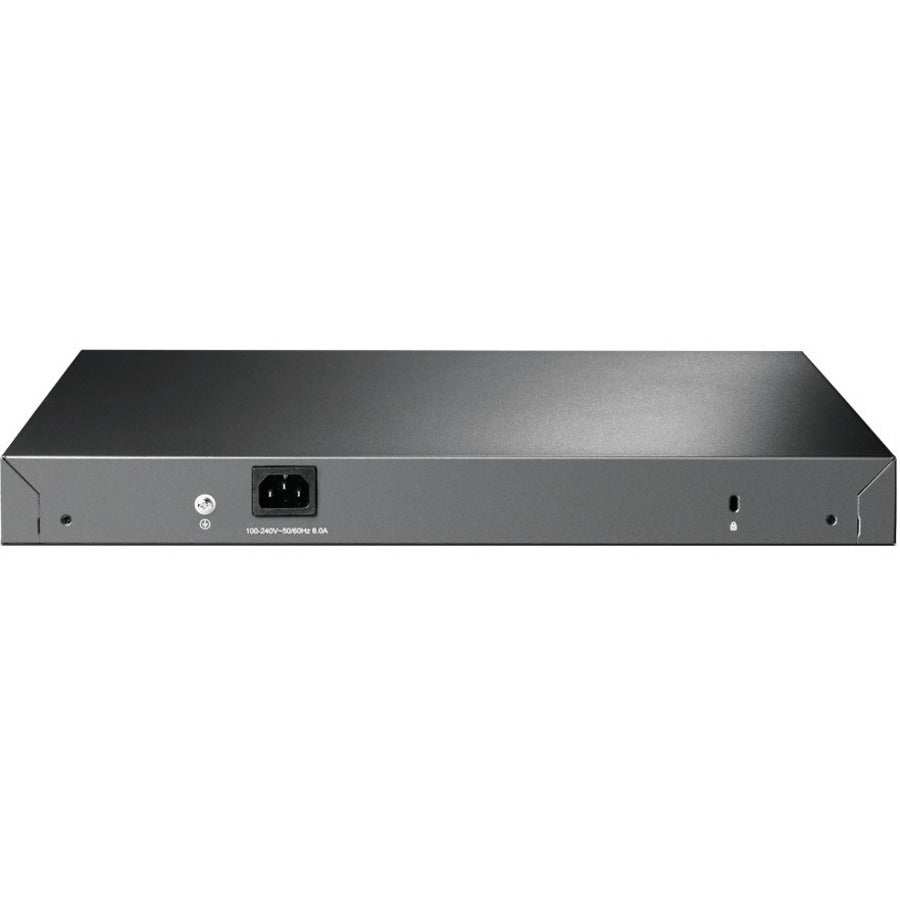

TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2+ Managed Switch w 24-Port PoE+

General Information

• Manufacturer: TP-LINK Technologies Co., Ltd
• Brand Name: TP-Link
• Manufacturer Part Number: TL-SG3428MP
• Product Line: JetStream
• Product Model: TL-SG3428MP
• Product Name: JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
• Product Type: Ethernet Switch

Interfaces/Ports

• Total Number of Network Ports: 24
• Modular: Yes
• Network (RJ-45): Yes
• Port/Expansion Slot Details:
• 24 x Gigabit Ethernet PoE+
• 4 x Gigabit Ethernet Expansion Slot

Media & Performance

• Media Type Supported:
• Optical Fiber
• Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology:
• 1000Base-T
• 1000Base-X

I/O Expansions

• Total Number of Expansion Slots: 4
• Expansion Slot Type: SFP (mini-GBIC)
• Shared SFP Slot: No
• Number of SFP Slots: 4

Network & Communication

• Layer Supported: 2
• Networking Standards:
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.1p
  • IEEE 802.3ad
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1s
  • IEEE 802.3x
  • IEEE 802.1Q
  • IEEE 802.1x
  • IEEE 802.1ab

Management & Protocols

• Manageable: Yes

Power Description

• PoE (RJ-45) Port: Yes
• PoE Budget: 384 W
• Frequency:
  • 50 Hz
  • 60 Hz
• Power Source: Power Supply
• Power Consumption: 34.40 W

Physical Characteristics

• Form Factor:
  • Rack-mountable
  • Desktop
• Height: 1.7"
• Width: 17.3"
• Depth: 13"

Miscellaneous

• Package Contents:
  • JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
• Country of Origin: China
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 5 Year from TP-LINK
