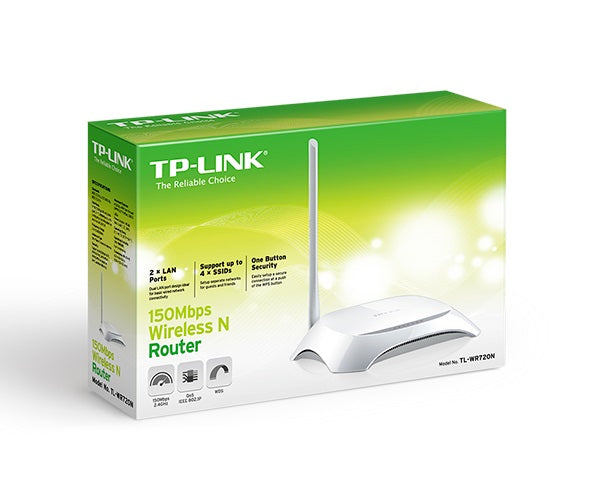

TP-Link TL-WR720N 150Mbps Wireless N Router - Up to 4 SSIDs support

• 150Mbps wireless transmission rate ideal for Internet surfing, e-mail and online chat
• Up to 4 SSIDs support multiple wireless networks with different SSIDs and passwords
• Easy wireless security encryption at a push of WPS button
• IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
• Note: TL-WR720N V2 contains one external fixed antenna, while TL-WR720 V1 contains one internal antenna.

What This Product Does

• The TL-WR720N is a simple and secure way to share your high-speed Internet connection at Wireless-N speeds for surfing the Internet, email or online chat. The wireless N Router is 802.11b & g compatible and gives users 802.11n performance up to 150Mbps at a remarkably affordable price. Bordering on 11n and surpassing 11g speed enables bandwidth-intensive applications such as video streaming. Users can enjoy a high quality experience when video streaming, using VoIP, or gaming online wirelessly, not previously practical with 11g devices.

Exceptional Wireless Performance at an Affordable Price

• TP-LINK’s TL-WR720N is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR720N gives users wireless performance at up to 150Mbps, 9X the speed and 4x the

Multi-SSID Networking - Simple and Secure Wireless Sharing

• TL-WR720N supports up to 4 SSIDs. It’s uniquely designed for users to set up additional wireless networks with additional SSIDs and Passwords for guests or friends. This ensures users are safe and there are no performance conflicts with different networks.

CCA Technology - Stable Wireless Signals

• Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhancing wireless performance.

HARDWARE FEATURES

• Interface:
  • 2 10/100Mbps LAN Ports
  • 1 10/100Mbps WAN Port
• Button: WPS/Reset
• External Power Supply: 5VDC / 0.6A
• Dimensions ( W x D x H ): 6.2 x 4.8 x 1.3 in.(158 x 122 x 32 mm)
• Antenna: 5dBi Fixed Omni Directional

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• Frequency: 2.4-2.4835GHz
• Signal Rate: Up to 150Mbps
• Reception Sensitivity:
  • 130M: -68dBm@10% PER
  • 108M: -68dBm@10% PER
  • 54M: -68dBm@10% PER
  • 11M: -85dBm@8% PER
  • 6M: -88dBm@10% PER
  • 1M: -90dBm@8% PER
• Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
• Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
• Transmission Power:
  • CE:
  • <20dBm(2.4GHz)
  • FCC:
  • <30dBm

SOFTWARE FEATURES

• Quality of Service: WMM, Bandwidth Control
• WAN Type: Dynamic IP/Static IP/PPPoE/ PPTP/L2TP/BigPond
• Management Features:
  • Access Control
  • Local Management
  • Remote Management
• DHCP: Server, Client, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, Comexe, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
• Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
• Firewall Security:
  • DoS, SPI Firewall
  • IP Address Filter/MAC Address Filter/Domain Filter
  • IP and MAC Address Binding

OTHERS

• Certification: FCC, RoHS
• Package Content:
  • TL-WR720N
  • Power Supply Unit
  • Resource CD
  • RJ-45 Ethernet Cable
  • Quick Installation Guide
• System Requirements:
  • Microsoft® Windows® 2000, XP, Vista™ or Windows 7, Windows8/ 8.1/10
  • MAC® OS, NetWare®, UNIX® or Linux
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~95% non-condensing
