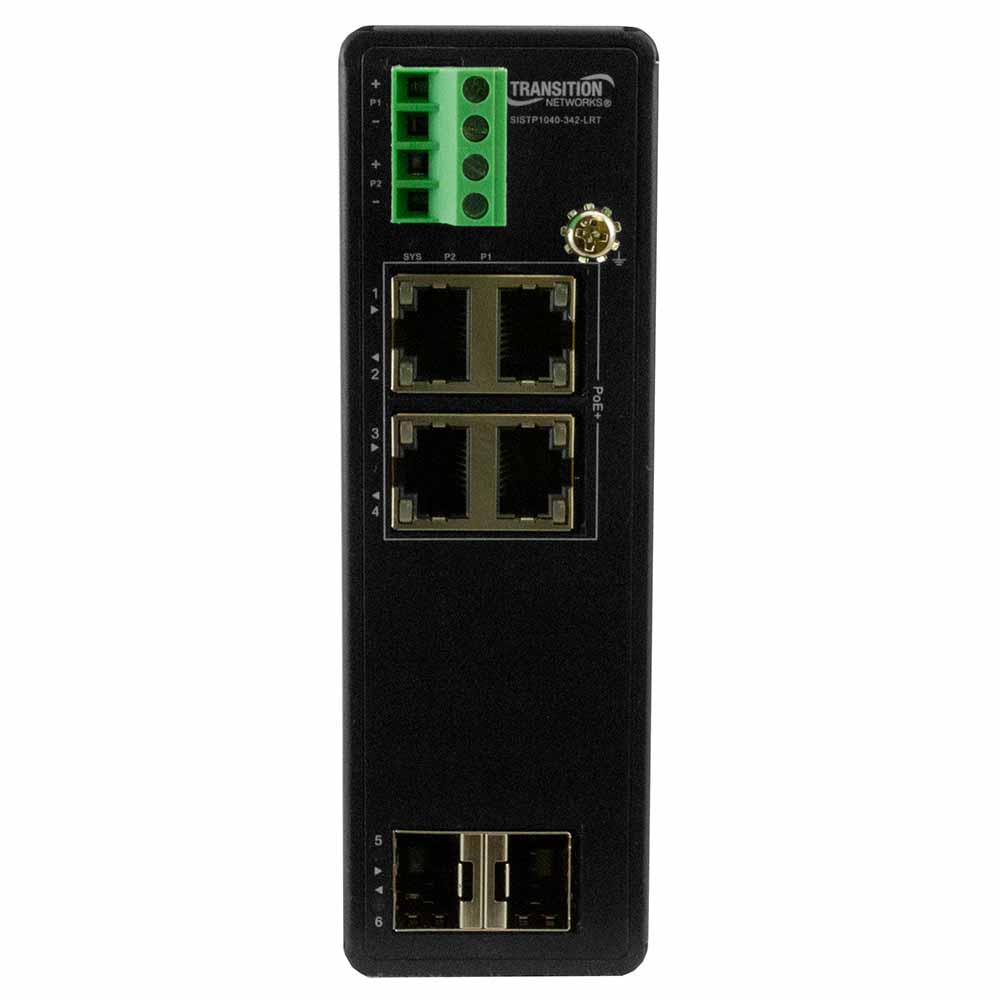

Transition Networks SISTP1040-342-LRT Hrd UnMDG Switch, 4-port GE POE+, 2 SFP

Transition Networks Unmanaged Hardened Gigabit Ethernet PoE+ Switch - 4 Ports - 2 Layer Supported - Modular - 2 SFP Slots - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable
This switch is an unmanaged full Gigabit Ethernet hardened PoE+ switch that complies with IEEE 802.3at and IEEE 802.3af. The switch has (4) 10/100/1000Base-T PoE+ ports with two 100/1000 dual speed SFP slots. It can deliver up to 30 Watts on each PoE+ port simultaneously. The SISTP1040-342-LRT can be used at the edge of a hardened network to provide connections for PoE devices in hazardous locations. The two fiber uplink ports can also be used in a daisy chain for maximum network reliability. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other hazardous environments.

Features:

• Support Jumbo Frame up to 9K bytes
• Layer 2 wire-speed switching engine
• Ruggedized metal closure
• IEEE 802.3az Energy Efficient Ethernet
• Fan-less design
• Wide operating temperature range (-40°C to +75°C)
• Dual Power input
• Din Rail and Wall Mount options
• IEEE 802.3at compliant

General Information:

• Manufacturer: Transition Networks, Inc
• Brand Name: Transition Networks
• Manufacturer Part Number: SISTP1040-342-LRT
• Product Model: SISTP1040-342-LRT
• Product Name: Unmanaged Hardened Gigabit Ethernet PoE+ Switch
• Product Type: Ethernet: Switch

Interfaces/Ports:

• Modular: Yes
• Uplink Port: Yes
• Stack Port: No
• Total Number of Network Ports: 4
• Port/Expansion Slot Details:
• 4 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

Management & Protocols:

• Manageable: No

Network & Communication:

• Layer Supported: 2

I/O Expansions:

• Expansion Slot Type: SFP (mini-GBIC)
• Number of SFP Slots: 2
• Shared SFP Slot: No

Media & Performance:

• Network Technology:
• 10/100/1000Base-T
• 1000Base-X
• Ethernet Technology: Gigabit Ethernet
• Media Type Supported:
• Twisted Pair
• Optical Fiber
