TRENDnet Network TPE-113GI Gigabit Power over Ethernet PoE Injector Retail

​General Information

• SKU 123377
• Vendor: TRENDnet
• MPN: TPE-113GI
• UPC: 710931505146

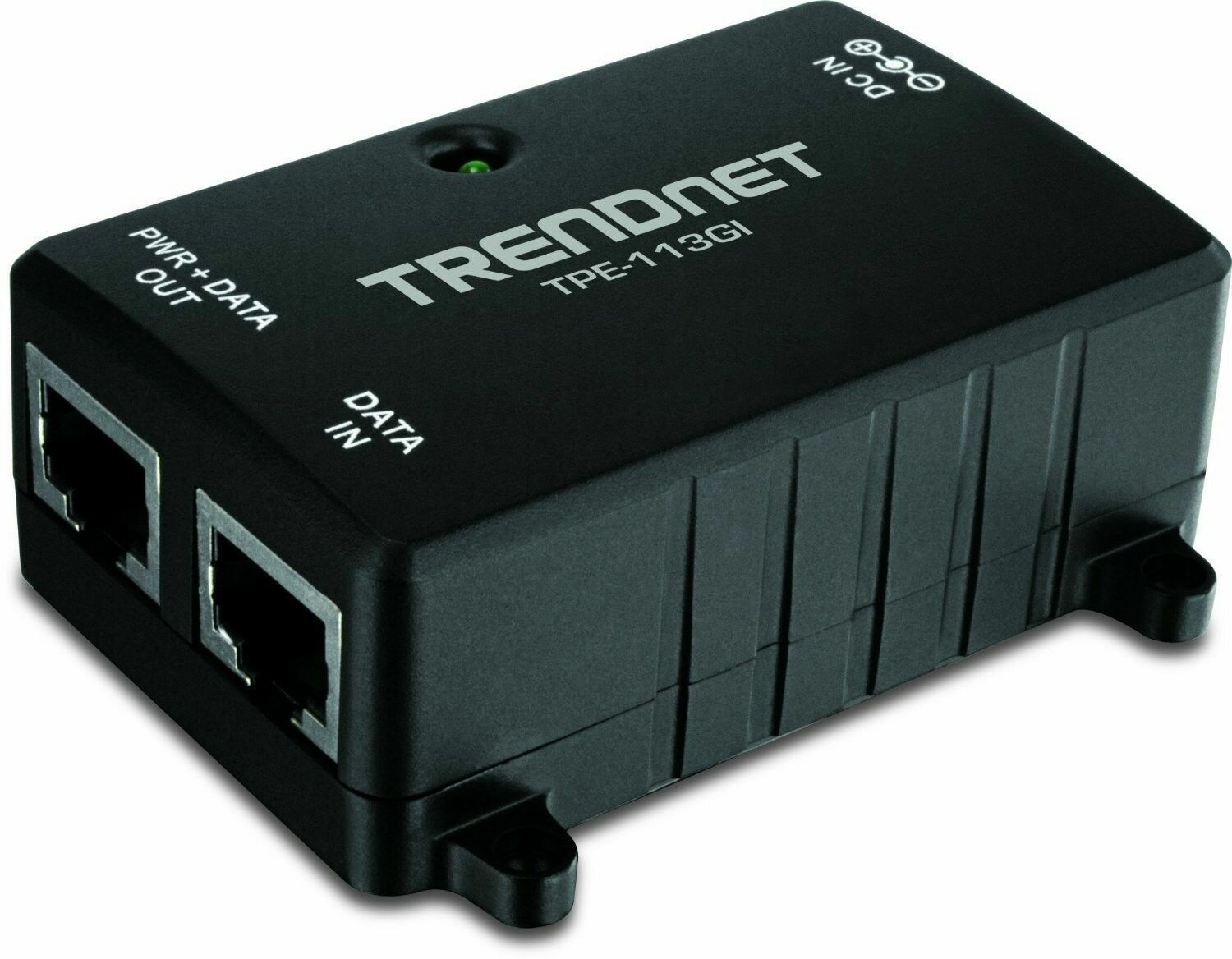

TRENDnet Network TPE-113GI Gigabit Power over Ethernet PoE Injector Retail

The Gigabit Power over Ethernet Injector, model TPE-113GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal.

Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 Ft.) to network PoE devices.

No need to buy a PoE switchâ?”use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations. This compact device safeguards valuable network equipment with short circuit protection. Quickly create an integrated PoE and non-PoE network at Gigabit speeds.

Detail Specifications

• Standard
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab Gigabit Ethernet
• IEEE 802.3af Power over Ethernet

Network Media

• 10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters
• 100Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters
• Gigabit: UTP/STP Cat 5e and 6 up to 100 meters

Ports

• 1 x 10/100/1000Mbps DATA-IN (Data only)
• 1 x 10/100/1000Mbps PWR+DATA OUT (Data + Power)

Data Lines

• Pair 1: Pin 1, 2
• Pair 2: Pin 3, 6

Power

• Input: 100240V, 5060Hz, 0.4A max.
• Output: 48V DC, 0.4A 18W max.

Power Consumption - 15.4 Watts (max.)

Certifications - CE, FCC

Warranty Information: 3-Year Limited Warranty direct from the manufacturer
