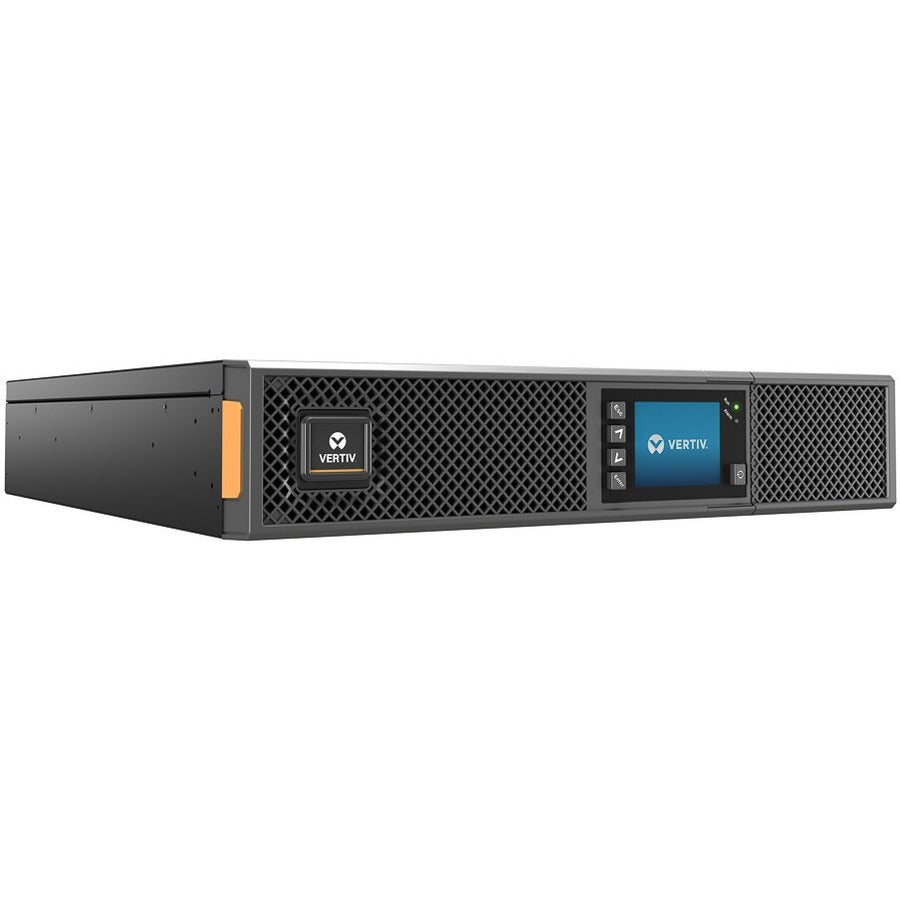

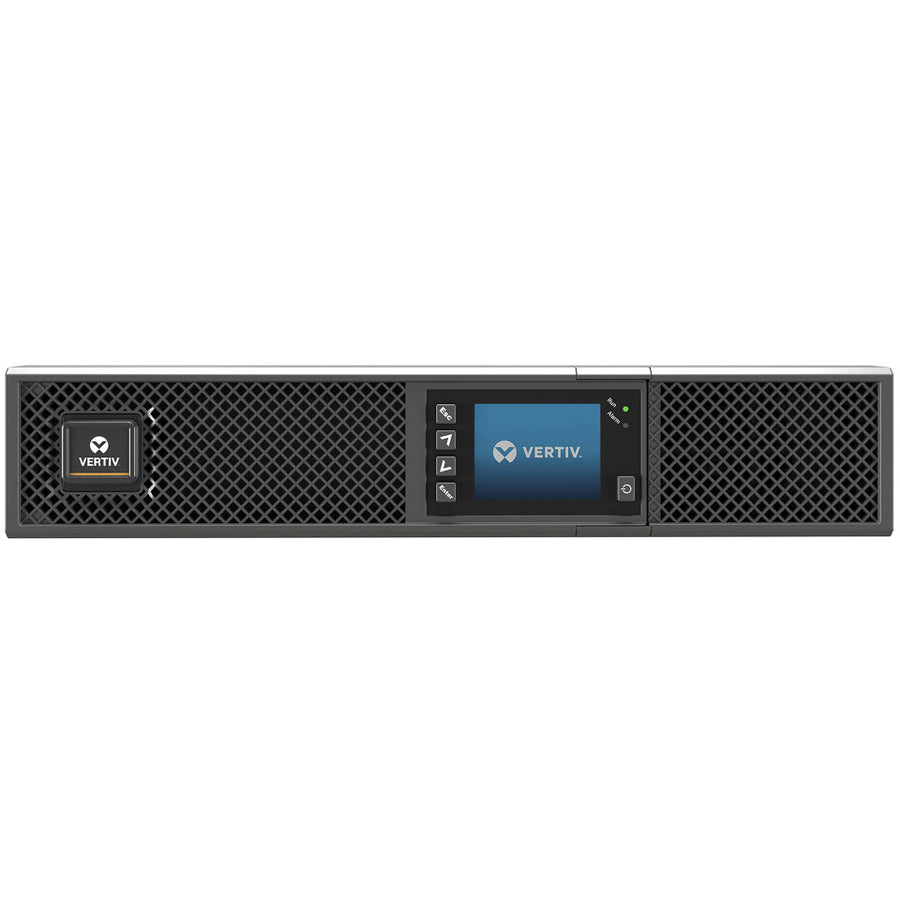

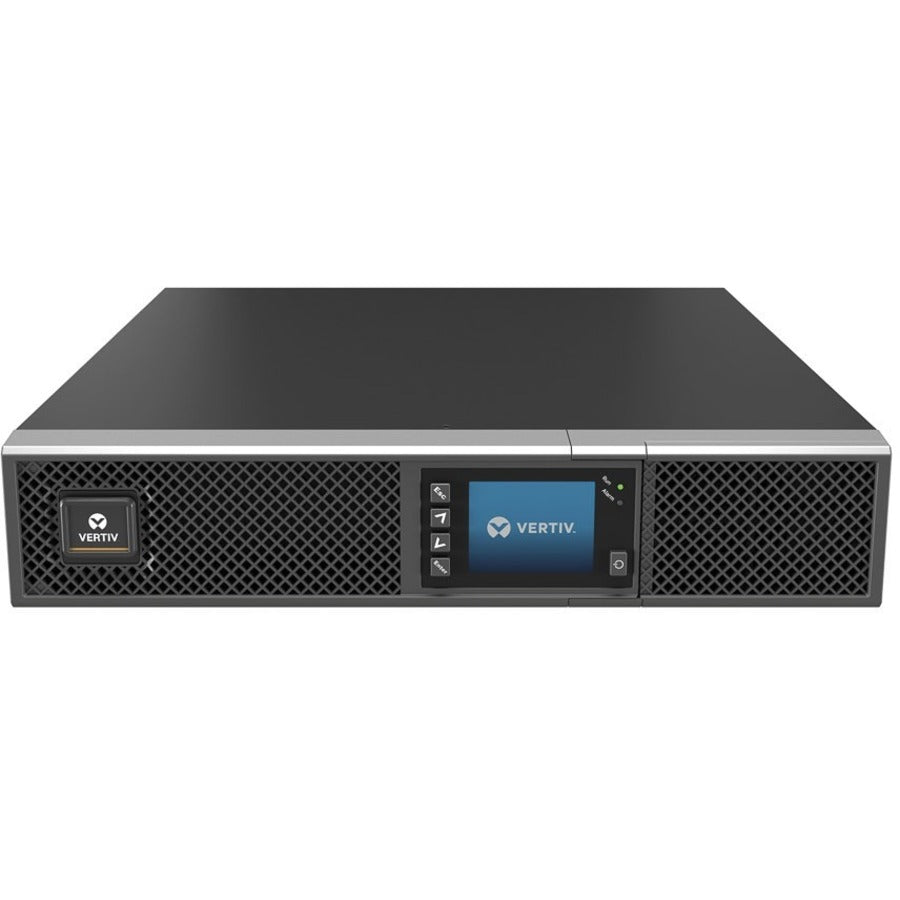

Vertiv GXT5-1500LVRT2UXL Liebert GXT5 UPS - 1500VA/1350W 120V - Black

• Manufacturer: Vertiv
• Brand Name: Vertiv Liebert
• Manufacturer Part Number: GXT5-1500LVRT2UXL
• Product Series: GXT
• Product Name: GXT5 1500VA 120V UPS
• Product Type: Double Conversion Online UPS

• The Vertiv Liebert GXT5 UPS, with a capacity of 1500VA/1350W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 6 x NEMA 5-15R
• Emergency Power OFF: Yes
• Cord Length: 10 ft
• Transfer Time: 0 ns
• Phase: Single Phase
• Application/Usage:
  • IT Equipment
  • Mission Critical Equipment

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 1350 W
• Input Voltage: 120 V AC
• Input Voltage Range: 60 V AC - 150 V AC
• Input Current: 12 A
• Output Voltage: 120 V AC
• Output Current: 1.50 A
• Input Frequency: 70 Hz
• Waveform Type: Pure Sine Wave
• Circuit Breaker: Yes
• User Selectable Output: Typical 120V User Selectable Output: 110/115/120VAC (user-configurable); ±3%
• Utility (AC) Mode Overload:
  • >200% for 250ms
  • 150- 200% for 2 seconds
  • 125- 150% for 50 seconds
  • 105-125% for 60 seconds

• Status Indicators: Color LCD

• Serial Port: Yes
• VGA: No
• Modem (RJ-11): No
• EPO Port: Yes
• USB (HID Compliant) Port: Yes

• Number of Batteries: 3
• Battery Characteristics: Valve-regulated, Non-spillable
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Backup/Run Time (Full Load): 5 Minute
• Backup/Run Time (Half Load): 13 Minute
• Number of External Battery Cabinets: 1
• Backup/Run Time With External Battery Cabinet (Full Load): 25 Minute
• Backup/Run Time With External Battery Cabinet (Half Load): 59 Minute
• Battery Life: 5 Year
• Typical Battery Recharge Time: 3 Hour
• Hot Pluggable: Yes
• Hot Swappable: Yes

• Environmental Sensors:
  • Leak Detection Sensor
  • Temperature Sensor
  • Humidity Sensor
• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: -4°F (-20°C) - 140°F (60°C)
• Maximum Operating Elevation: 9842.52 ft
• Maximum Storage Elevation: 49212.60 ft

• Color Family: Black
• Product Color: Black
• Height: 3.4"
• Width: 16.9"
• Depth: 18.5"
• Rack Height: 2U
• Form Factor: Rack/Tower

• Package Contents:
  • GXT5 1500VA 120V UPS
  • 4 Post Rack Mounting
  • Tower Stand
  • USB Cable
  • User Guide
  • Safety Instruction Manual
• Additional Information:
  • Operating Temperature,°F (°C):+32 to +104 (0 to 40)
  • Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C.
  • Relative Humidity:0% to 95%, non-condensing
  • Audible Noise:
  • <46dBA max @ 3 ft. (1m) front and sides
  • < 43dBA, at 3 ft. (1m) rear
• Certifications & Standards:
  • UL1778, 4th Ed.
  • FCC Part 15 Class A
  • ANSI C62.41 Cat. B
  • ISTA 1A
• Software Included: Free Download - Power Insight 2.2
• Assembly Required: No
• Energy Star: Yes
• Country of Origin: China
• TAA Compliant: No
• Environmentally Friendly: Yes

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS) 2

• Limited Warranty: 3 Year from Vertiv
