Vendor: Viking Electronics

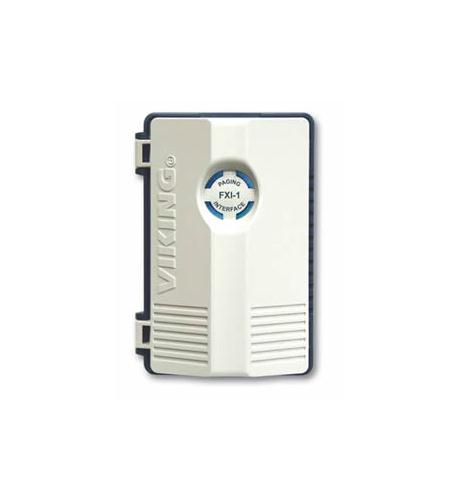

Viking FXI-1A FXO FXS Universal Paging Interface Adapter 30V DC Talk Battery

SKU: TE24a VK-FXI-1A
Regular price $212.00 USD Sale price $212.00 USD
Shipping calculated at checkout.
In stock: 3
20 Years and Counting...

Serving the Business Community for 20 years. Established since May-2003.

Global Shipping

From California to the World.

Order Today. Ship Today.

Orders received by 10 am are shipped on the same business day. Mondays through Saturday.

Questions?

Chat, Text, SMS, Email or Call. We have the answers.

📃

MORE PRODUCT INFORMATION

Viking FXI-1A FXO FXS Universal Paging Interface Adapter 30V DC Talk Battery

  • Viking universal paging interface
  • Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
  • No power supply required in FXS interface mode
  • Up to 6 units can be powered from one adapter in the FXO or VOX mode
  • 30V DC talk battery for interfacing with FXO or unused phone system line input/trunk port
  • Floating 600 ohm paging output with volume control
  • Normally open or closed relay for external paging amp activation or interfacing the paging amp with an external background music source
  • 800 Hz pre-announce page tone (on/off)
  • Compatible with 24 to 48 volt FXS operation
  • Calling party control (CPC) detection for immediate disconnect
  • Busy signal detect disconnect
  • 2.5 to 5 second VOX silence disconnect timer
  • Programmable VOX trigger sensitivity
  • 16 or 36 second default disconnect timer
  • Screw terminal block connections
  • Wall mount housing: (2) #6x3/4 panhead screws included
  • Power: 12-24V DC @ 100mA, 120V AC/12V DC @ 500mA, UL listed adapter included (not required in FXS mode)
  • Dimensions: 111mm x 76mm x 36mm (4.38” x 2.97” x 1.38”)
  • Shipping Weight: .48 kg (1.06 lbs)
  • Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
  • Relay Contacts: 30V DC@1A, 110V DC@0.3A, 125V AC@0.5A
  • VOX Minimum Audio Signal to Activate Relay: -30dbm minimum / -26dbm minimum @ 1KHz with VOX sensitivity switch at normal / lower positions
  • VOX Time Out Disconnect: 2.5 or 5 second
  • Default Time Out Disconnect: 16 or 36 seconds
  • Talk Battery: 30V DC
  • VKFXI1
Features:
  • Paging Adapters and Zone ControllersYes
  • ColorWhite
Environmental features:
  • Energy Star QualifiedNo
Other features:
  • Country of OriginUSA
  • RoHS CompliantYes
  • Type of PackagingWhite Box
  • Warranty2 Year
