Yealink SIP-T58A 16 Line VoIP IP Media Smart Phone 7" Touch LCD BT WF Giga PoE

The Yealink T5 Series are PoE Ready Phones and are Powered by PoE Ethernet. There is no power adapter included. If you require a Power Adapter, please buy from our Ebay Store.

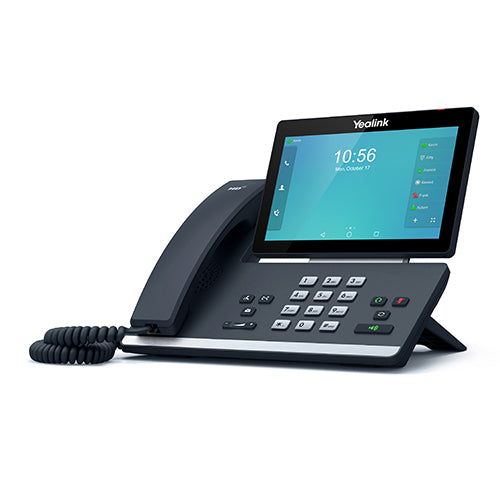

The Yealink SIP-T58A is a simple-to-use smart media phone that provides an enriched HD audio and video calling experience for business professionals. This all-new smart media phone enables productivity-enhancing visual communication with the ease of a standard phone. Based on Android 5.1.1 operating system, the SIP-T58A features a seven-inch adjustable multi-point touch screen, integrated Wi-Fi and Bluetooth 4.0+ EDR, and it is coupled with a built-in web browser, calendar, recorder and more, which also support the installation of third-party applications for business customization. More than that, you can easily turn your SIP-T58A smart media phone into a video phone ready with an optional removable two-megapixel HD camera CAM50. The Yealink SIP-T5 Smart Media Phone Series strikes an exquisite balance between simplicity and sophistication, offering an all-in-one communications solution for today's busy executives, managers and teleworkers.

Features

•     7 inch (1024 x 600) capacitive adjustable touch screen
•     720p30 HD video (with CAM50)
•     Runs Android 5.1.1
•     Built-in Bluetooth 4.0+ for headsets and pairing mobile devices
•     Built-in Wi-Fi (802.11b/g/n)
•     USB 2.0 port (2.0 compliant) for USB headset, media and storage applications
•     Opus Codec support
•     Up to 16 VoIP accounts
•     Up to 5-party audio conferencing
•     Wall mountable (Sold Separately)
•     Color-screen Expansion Module support

Specification

Audio Features

•     HD voice: HD handset, HD speaker
•     Hearing aid compatible (HAC) handset
•     Audio codec: Opus, G.722, G.722.1, G.722.1C, G.711 (A/µ), G.723, G.726, G.729AB, iLBC
•     DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
•     Full-duplex hands-free speakerphone with AEC
•     VAD, CNG, AEC, PLC, AJB, AGC

Video Features (CAM50 Sold Separately)

•     720p@30fps HD video call
•     Video codec: H.264 High Profile, H.264, VP8
•     Yealink CAM50 camera: 2 mega-pixel, plug and play, adjustable, with privacy shutter and LED indicator
•     Vertical tilt angle adjustable: 50°
•     Field of view (FOV): 70.2°
•     Self view (local video preview)

Display and Indicator

•     LCD screen:
  •         7" 1024 x 600 capacitive adjustable touch screen
  •         Vertical tilt angle adjustable: 48°
•     5 points multi-touch surface
•     Screensaver and Wallpaper
•     LED for call and message waiting indication
•     Intuitive user interface with icons and soft keys
•     Multilingual user interface
•     Caller ID with name, number and photo Android bundled Applications

Android Bundled Applications

•     FileManager/Email/Calendar/Camera/Gallery/Recorder/Calculator/Browser/Message
•     Third party Android application support

Phone Features

•     16 VoIP accounts
•     Call hold, call forward
•     Call waiting, call transfer
•     One-touch speed dial, hotline
•     Mute, DND
•     Group listening, emergency call
•     Redial, call return, auto answer
•     Direct IP call without SIP proxy
•     Ring tone select/import/delete
•     Set date time manually or automatically
•     Dial plan, action URL/URI
•     RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
•     Five-party audio conferencing
•     Data import/export via Bluetooth, email, etc.

IP-PBX Features

•     Busy Lamp Field (BLF)
•     Bridged Line Appearance (BLA)
•     Anonymous call, anonymous call rejection
•     Remote office, hot desking, intercom, paging
•     Message Waiting Indicator (MWI)
•     Voice mail, call park, call pickup, music on hold
•     Call completion, call recording

Directory

•     Local phonebook up to 1000 entries
•     Black list
•     XML/LDAP remote phonebook
•     Smart dialing
•     Phonebook search/import/export
•     Call history: dialed/received/missed/forwarded

Feature keys

•     27 one-touch DSS keys
•     8 feature keys: hold, transfer, message, headset, mute, redial, speakerphone, volume
•     Illuminated mute/headset/hands-free speakerphone key Interface

Interface

•     Dual-port Gigabit Ethernet
•     Power over Ethernet (IEEE 802.3af), class 3
•     Built-in Wi-Fi (2.4GHz, 802.11b/g/n)
•     Built-in Bluetooth 4.0+ EDR for
•         Bluetooth headsets (Sold Separately)
•         Pairing mobile devices (Sold Separately)
•     1 x USB 2.0 port (on the top of the phone) for:
•         Yealink CAM50 camera (Not Included - Sold Separately)
•     1 x USB 2.0 port (on the rear of the phone) for optional:
•         USB flash drive (Sold Separately)
•         Wired/wireless USB headset  (Sold Separately)
•         Color-screen expansion modules  (Sold Separately)
•     1 x Security lock port
•     1 x RJ9 (4P4C) handset port
•     1 x RJ9 (4P4C) headset port
•     Supports up to 3 color-screen expansion modules Management

Management

•     Configuration: browser/phone/auto provision
•     Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment
•     Auto-provision with PnP, Zero-sp-touch, TR-069
•     Phone lock for personal privacy protection
•     Reset to factory, reboot
•     Package tracing export, system log
•     T56A&T58A&T58V unified firmware and common.cfg file
•     Only the administrator can install/uninstall apps via auto-provisioning
•     Setup Assistant wizard Network and Security

Network and Security

•     IPv4/IPv6
•     SIP v1 (RFC2543), v2 (RFC3261)
•     Call server redundancy supported
•     NAT traversal: STUN mode
•     Proxy mode and peer-to-peer SIP link mode
•     IP assignment: static/DHCP/PPPoE
•     HTTP/HTTPS web server
•     Time and date synchronization using SNTP
•     UDP/TCP/DNS-SRV (RFC 3263)
•     QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
•     SRTP
•     Transport Layer Security (TLS)
•     HTTPS certificate manager
•     AES encryption for configuration file
•     Adb encryption authenticated
•     Digest authentication using MD5/MD5-sess
•     OpenVPN, IEEE802.1X

Other Physical Features

•     Wall mountable (Optional - Sold Separately)
•     External Yealink AC adapter (Optional - Sold Separately): AC 100~240V input and DC 5V/2A output
•     Power consumption (PSU): 1.5W-4.5W
•     Power consumption (PoE): 2.3W-6.0W
•     Dimension (W*D*H*T):
•     259.4mm*220mm*215mm*42.6mm
•     Operating humidity: 10~95%
•     Operating temperature: -10~40°C (+14~104°F)
