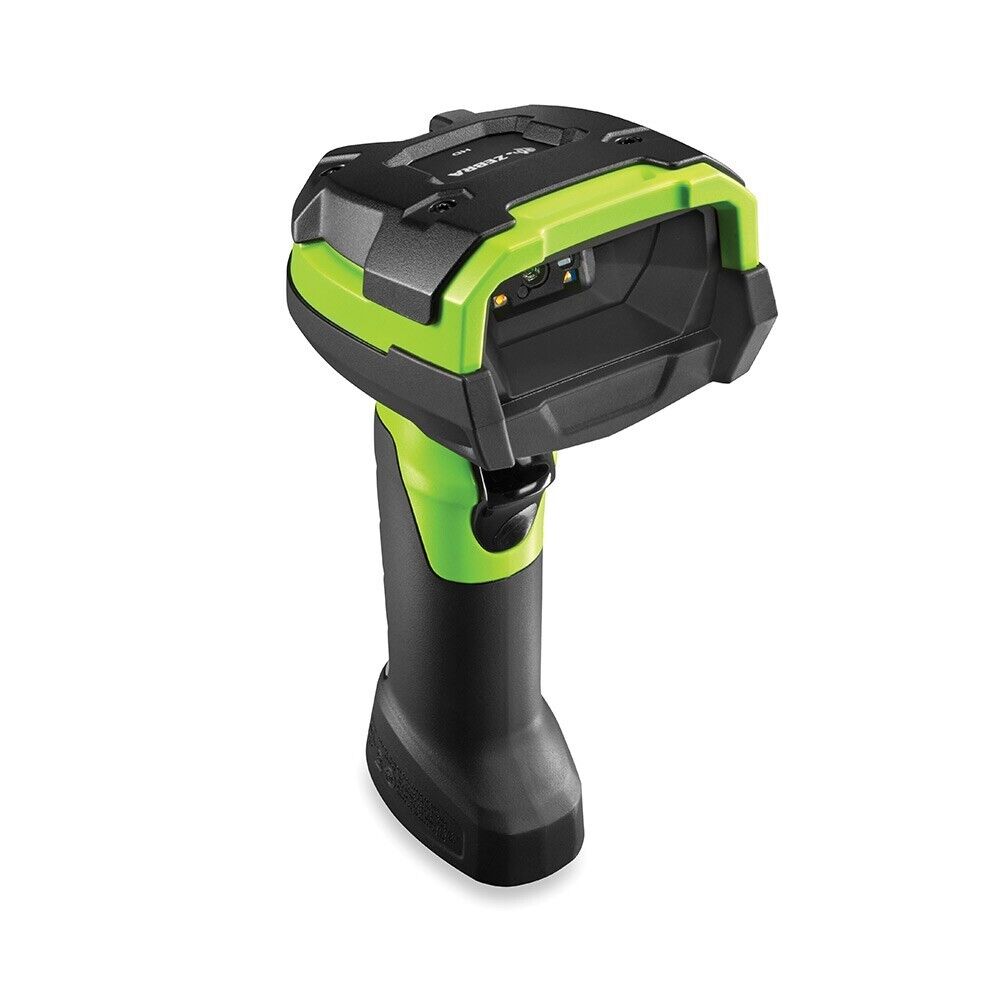

Zebra DS3608-SR3U4600VZW 3600 Rugged HandHeld USB Corded Barcode Scanner Kit

General Information

• Product Type: Barcode Scanner Kit
• Manufacturer Part Number: DS3608-SR3U4600VZW
• Manufacturer: Zebra Technologies Corporation
• Product Model: DS3608-SR
• Product Name: DS3608-SR Barcode Scanner Kit
• Product Series: 3600
• Brand Name: Zebra

Technical Information

• Host Interface: USB
• Connectivity: Wired USB
• Scanning Distance: 59.06"
• Drop Specification: Withstands multiple 8.0 ft./2.4 m drops to concrete
• Image Sensor Type: Imager
• Cable Type Included: USB
• Scanning Capability: 1D, 2D
• Field of View (Horizontal): 42°
• Field of View (Vertical): 28°
• Reading Angle (Skew): 60°
• Reading Angle (Pitch): 60°
• Reading Angle (Roll): 360°
• Minimum Print Contrast: 15%
• Minimum Element Resolution (DataMatrix): 7.5 mil
• Maximum Element Resolution (DataMatrix): 10 mil

Barcode Symbology Supported:

• 1D:
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)
• 2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
  • DotCode
• Digimarc: Digital watermark technology
• IUID Support: Supports IUID parsing, the ability to read and separate IUID fields per application requirements

Physical Characteristics

• Weight (Approximate): 10.80 oz
• Form Factor: Handheld
• Height: 7.3"
• Width: 3"
• Depth: 5.2"
• Product Color: Industrial Green
• Color Family: Green
• Rugged: Yes

Application/Usage: Industrial

• Manufacturing
• Warehouse
• Retail

Country of Origin: China
